17. Configuration Example: IPSec & PPTP VPN
AirLive RS-2500 User’s Manual 140
STEP 2. Enter the following setting in Trunk of VPN function: (Figure 17-88)
 Enter a specific Trunk Name, for example PPTP_Client.
 From Local: Select LAN
 From Local Subnet / Mask: Enter 192.168.20.0 / 255.255.255.0.
 To Remote: Select To Remote Subnet / Mask.
 To Remote Subnet / Mask: Enter 192.168.10.0 / 255.255.255.0.
 IPSec / PPTP Setting: Select PPTP_Client_jacky.
 Select Show remote Network Neighborhood.
 Click OK. (Figure 17-89)

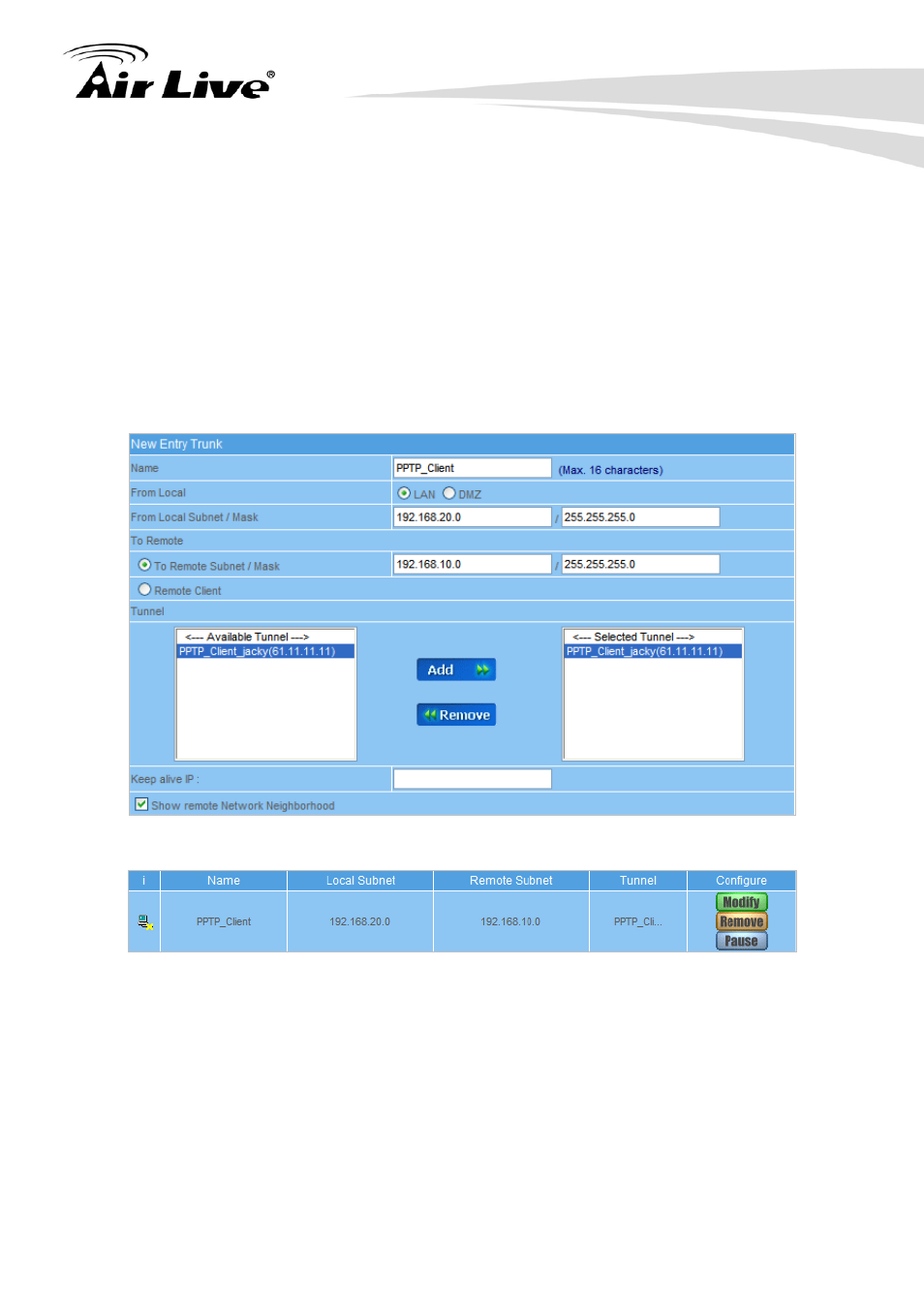

Figure 17-88 New Entry Trunk Setting
Figure 17-89 Complete New Entry Trunk Setting
