7. Interface
AirLive RS-2500 User’s Manual
38
7
7.
Interface
In this chapter, you can set up the IP addresses for the office network, and you may also
configure the IP addresses of the LAN network, the WAN1 and WAN2 network, and the
DMZ network.
The Netmask and gateway IP addresses are also configured in this chapter.

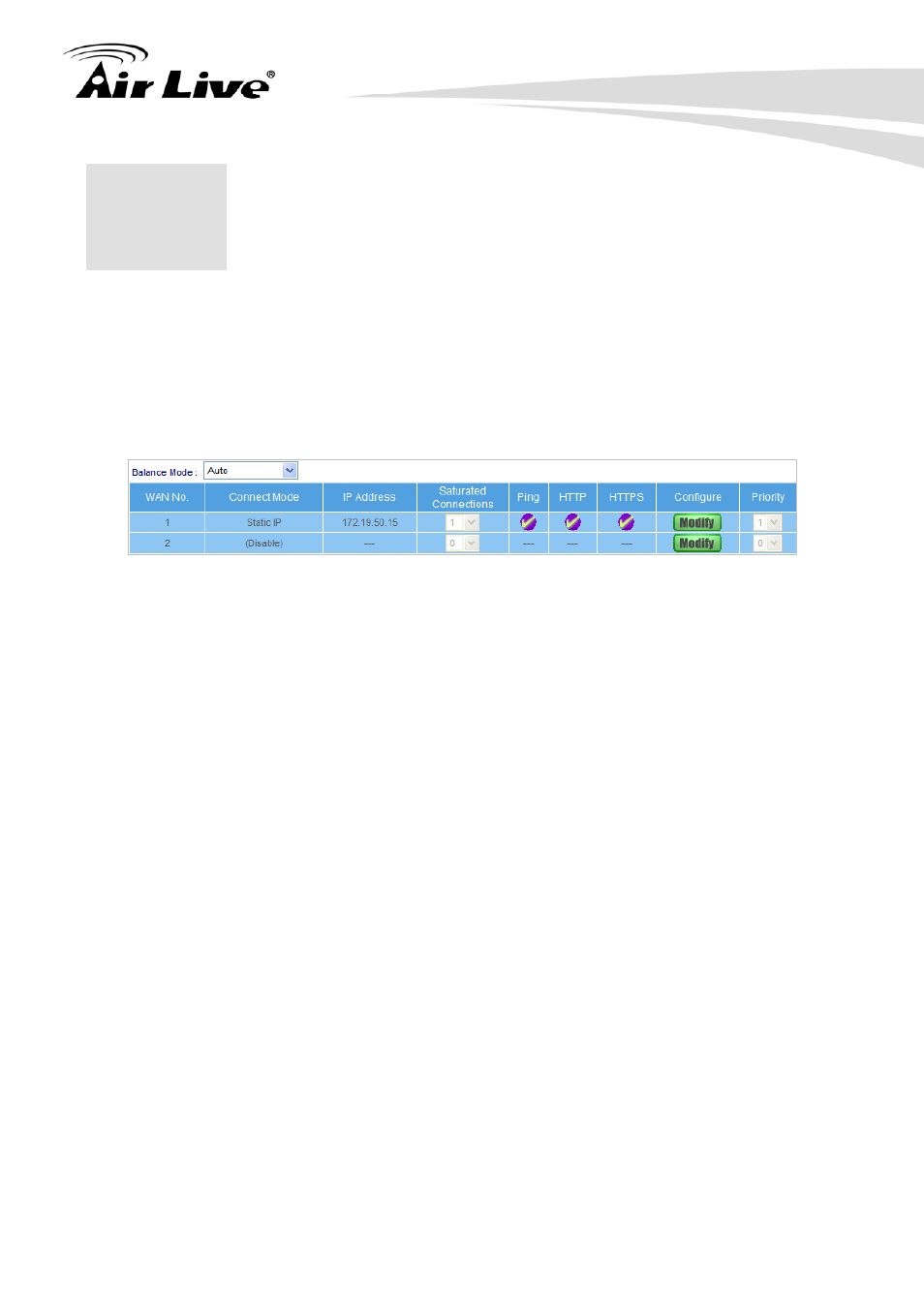

Define the required fields of Interface
LAN: Using the LAN Interface, the Administrator can set up the LAN network of
RS-2500
WAN: The System Administrator can set up the WAN network of RS-2500.
Connection Test: The function works to identify WAN port’s connection
status. The testing ways are as following:
ICMP：User can define the IP address and RS-2500 will ping the
address to verify WAN port’s connection status.
DNS：Another way to verify the connection status by checking the
DNS server and Domain Name configured by user.
Upstream/Downstream Bandwidth: The System Administrator can set
up the correct Bandwidth of WAN network Interface here.
Auto Disconnect: The PPPoE connection will automatically disconnect
after a length of idle time (no activities). Enter “0” means the PPPoE
connection will not disconnect at all.
DMZ: The Administrator uses the DMZ Interface to set up the DMZ network.
NAT Mode：In this mode, the DMZ is an independent virtual subnet. This
virtual subnet can be set by the Administrator but cannot be the same as
LAN Interface
Transparent Mode: In this mode, the DMZ and WAN Interface are in the
same subnet
