17. Configuration Example: IPSec & PPTP VPN
133 AirLive RS-2500 User’s Manual
 Subnet Mask: 255.255.255.0
 ESP Encryption: 3DES
 ESP Authentication: MD5
 ESP Mode: Tunnel
 PFS: Enable, Group 1
 Press “Save & Apply” button save Phase 2 setting.

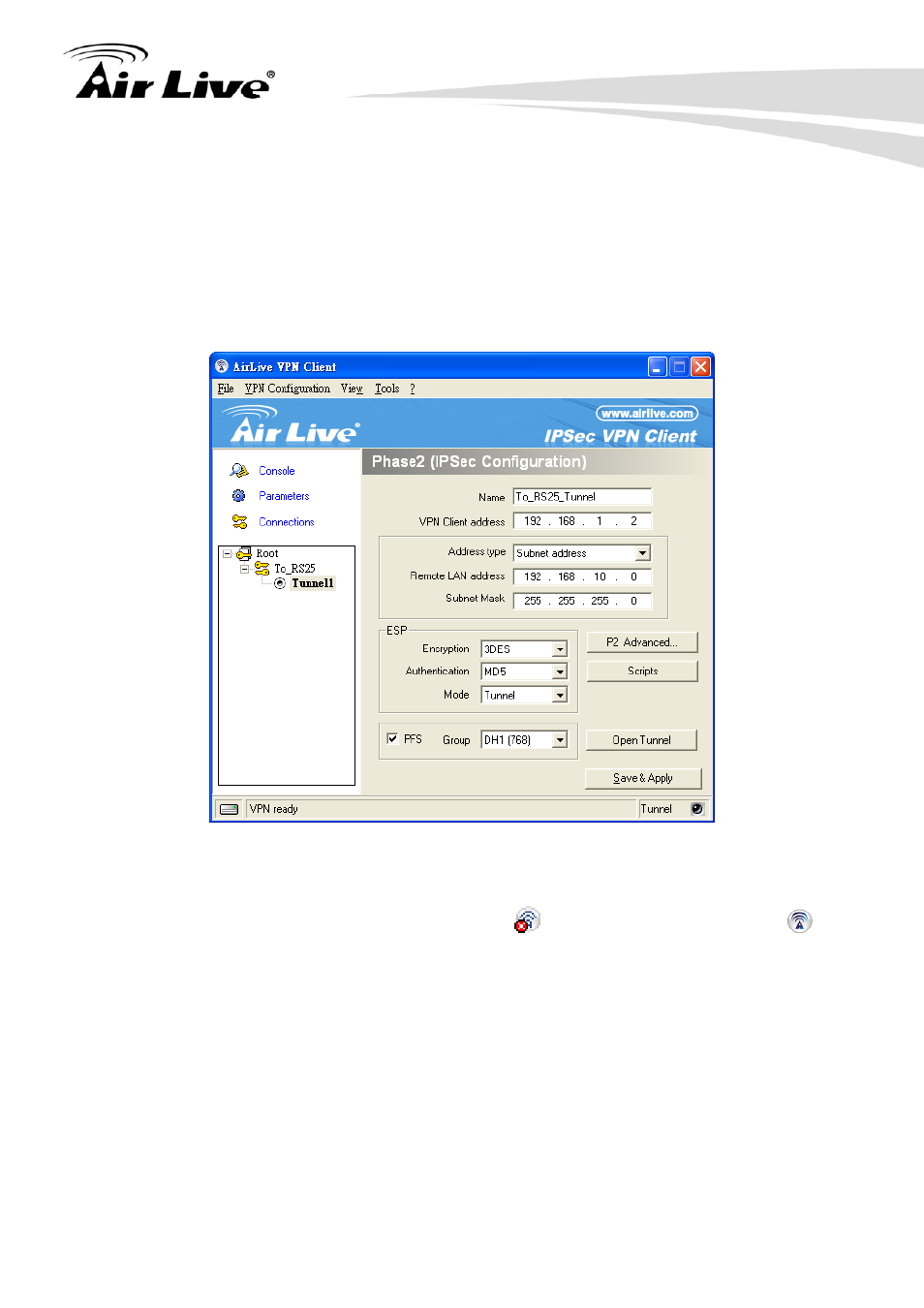

Figure 17-75 Phase2 setting of IPSec VPN Client Software
STEP 5 ﹒ Press “Open Tunnel” to build up IPSec VPN connection.
STEP 6 ﹒ When VPN Tunnel is established, the icon in tool bar will be changed to .
