 Configuration Example - PAT
RS-2500 also supports Port Address Translation function. Some system administrator
might change the standard port number of service in order to protect LAN server, and
RS-2500 must translate the port so Internet user can access LAN service as well.
STEP 1 ﹒ Create a Web server on LAN site, and specify IP address 192.168.1.10 to the
server.
STEP 2 ﹒ Policy Object  Address  LAN: Enter the following setting in LAN of Address
function. (Figure15-16)

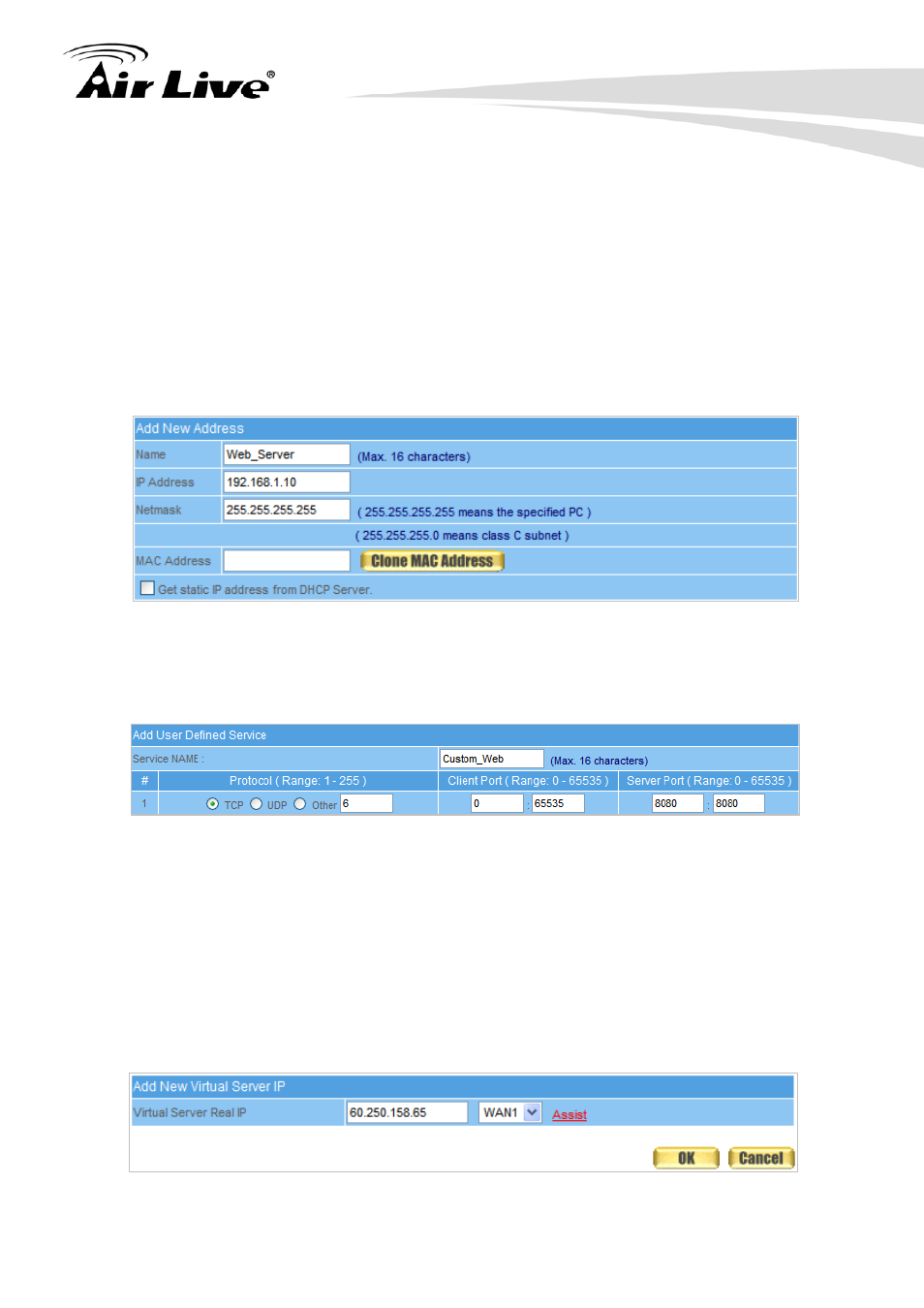

Figure 15-16 Setting LAN Address WebUI
STEP 3 ﹒ Policy Object
 Service  Custom: Create Custom Service (TCP 8080) for
Web Server. (Figure 15-17)
Figure 15-17 Add Custom Service
STEP 4 ﹒ Policy Object
 Virtual Server  Server 1: Enter the following data in Server1
of Virtual Server
 Click the button next to Virtual Server Real IP (“click here to configure”) in
Server1
 Virtual Server Real IP: Enter 60.250.158.65 (click Assist for assistance)
 Click OK (Figure 15-18)
Figure 15-18Virtual Server Real IP Setting
