22. Monitor
AirLive RS-2500 User’s Manual 208
 Configuration Exam
STEP 1 ﹒ Select to enable the items for Inbound Accounting Report in Setting of
Accounting Report function. (Figure 22-21)
ple - Inbound Accounting Report

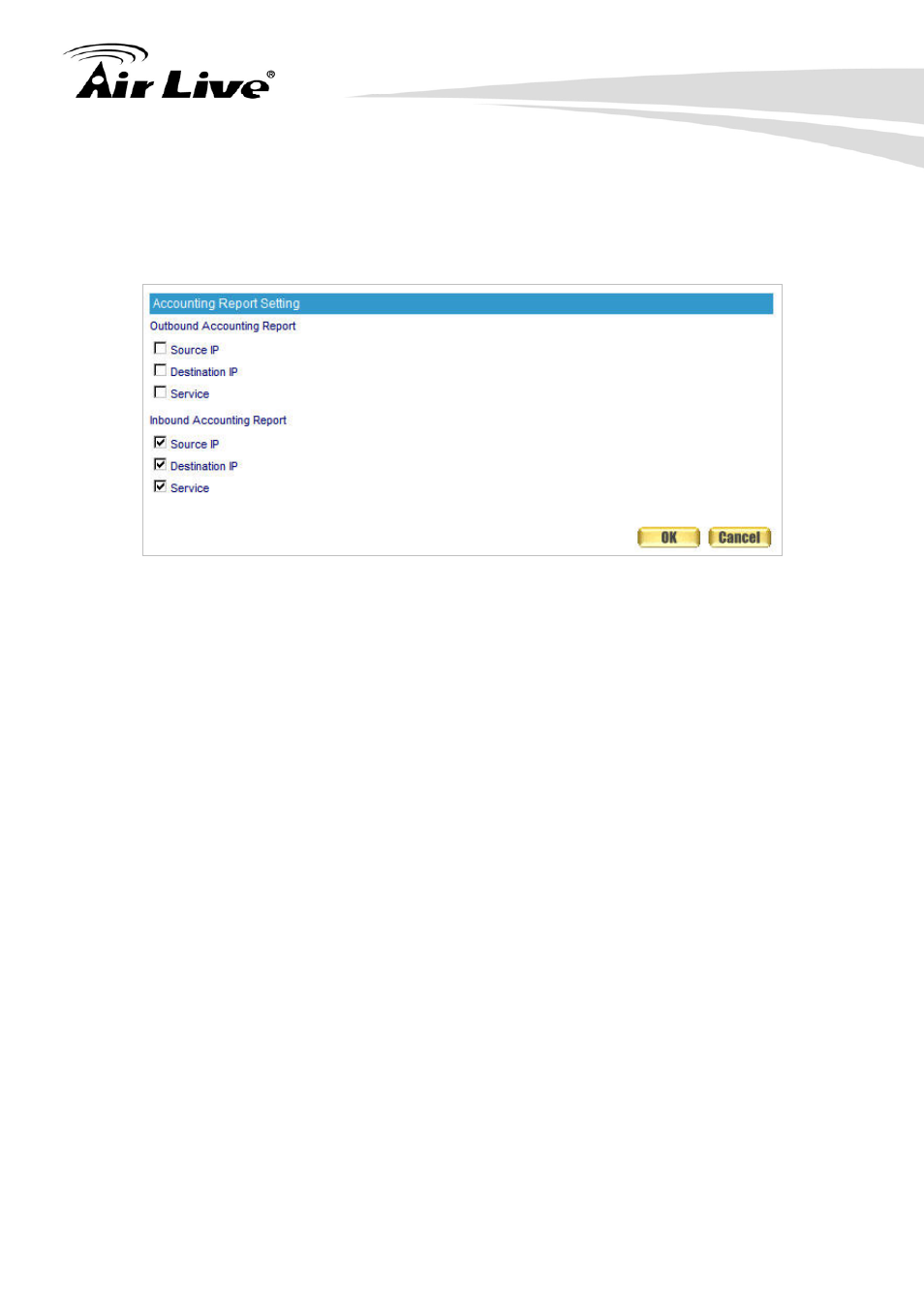

Figure 22-21 Accounting Report Setting
STEP 2 ﹒ Enter Inbound in Accounting Report and select Top Users to inquire the
statistics of Send/Receive packets, Downstream/Upstream, First packet / Last
packet / Duration from the WAN user to pass the RS-2500.
 TOP：S
ge.
 Source IP：To display the report sorted by Source IP, the IP address used by WAN
user connecting to RS-2500.
 Dow stream：Th
AN user
which passes through RS-2500 to LAN service server.
 Upstream：The percentage of Upstream and the value of each LAN service server
whi
 First P ,
the sent time will be recorded by the RS-2500.
 Last Packet：When the last packet is sent from LAN service server to WAN users,
the sent time will be recorded by the RS-2500.
 Duration：The period of time starts from the first packet to the last packet to be
recorded.
 Total Traffic：The RS-2500 will record and display the amount of Downstream and
Upstream packets passing from WAN users to LAN service server.
elect the data you want to view. It presents 10 pages in one pa
n e percentage of Downstream and the value of each W
ch passes through RS-2500 to WAN users.
acket：When the first packet is sent from WAN users to LAN service server
