6. Configure
33 AirLive RS-2500 User’s Manual
6.4 Route Table
Route Table works to connect RS-2500 with another router, and make those users with
different IP subnet can access Internet at the same time. (Figure 6-10, 11)

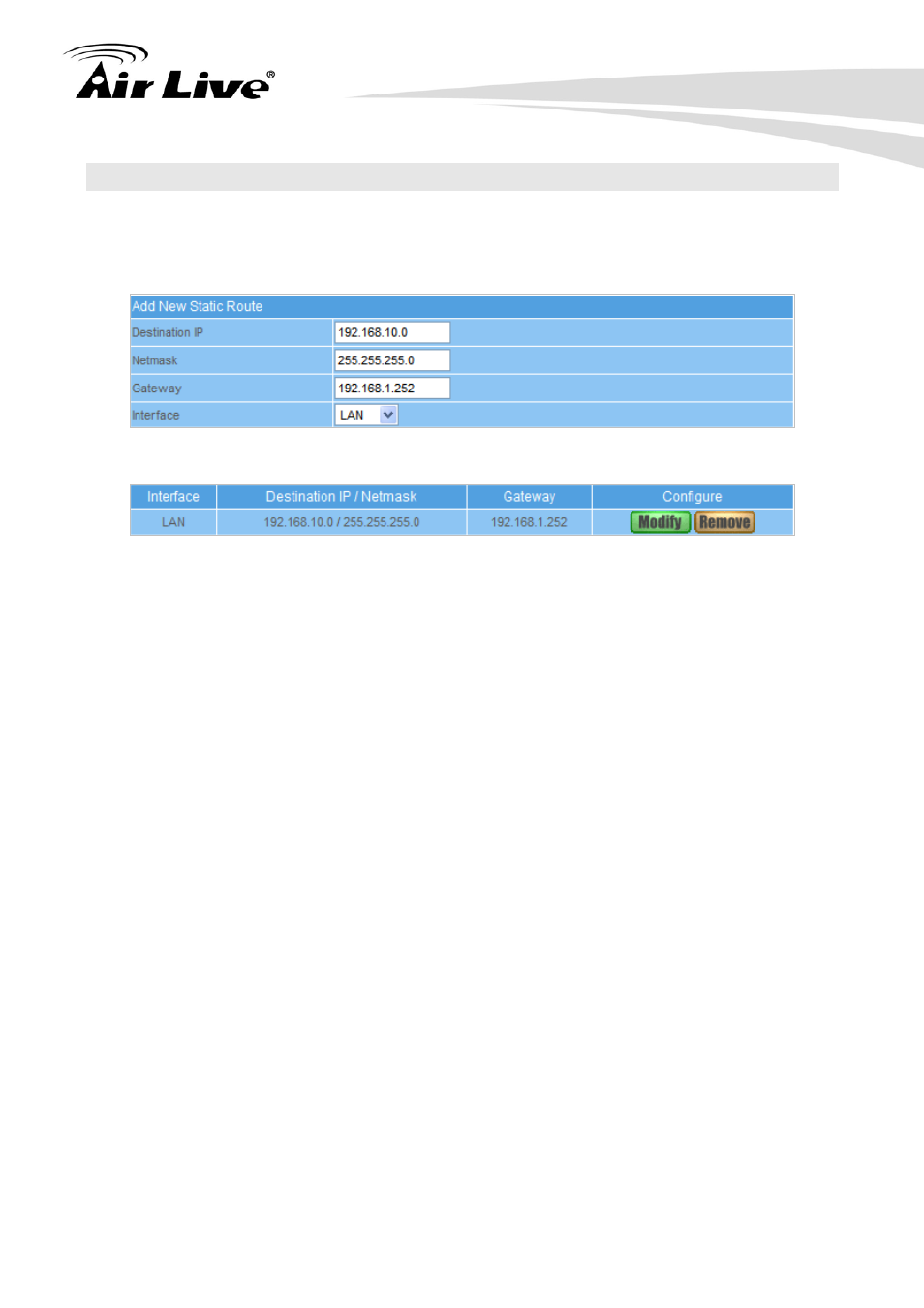

Figure 6-10 Route Table UI
Figure 6-11 Route Table UI
 Destination IP / Netmask
 The target IP subnet of routing rule
 Gateway
 Indicate the IP address of router that will route packets to target subnet
 Interface
 Indicate the interface to send out the routing packets
