22. Monitor
205 AirLive RS-2500 User’s Manual

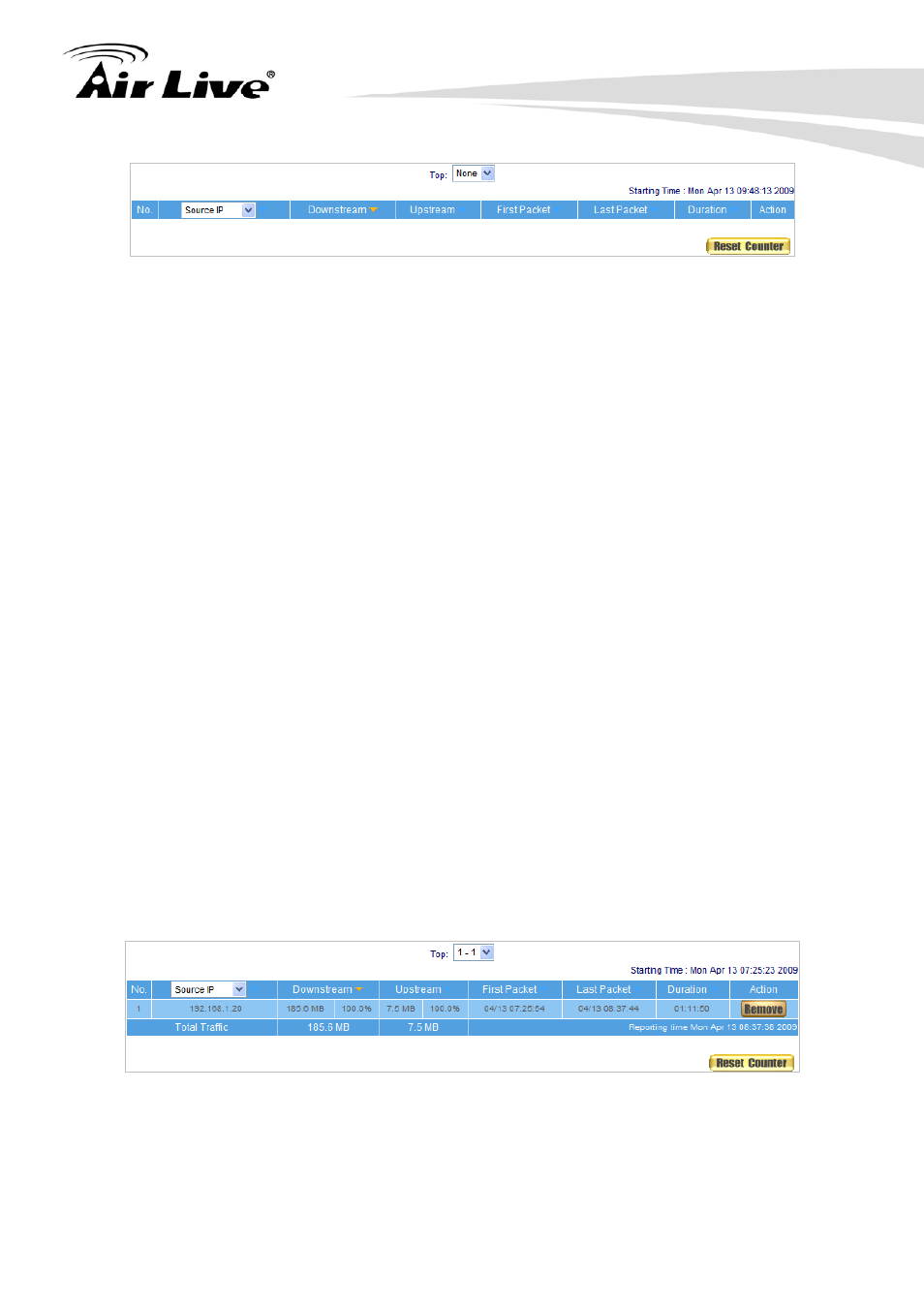

Figure 22-17 Outbound Source IP Statistics Report
STEP 3 ﹒ Enter Outbound in Accounting Report and select Destination IP to inquire the
statistics of Send/Receive packets, Downstream/Upstream, First packet/Last
packet/Duration from the WAN Server to pass the RS-2500. (Figure 22-18)
 TOP：Select the data you want to view; it presents 10 results in one page.
 Destination IP：To display the report sorted by Destination IP, the IP address used
by WAN service serve
 Downstream：The percentage of downstream and the value of each WAN service
hen the first packet is sent from WAN service server to LAN users,
n to refresh Accounting Report.
r connecting to RS-2500.
server which passes through RS-2500 to LAN user.
 Upstream：The percentage of upstream and the value of each LAN user who passes
through RS-2500 to WAN service server.
 First Packet：W
the sent time will be recorded by the RS-2500.
 Last Packet：When the last packet from LAN user is sent to WAN service server, the
sent time will be recorded by the RS-2500.
 Duration：The period of time between the first packet and the last packet.
 Total Traffic：The RS-2500 will record and display the amount of Downstream and
Upstream packets passing from WAN Server to LAN user.
 Reset Counter：Click Reset Counter butto
Figure 22-18 Outbound Destination IP Statistics Report
