17. Configuration Example: IPSec & PPTP VPN

AirLive RS-2500 User’s Manual

122

 RS-2500 configuration of Company B:

STEP 1.

Enter the default IP of Gateway of Company B’s RS-2500, 192.168.30.1 and select

IPSec Autokey in VPN. Click New Entry. (Figure 17-45)

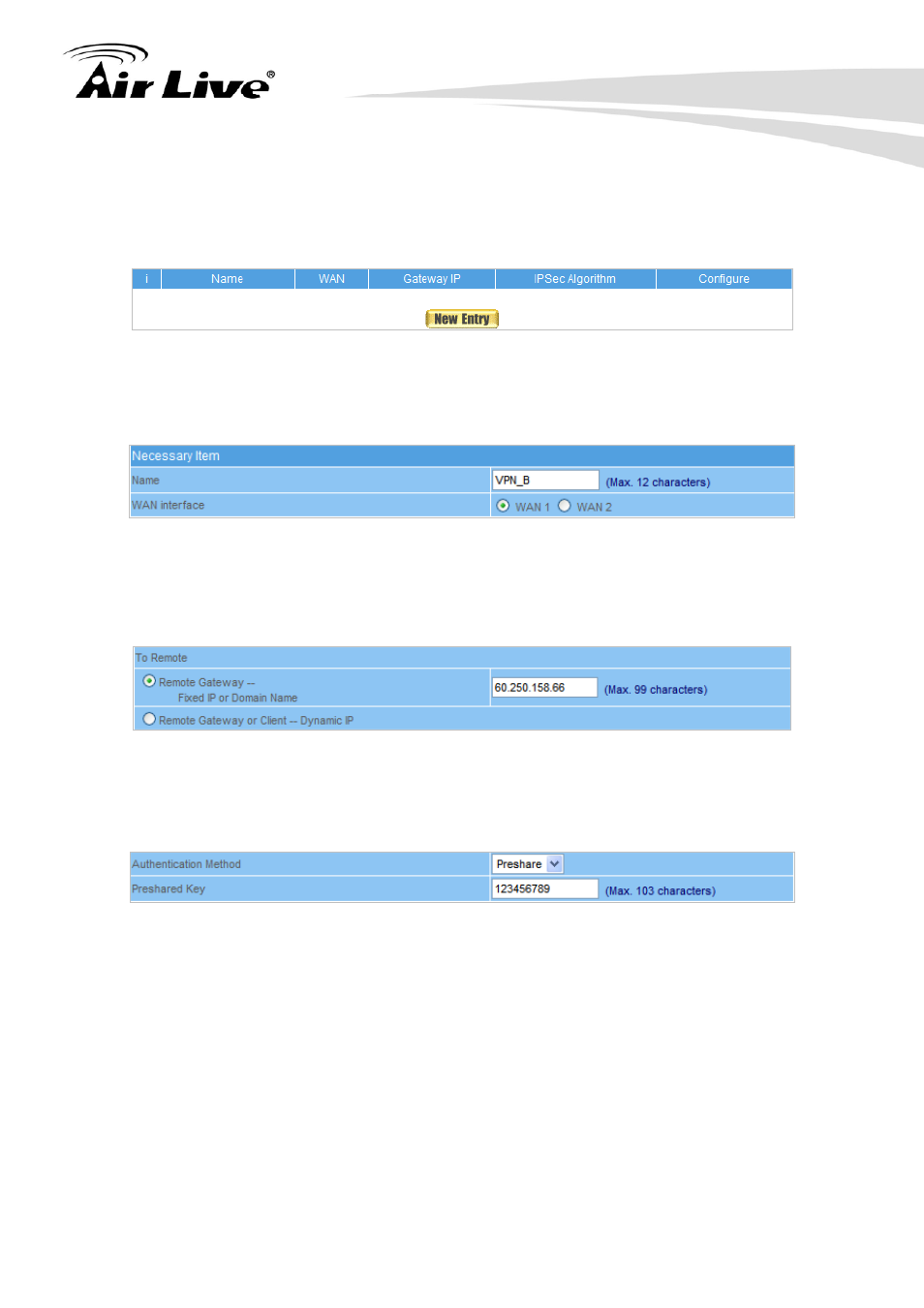

Figure 17-45 IPSec Autokey Web UI

STEP 2.

In the list of IPSec Autokey, fill in Name with VPN_B. (Figure 17-46)

Figure 17-46 IPSec Autokey Name Setting

STEP 3.

Select Remote Gateway-Fixed IP or Domain Name In To Remote list and enter

the IP Address.(Figure 17-47)

Figure 17-47 IPSec To Destination Setting

STEP 4.

Select Preshare in Authentication Method and enter the Preshared Key (max:

100 bits) (Figure 17-48)

Figure 17-48 IPSec Authentication Method Setting
