17. Configuration Example: IPSec & PPTP VPN
AirLive RS-2500 User’s Manual 128

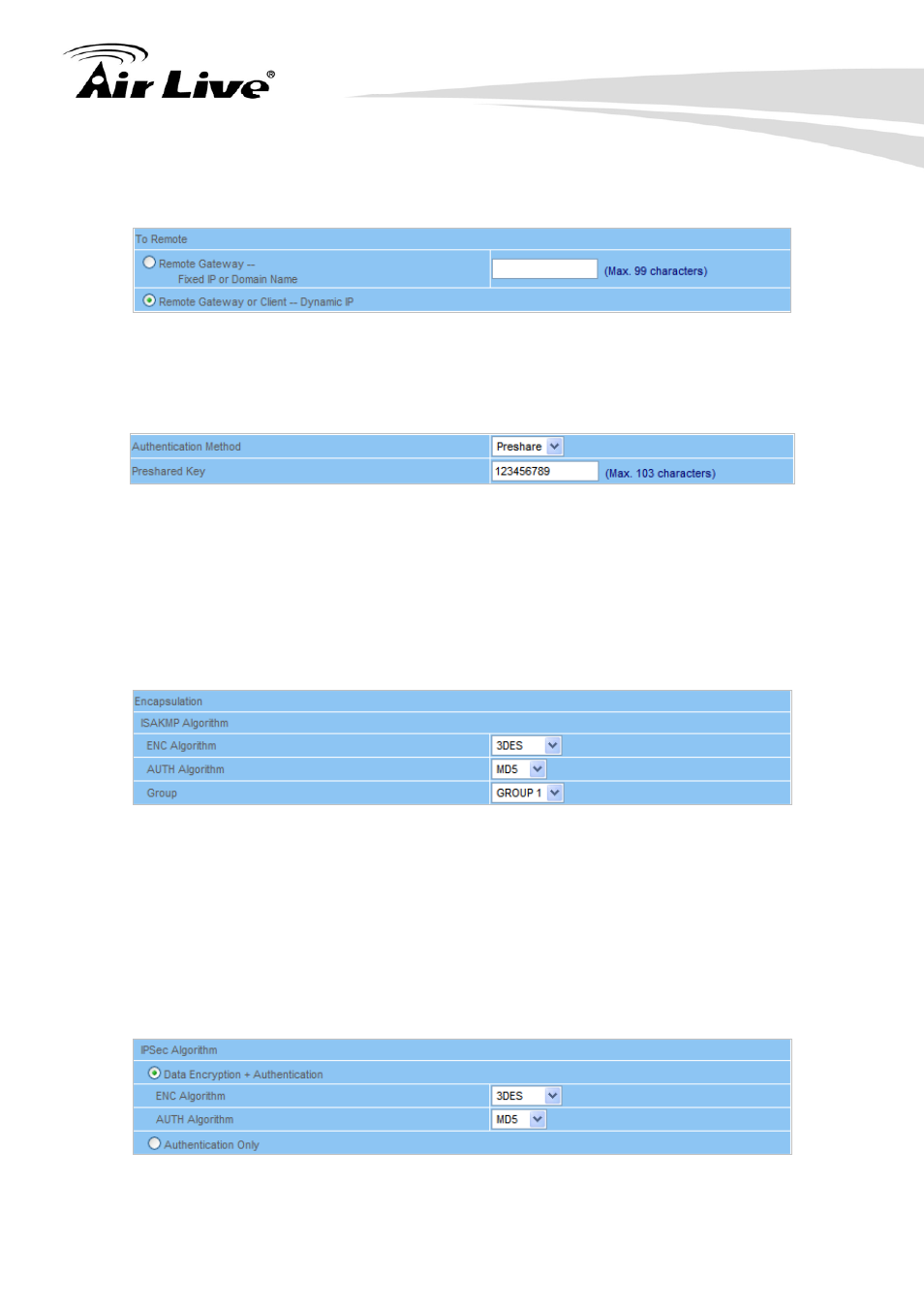

STEP 3 ﹒ Select Remote Gateway or Client -- Dynamic IP in To Remote list.
(Figure 17-62)
Figure 17-62 IPSec To Remote Setting
STEP 4
﹒
Select Preshare in Authentication Method and enter the Preshared Key
(Figure 17-63)
Figure 17-63 IPSec Authentication Method Setting
STEP 5 ﹒ Select ISAKMP Algorithm in Encapsulation list. Choose the Algorithm when
setup connection. Please select ENC Algorithm (3DES/DES/AES), AUTH
Algorithm (MD5/SHA1), and Group (GROUP1, 2, 5). Both sides have to choose
the same group. Here we select 3DES for ENC Algorithm, MD5 for AUTH
Algorithm and GROUP1 for Group. (Figure 17-64)
Figure 17-64 IPSec Encapsulation Setting
STEP 6 ﹒ You can choose Data Encryption + Authentication or Authentication Only to
communicate in IPSec Algorithm list.
 ENC Algorithm: 3DES/DES/AES/NULL
 AUTH Algorithm: MD5/SHA1
Here we select 3DES for ENC Algorithm and MD5 for AUTH Algorithm to make
sure the encapsulation way for data transmission (Figure 17-65)
Figure 17-65 IPSec Algorithm Setting
