19. Configuration Example: Policy
AirLive RS-2500 User’s Manual 170
STEP 4 ﹒ Enter the following in WAN to DMZ Policy:
 Click
New Entry
 Destination Address: Select Virtual Server1 (61.11.11.12)
 Service: Select FTP (21)
 QoS: Select FTP_QoS
 MAX. Concurrent Sessions: Enter 100
 Click OK (Figure 19-25)

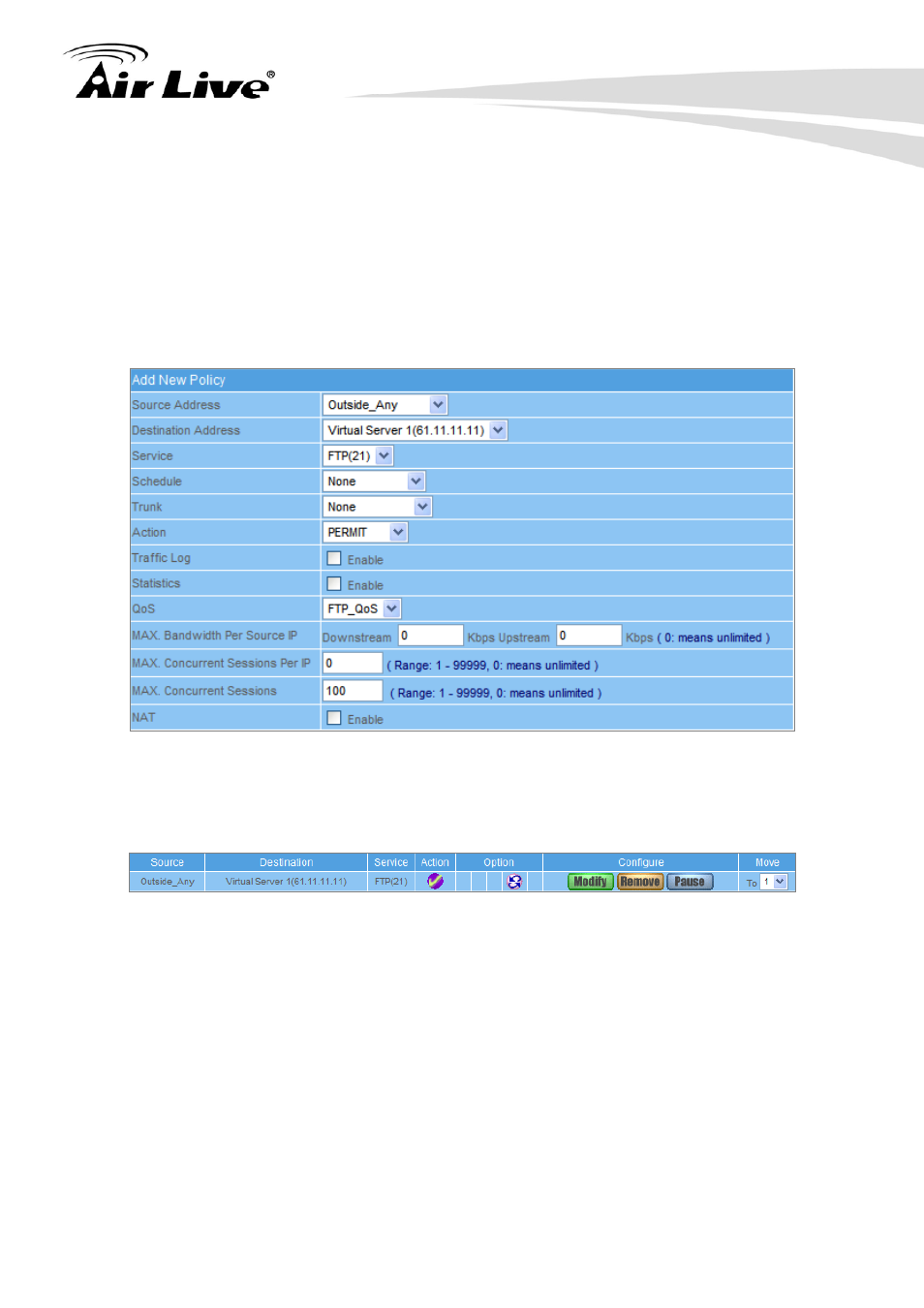

Figure 19-25 Add New Policy
STEP 5 ﹒ Complete the policy of restricting the external users to access to internal network
server (which may occupy the resource of network) (Figure 19-26)
Figure 19-26 Complete the Policy Setting
