17. Configuration Example: IPSec & PPTP VPN
123 AirLive RS-2500 User’s Manual

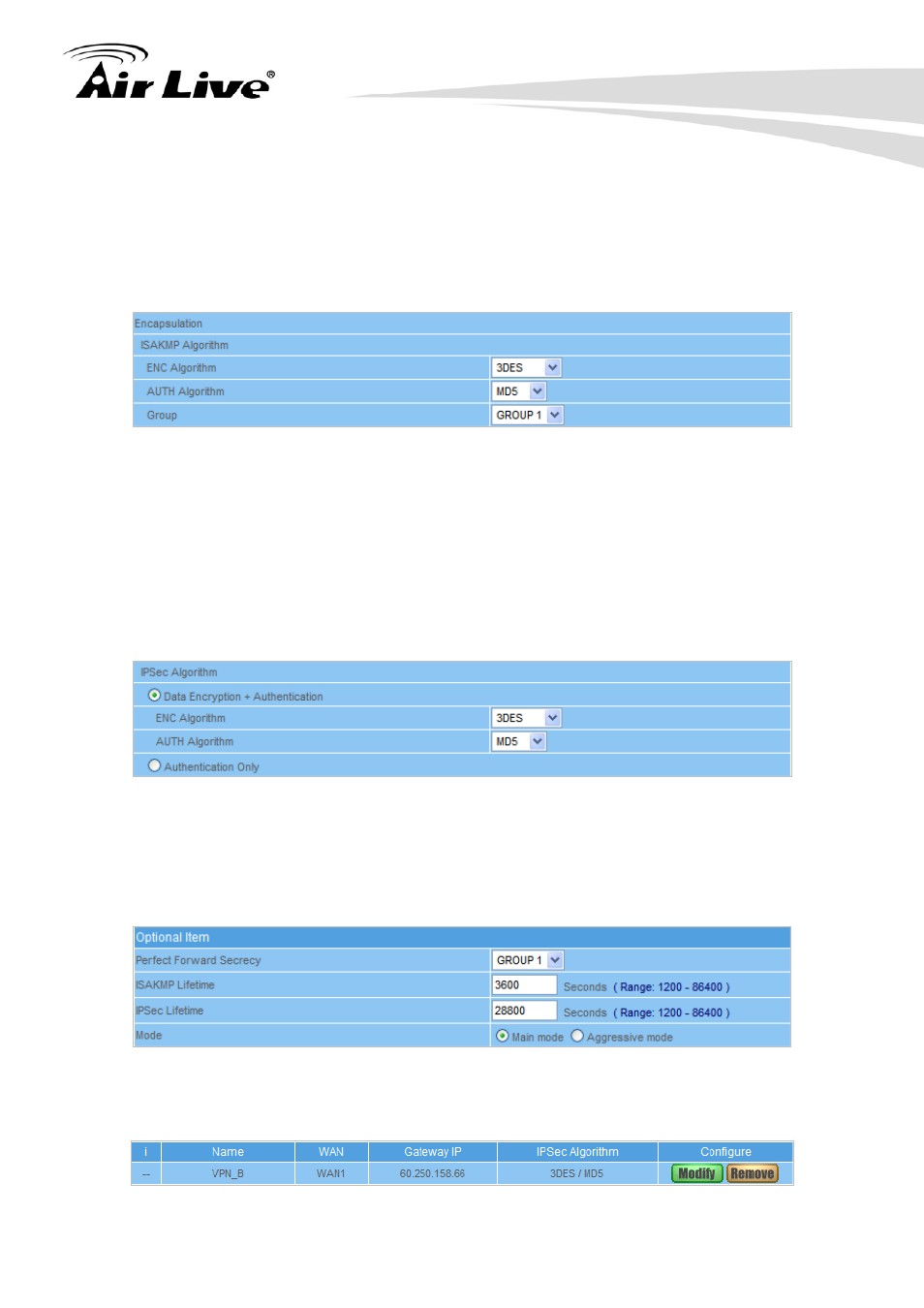

STEP 5. Select ISAKMP Algorithm in Encapsulation list. Choose the Algorithm when
setup connection. Please select ENC Algorithm (3DES/DES/AES), AUTH
Algorithm (MD5/SHA1), and Group (GROUP1, 2, 5). Both sides have to choose the
same group. Here we select 3DES for ENC Algorithm, MD5 for AUTH Algorithm,
and GROUP1 for group. (Figure 17-49)
Figure 17-49 IPSec Encapsulation Setting
STEP 6. You can choose Data Encryption + Authentication or Authentication Only to
communicate in IPSec Algorithm list.
 ENC Algorithm: 3DES/DES/AES/NULL
 AUTH Algorithm: MD5/SHA1
Here we select 3DES for ENC Algorithm and MD5 for AUTH Algorithm to make
sure the encapsulation way for data transmission. (Figure 17-50)
Figure 17-50 IPSec Algorithm Setting
STEP 7. After selecting GROUP1 in Perfect Forward Secrecy, enter 3600 seconds in
ISAKMP Lifetime, enter 28800 seconds in IPSec Lifetime, and selecting Main
mode in Mode. (Figure 17-51)
Figure 17-51 IPSec Perfect Forward Secrecy Setting
STEP 8. Complete the IPSec Autokey setting. (Figure 17-52)
Figure 17-52 Complete Company B IPSec Autokey Setting
