17. Configuration Example: IPSec & PPTP VPN
117 AirLive RS-2500 User’s Manual
17.2 IPSec VPN - Office to Office (2)
Preparation:
Company A - RS-2500 - WAN IP: 60.250.158.66, LAN IP: 192.168.10.x
Company B -
1. PPPoA Modem Router - WAN IP: PPPoA with DDNS service enabled
(airlive15.dyndns.org), LAN IP: 192.168.20.x
2. RS-2500 - WAN IP: 192.168.20.254, LAN IP: 192.168.30.x
This example takes two RS-2500s as work platform. The Company B of RS-2500 is
installed behind a PPPoA modem router and the WAN interface is set to private IP address.
So, the RS-2500 in Company B can create an IPSec VPN tunnel to RS-2500 in Company A.
(Figure 17-30)

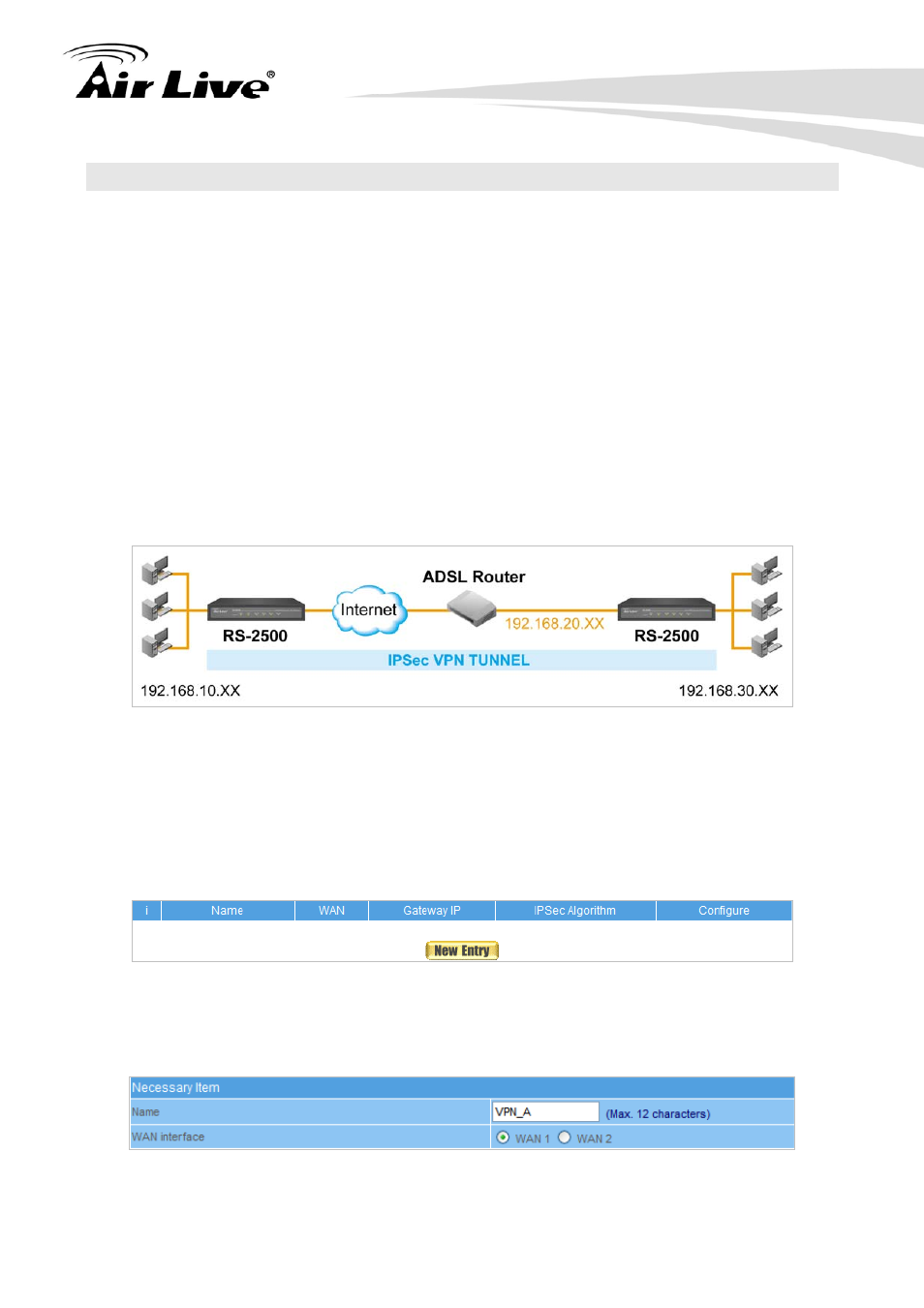

Figure 17-30 Example 2 Topology
 RS-2500 configuration of Company A:
STEP 1 ﹒ Enter the default IP of Gateway of Company A’s RS-2500 with 192.168.10.1, and
select IPSec Autokey in VPN. Click New Entry. (Figure 17-31)
Figure 17-31 IPSec Autokey WebUI
STEP 2 ﹒ In the list of IPSec Autokey, fill in Name with VPN_A. (Figure 17-32)
Figure 17-32 IPSec Autokey Name Setting
