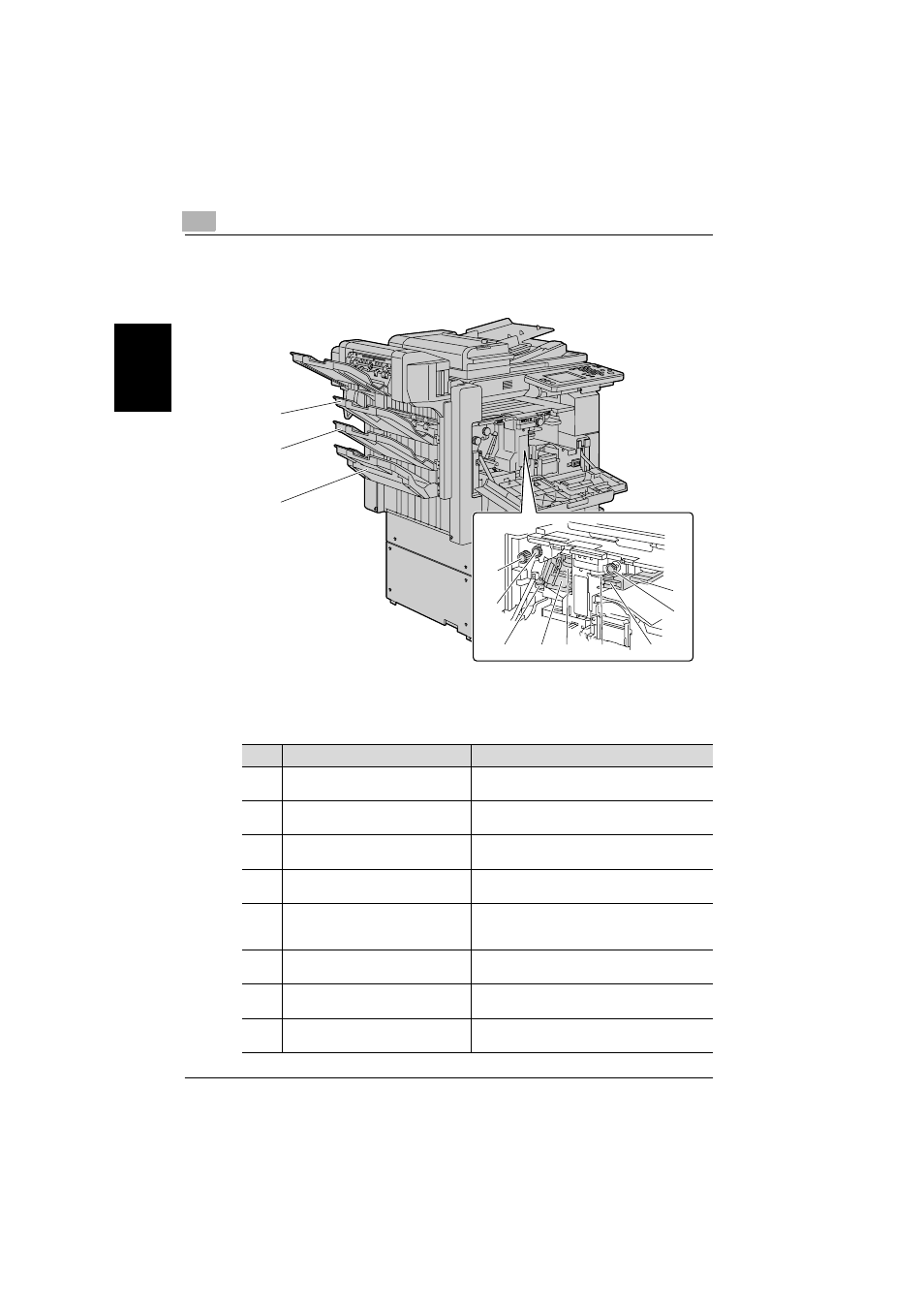

Chapter 2
Finisher FS-530/Output Tray OT-602/Punch Unit PU-501
Finisher FS-530
No. Part name Description
1 Output tray 2
(elevated tray) Collects copies that are fed out
2 Output tray 1
(non-sorted copy tray) Collects copies that are fed out
3 Lever FN1 Lowered when clearing paper misfeeds within
the finisher
4 Dial FN2 Turned when clearing paper misfeeds within the
finisher
5 Hole-punch waste container Removed when emptying hole-punch waste
that has accumulated from using the punch set-
tings
6 Lever FN3 Lowered when clearing paper misfeeds within
the finisher
7 Lever FN4 Lowered when clearing paper misfeeds within
the finisher
8 Staple cartridge holder Removed from the stapler unit when replacing
the staple cartridge or clearing jammed staples
3
4
5 6 7 8 9
10
11
1
12
2
