Appendix D. Router Examples
61200305L1-1 ATLAS 550 User Manual D-3

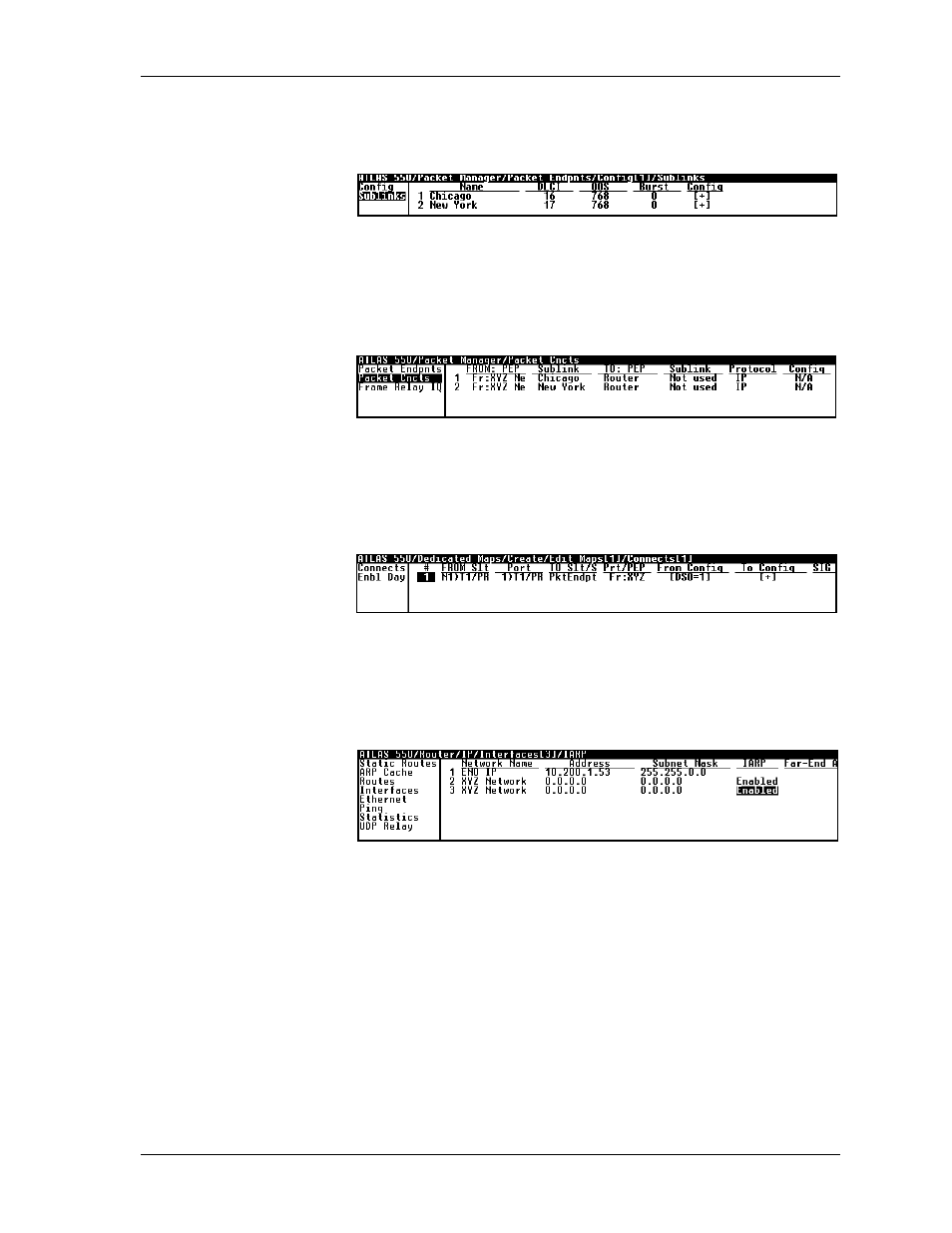

Step 2 From P ACKET M ANAGER /P ACKET E NDPOINTS /C ONFIG /S UBLINKS , create the
sublinks or DLCIs for frame relay (see Figure D-4).
Figure D-4. Creating Sublinks
Step 3 From P ACKET M ANAGER /P ACKET C NCTS , connect the IP traffic to the internal
router (see Figure D-5).
Figure D-5. Connecting IP Traffic to Internal Router
Step 4 From D EDICATED M APS /C REATE /E DIT M APS /C ONNECTS , attach the packet
endpoint to the appropriate physical interface (see Figure D-6).
Figure D-6. Connecting Endpoints to Physical Interface
Step 5 From R OUTER /IP/I NTERFACES , enable routing on the two interfaces. See Fig-
ure D-7.
Figure D-7. Enabling Routing
