Chapter 11. Dial Plan
61200305L1-1 ATLAS 550 User Manual 11-31

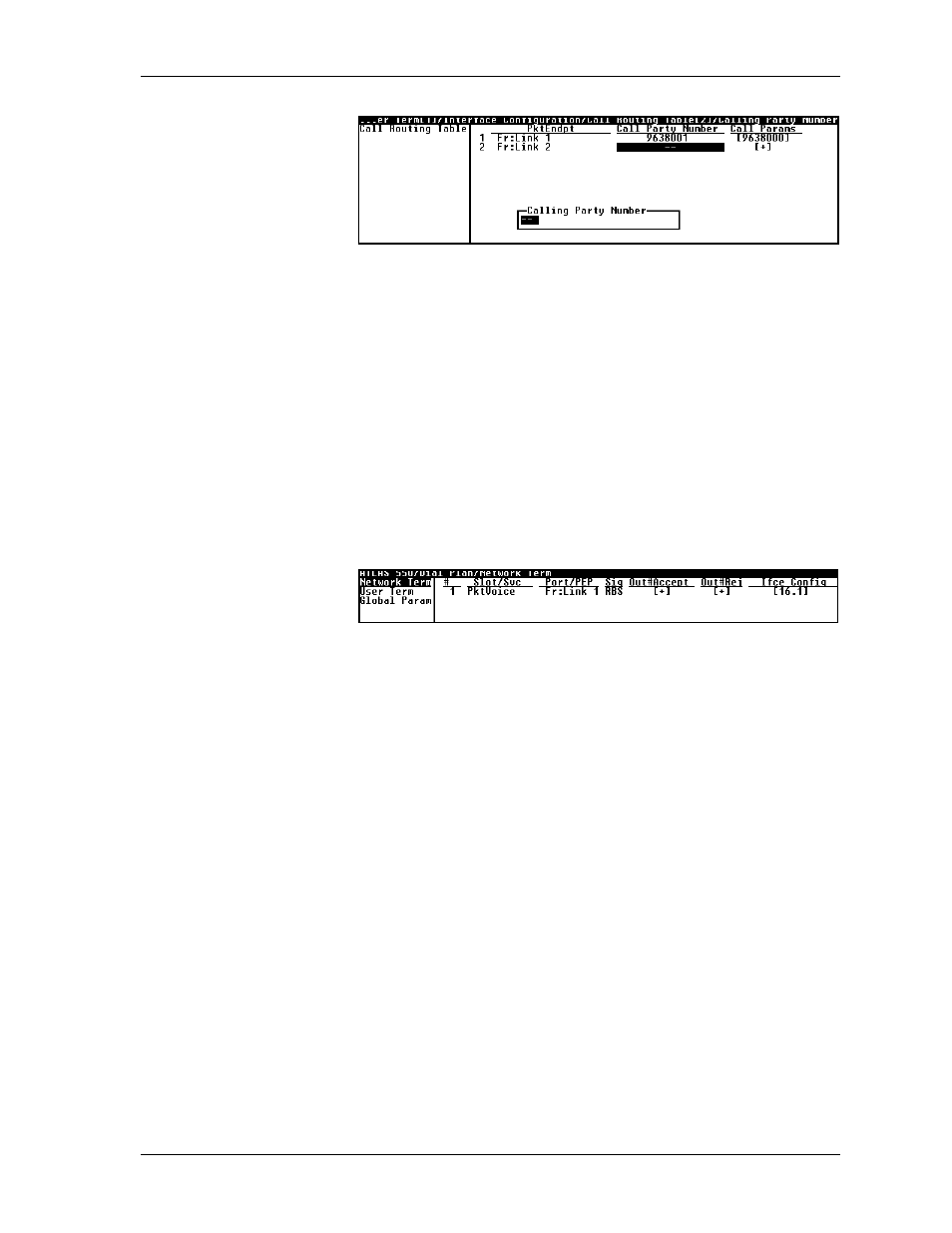

Figure 11-10. Call Routing Table for Routing Using Call Party Number
P KT V OICE The ATLAS 550 provides the same level of capability for packet-switched
voice as originally provided for circuit-switched voice.
I FCE C ONFIGURATION (under D IAL P LAN > U SER T ERM or N ETWORK T ERM ) sets
configuration parameters for the endpoint. These parameters vary by the
type of port selected. The following section describes the configuration op-
tions available for packet-switched voice (see Figure 11-11).
The first step in configuring the D IAL P LAN for packet voice is to select
N ETWORK T ERM or U SER T ERM . Refer to Connecting Packet Endpoints in Frame
Relay on page 11-28 for determining whether to use N ETWORK T ERM or U SER
T ERM . (See also Menus for Network Termination on page 11-33 and Menus for
User Termination on page 11-34.) Once this selection is made, a number of
fields become available. These fields are discussed in the following sections.
Figure 11-11. Packet Switched Voice Options
S LOT /S VC Write Security: 3; Read Security: 5
Select P KT V OICE as the service.
P ORT /PEP Write Security: 3; Read Security: 5
Select the port/packet endpoint that you want to configure.
S IG Not used for packet voice.
I N #A CCEPT Write Security: 3; Read Security: 5
Configured as defined in In#Accept on page 11-6.
O UT #R EJ Write Security: 3; Read Security: 5
Configured as defined in Out#Rej on page 11-8.
I FCE C ONFIG Write Security: 3; Read Security: 5
Provides interface configuration parameters (see Figure 11-12).
