Chapter 10. Dedicated Maps
61200305L1-1 ATLAS 550 User Manual 10-11

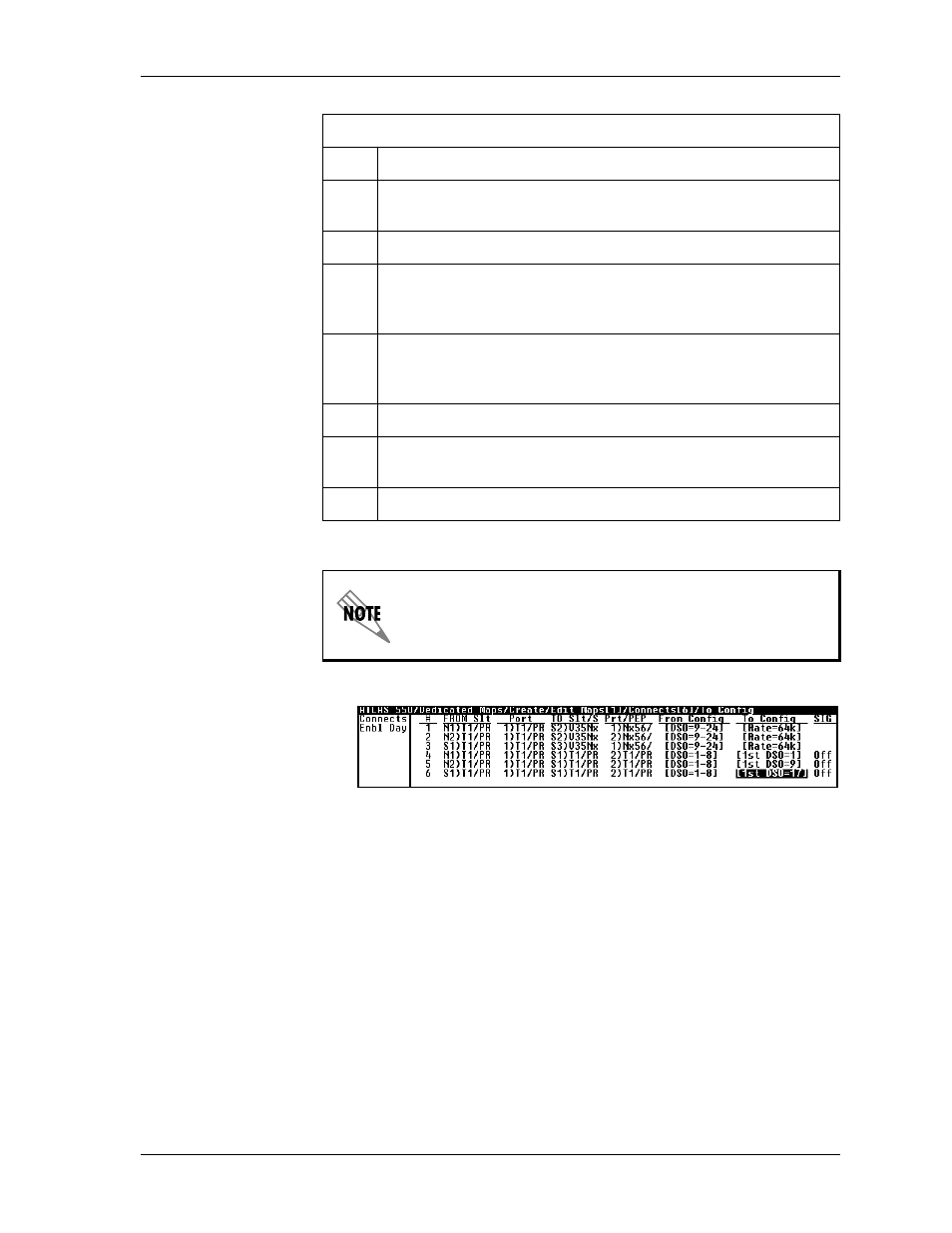

Figure 10-8. Completed Dedicated Map for Example 2
Instructions for Defining Voice Connections (DS0s 1-8)
Step Action
1
Set the FROM S LOT and P ORT for the first voice connection, A, as
N1) T1/PRI and 1) T1/PRI, respectively.
2 Set the F ROM C ONFIG voice DS0s as [DS0=1-8].
3
Set TO S LT /S and P RT /PEP for the PBX connection as
S1) T1/PRI and 1) T1/PRI, respectively. This action selects the
Dual T1/PRI in Slot 1/Port 2.
4
Set the F IRST DS0 S for this connection in T O C ONFIG . For Voice A,
the first DS0 is 1; for Voice B, it is 9; and for Voice C it is 17. (This
action sets the DACSing between the T1s.)
5 Set SIG to RBS.
6
(Optional) From T O C ONFIG , set the trunk conditioning (Signaling
and Data code) for T1 failure.
7 Repeat for the remaining voice connections.
A connection is not actually “made” (connected) until the cursor
leaves the connection. The cursor leaves the connection when you
press
Esc to move the cursor to the index # or when you move the
cursor onto another connection line.
