Appendix C. Frame Relay Examples
C-10 ATLAS 550 User Manual 61200305L1-1

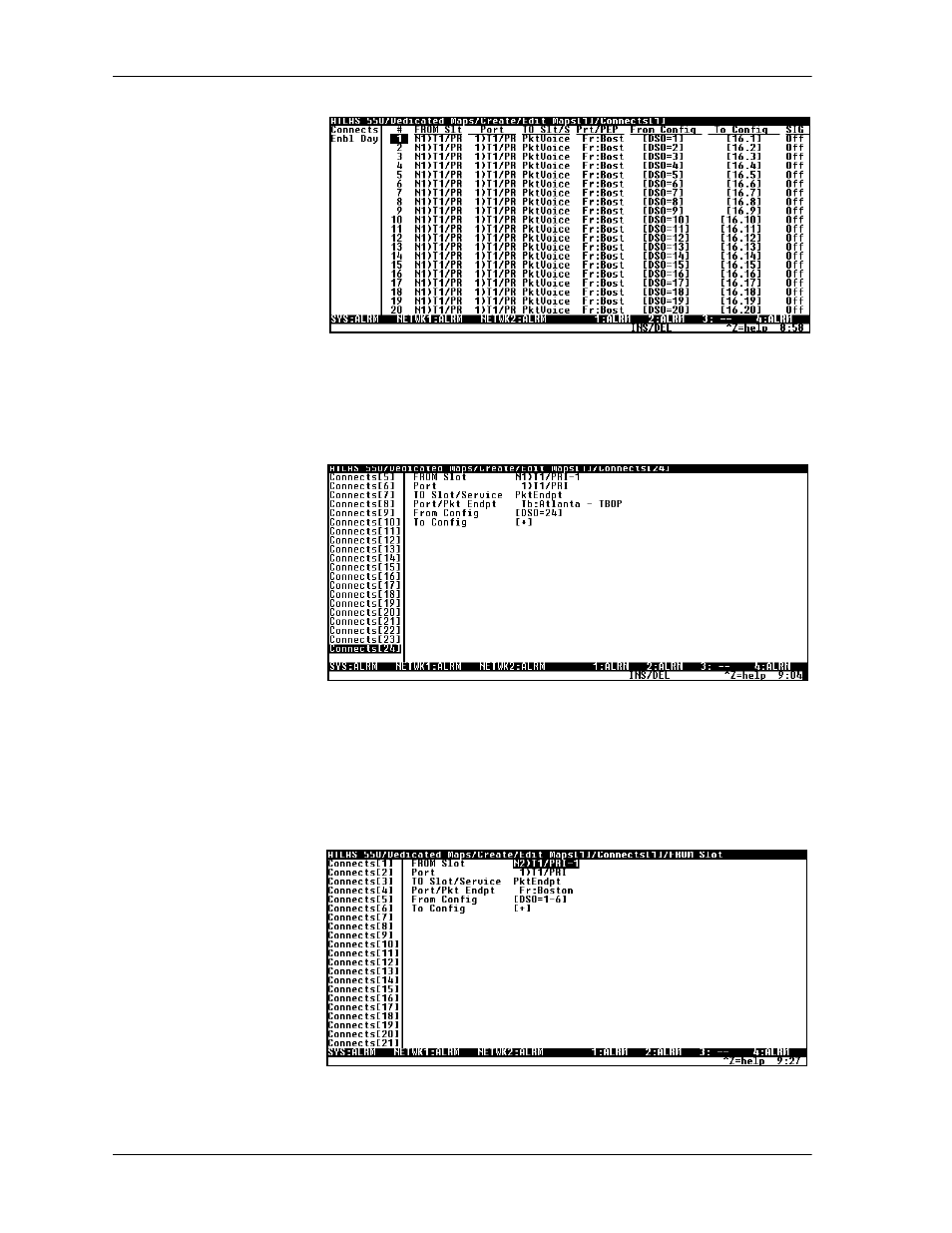

Figure C-28. Menu for Connecting Packet Endpoints to Physical Links
Step 4-a TBOP Connection Details. The PBX DS0 carrying the signaling information
must be connected to the frame relay endpoint (see Figure C-29).
Figure C-29. Connecting PBX DS0 to Frame Relay Endpoint
Step 4-b Frame Relay Connection Details. Connecting the frame relay endpoint to the
private frame relay network requires six DS0s, one for the TBOP connection
and five for the compressed voice connections (see Figure C-30). Hint: Use
N2)T1/PRI as the FROM S LOT .
Figure C-30. Connecting FR Endpoint to FR Private Network
