Appendix C. Frame Relay Examples
61200305L1-1 ATLAS 550 User Manual C-5

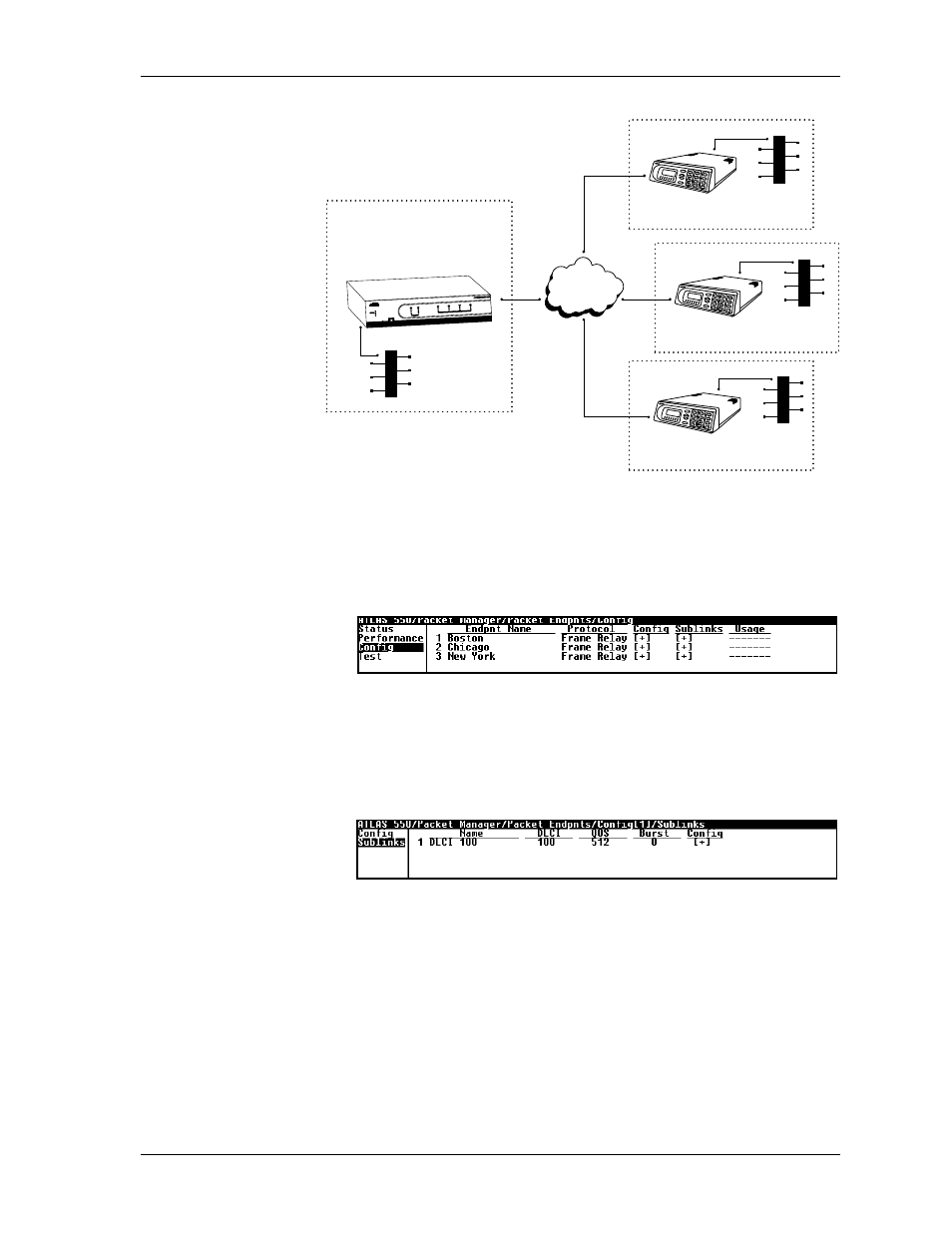

Figure C-13. Private Frame Relay Network—ATLAS 550 Central-Site Router
Step 1 From P ACKET M ANAGER /P ACKET E NDPOINTS /C ONFIG , create the packet end-
points (see Figure C-14).
Figure C-14. Menu for Creating Packet Endpoints
Step 2 From P ACKET M ANAGER /P ACKET E NDPOINTS /C ONFIG /S UBLINKS , create three
identical sublinks. (Only one sublink is shown in Figure C-15).
Figure C-15. Menu for Creating Sublinks
