Chapter 10. Dedicated Maps
61200305L1-1
ATLAS 550 User Manual
10-9
Configuring the Ports for Example 2
Complete the steps outlined in the following Step/Action table to configure
the various ports to match the framing parameters of the T1 line provided
by the telco. (Also see Table 10-2.)

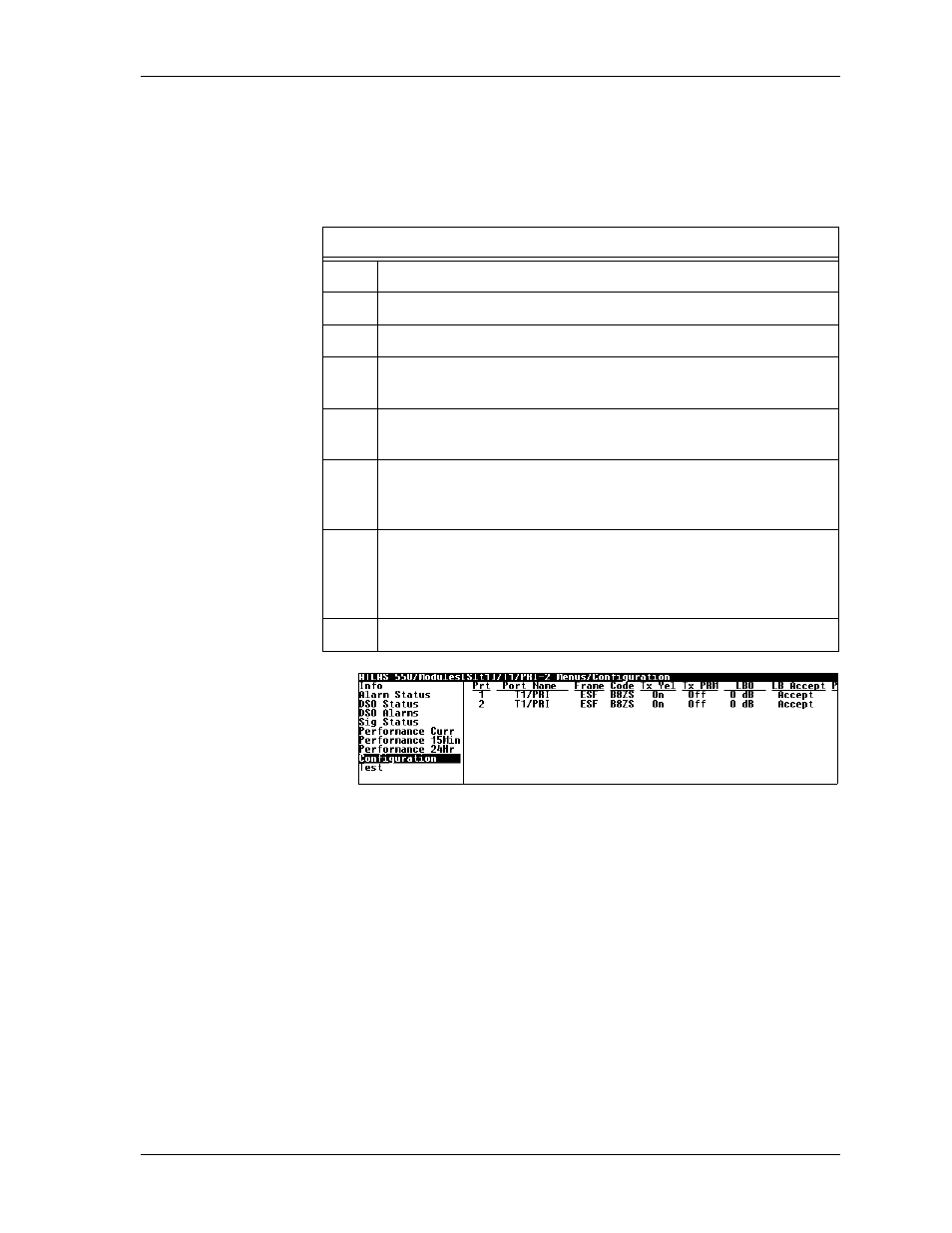

Figure 10-6. T1/PRI Configuration Menu for Example 2
Defining the Connections for Example 2
Define the connections by completing the following Step/Action tables.
Make the data connections first and then make the voice connections.
Refer to Table 10-2 on page 10-8 and Figure 10-7 as you define the connec-
tions.
Instructions for Configuring the Ports
Step
Action
1
Navigate to M
ODULES
.
2
Select N
TW
1 (a T1/PRI network interface).
3
Set the line framing parameters by selecting the corresponding
M
ENU
/ C
ONFIGURATION
/ F
RAME
/ ESF.
4
Navigate to P
RT
and press
C
to copy this configuration information
for use with additional ports.
5
Navigate back to N
TW
2 and move to its corresponding M
ENU
/
C
ONFIGURATION
/ P
RT
. Paste the information copied in step 3 here
by pressing
P
. Press
Y
to confirm paste.
6
Assign a T1/PRI card to Slot 1. Paste the information copied in step
3 by moving to the corresponding M
ENU
/ C
ONFIGURATION
/ P
RT
and pressing
P
. Press
Y
to confirm paste (see Figure 10-6 on
page 10-9).
7
Assign Dual Nx 56/64 cards (V35Nx-2) to Slots 2 and 3.
