example, you were to make a client’s port an authenticator, the client
would have to log on twice when trying to access switch A, once on its port
on switch B as well as the authenticator port on switch A. This is not
permitted. Consequently, in our example the clients on switch B have full
access to that switch, but are denied access to switch A until they log on to
port 6 on switch A.

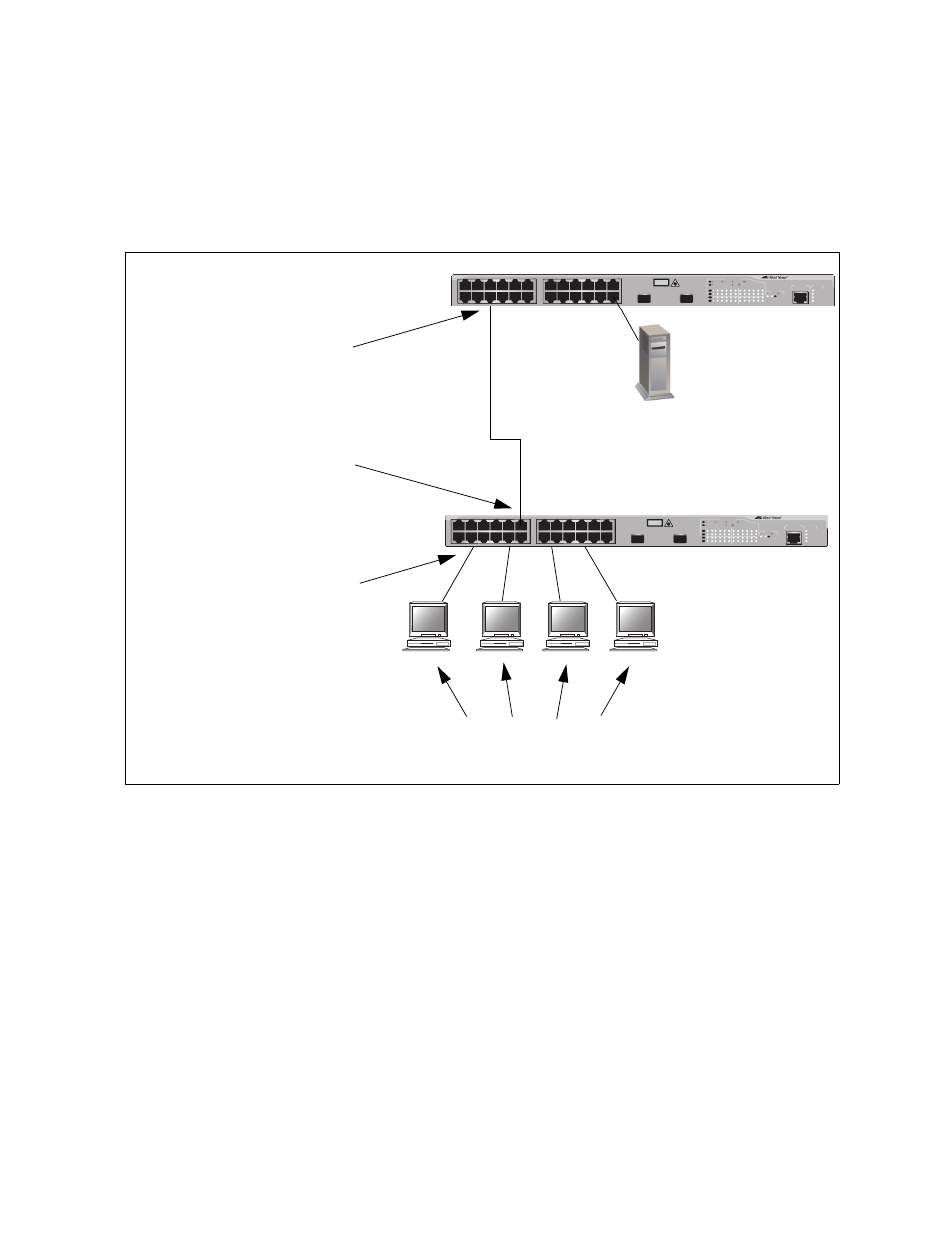

Figure 255. Authenticator Port in Multiple Operating Mode - Example 2
RADIUS
Accounting
The AT-S63 management software supports RADIUS accounting for
switch ports set to the Authenticator role. This feature sends information to
the RADIUS server about the status of its supplicants. You can view this
information on the RADIUS server to monitor network activity and use.
The switch sends accounting information to the RADIUS server when one
of the following events occur:
Supplicant logs on
Supplicant logs off
A change in the status of an Authenticator port during an active
Supplicant session (for example, the port is reset or is changed from
the Authenticator role to None role while a Supplicant is logged on)
