Chapter 31: 802.1x Port-based Network Access Control
724
Section VII: Port Security

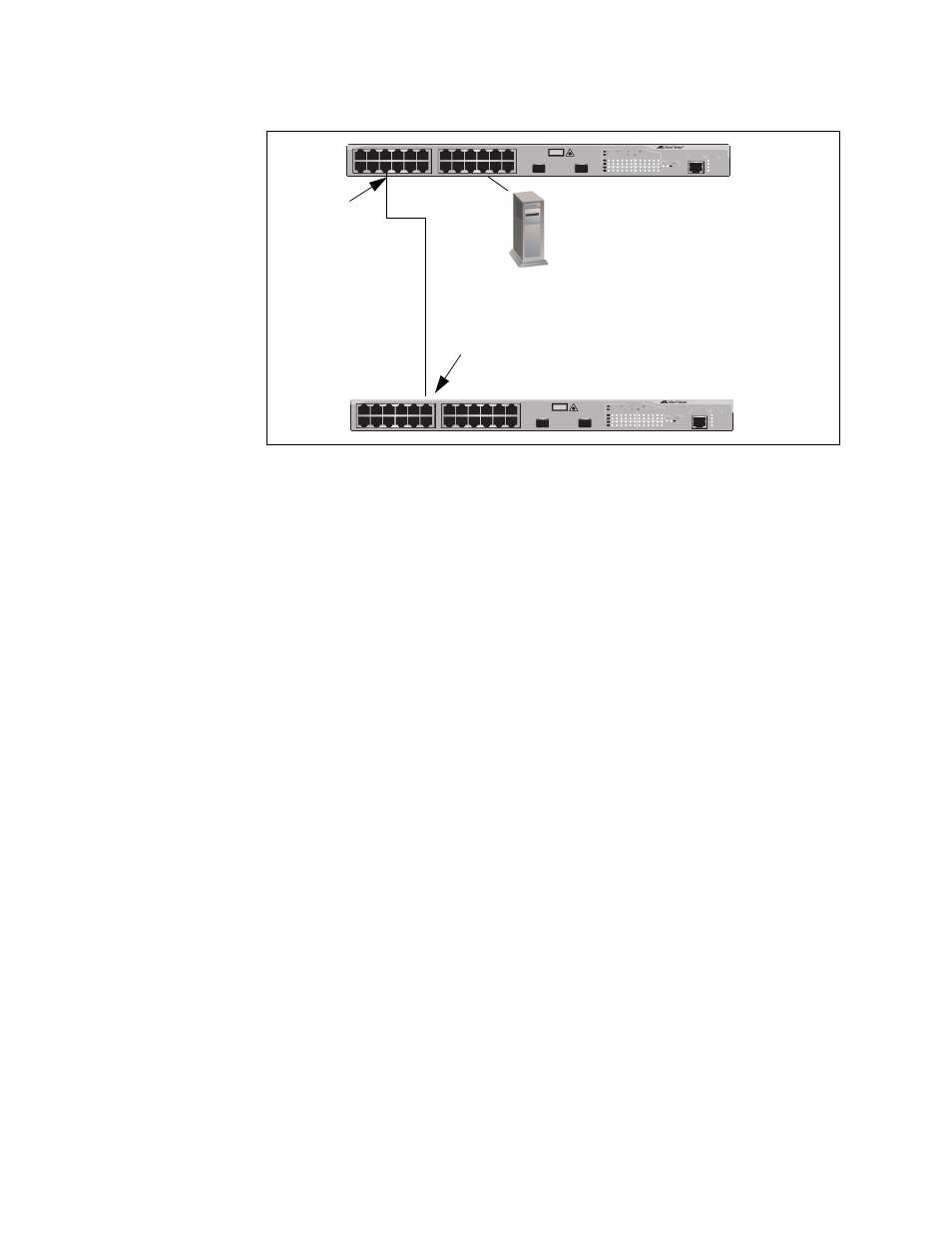

Figure 249. Example of the Supplicant Role
Authenticator
Ports with Single
and Multiple
Supplicants
An authenticator port has two supplicant modes. The modes relate to the
number of clients that are using the port and, in situations where an
authenticator port is supporting more than one client, whether just one
client or all the clients must log on to use the switch port.
The operating modes are:
Single
Multiple
The Single operating mode is used in two situations. The first is when an
authenticator port supports only one client. In this scenario, the switch
allows only one client to log on and use the port.
You can also use the Single mode when an authenticator port supports
more than one client, but where only one client needs to log on in order for
all clients to use the port. This configuration can be useful in situations
where you want to add 802.1x port-based network access control to a
switch port that is supporting multiple clients, but do not want to assign
each client a username and password.
This is referred to as “piggy-backing.” After one client has successfully
logged, the port permits the other clients to piggy-back onto the initial
client’s log on, allowing all clients to forward packets through the port.
To implement this configuration, you have to set the operating mode of an
authenticator port to Single and also toggle the piggy-back mode feature.
When piggy-back is disabled, only one client is allowed to log on and use
the port. When this feature is enabled, an unlimited number of clients can
use the port after one client has successfully logged on.
Switch A
Switch B
FAULT
RPS
MASTER
POWER
CLASS 1
LASER PRODUCT
STATUS
TERMINAL
PORT
1
3
5
7
9
11
2
4
6
8
10
12
13
15
17
19
21
23R
14
16
18
20
22
24R
AT-9424T/SP
Gigabit Ethernet Switch
1
3
5
7
9
11
13
15
17
19
21
23R
2
4
6
8
10
12
14
16
18
20
22
24R
23
24
L/A
D/C
D/C
L/A
D/C
L/A
1000 LINK / ACT
HDX / COL
FDX
10/100 LINK / ACT
PORT ACTIVITY
L/A
1000 LINK / ACT
SFP
SFP
24
SFP
23
FAULT
RPS
MASTER
POWER
CLASS 1
LASER PRODUCT
STATUS
TERMINAL
PORT
1
3
5
7
9
11
2
4
6
8
10
12
13
15
17
19
21
23R
14
16
18
20
22
24R
AT-9424T/SP
Gigabit Ethernet Switch
1
3
5
7
9
11
13
15
17
19
21
23R
2
4
6
8
10
12
14
16
18
20
22
24R
23
24
L/A
D/C
D/C
L/A
D/C
L/A
1000 LINK / ACT
HDX / COL
FDX
10/100 LINK / ACT
PORT ACTIVITY
L/A
1000 LINK / ACT
SFP
SFP
24
SFP
23
Port 6
in
Authenticator
Role
Port 11
in Supplicant Role
RADIUS
Authentication
Server
