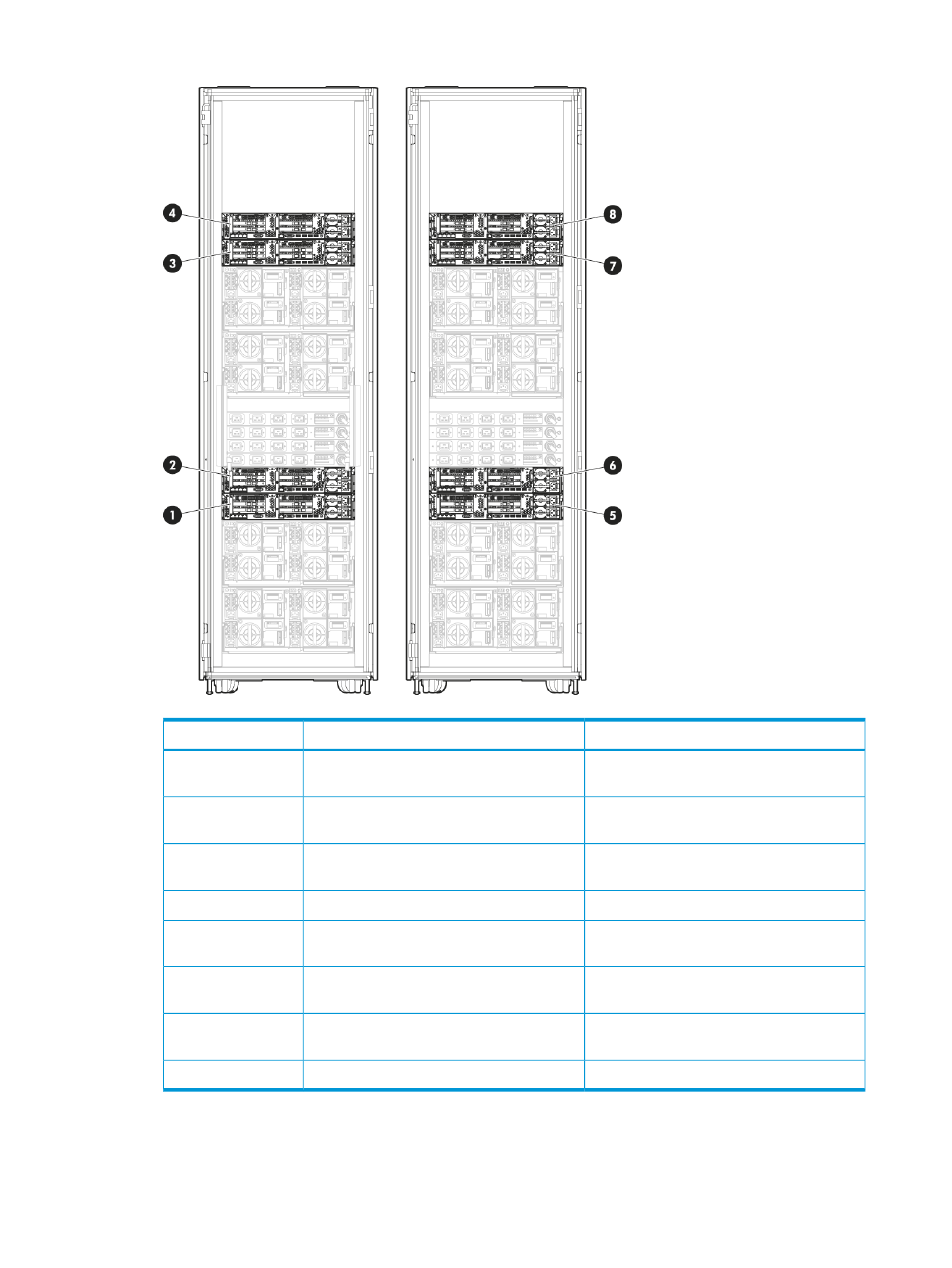

Figure 12 Node numbering in the HP StoreOnce 6500 Backup system
Location Description Node
Rack 1, shelves 11–12 Node 1, lower server in couplet 1, exists in
all installations 1
Rack 1, shelves 13–14 Node 2, top server in couplet 1, exists in all
installations 2
Rack 1, shelves 29–30 Node 3, lower server in couplet 2, if
installed 3
Rack 1, shelves 31–32 Node 4, top server in couplet 2, if installed 4
Rack 2, shelves 11–12 Node 5, lower server in couplet 3, if two
racks installed 5
Rack 2, shelves 13–14 Node 6, top server in couplet 3, if two racks
installed 6
Rack 2, shelves 29–30 Node 7, lower server in couplet 4, if
installed 7
Rack 2, shelves 31–32 Node 8, top server in couplet 4, if installed 8
