8 - 1
When wiring, piping settings and mounting of the sensor are completed, start the measurement.
The contents displayed on the MEASURE screen are as follows.
Instantaneous flow meter
⋅
On the MEASURE screen, instantaneous flow, instantaneous flow velocity, analog output, and analog input
are displayed.
Of the 4 stages displayed on the MEASURE screen, 2 contents can be arbitrarily allocated to the 1st and 2nd
stage. Allocation is accomplished by selection of “UNIT”.
If the flow rate is displayed when water flow stops, refer to page 9-3, “ZERO ADJUST” and page 9-5,
“CUT OFF”.
If the flow display fluctuates, refer to page 9-3 “RESPONSE SET”.
Integrated flow rate
⋅
When the integrated flow rate is displayed, “+TOTAL” and “-TOTAL” are fixed on the third stage and 4th
stage, respectively.
⋅
Integrated flow rate value is available in the range from 0000000 to 999999. If the value exceeds 9999999,
it resets to 0000000.
8. MEASUREMENT
x10
x10
x10
RESET
STOP
STOP
RESET
VELOCITY UNIT: m/s
+ TOTAL UNIT: mL
- TOTAL
NORMAL
UNIT: mL
MEASUREMEASURE
Indicator Clock
Status display
Integrated flow rate in forward direction
Integrated flow rate in reverse direction
Instantaneous flow rate,
flow velocity, etc.

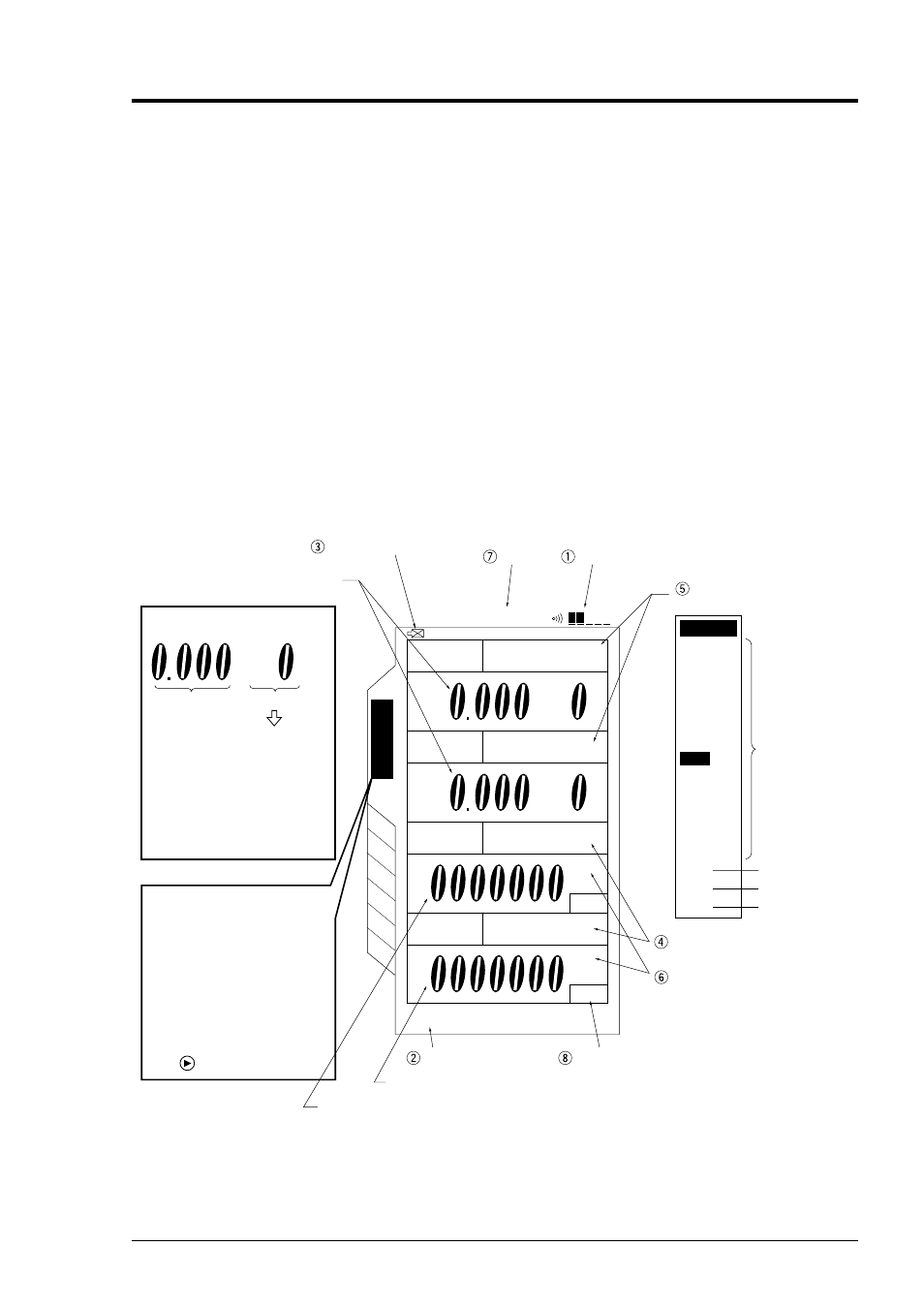

How to view display
Mantissa Exponent
Unit of indication
value
Status display of
totalize
Unit of totalize
Instantaneous
flow rate
Instantaneous
flow velocity
Resetting of integrated flow rate
Battery alarm
L / s
L / m i n
L / h
M L / d
m 3 / s
m 3 / m i n
M m 3 / d
B B L / s
B B L / m i n
B B L / h
MBBL/d
m / s
A I %
AO %
UNIT
m 3 / h
Analog input
Analog output
95-06-27 11:49
FLOW RATE UNIT: m3/h
X10
0
=1 time
X10
1
=10 times
X10
2
=100 times
When the cursor points to
the "MEASURE"
Tab as displayed, use
care since the measure-
ment value will not
change.
Move the cursor within
the screen by pressing
the key.
Example)
1.200
x10
1
corresponds to
1.2X10=12.
