3
INSTALLATION
22
MFC 300
www.krohne.com 02/2012 - 4000498602 - MA MFC 300 R03 en
3.6.2 Wall mounting
1 Prepare the holes with the aid of the mounting plate. For further information refer to Mounting
plate, field housing on page 146.
2 Use the mounting material and tools in compliance with the applicable occupational health
and safety directives.
3 Fasten the housing securely to the wall.

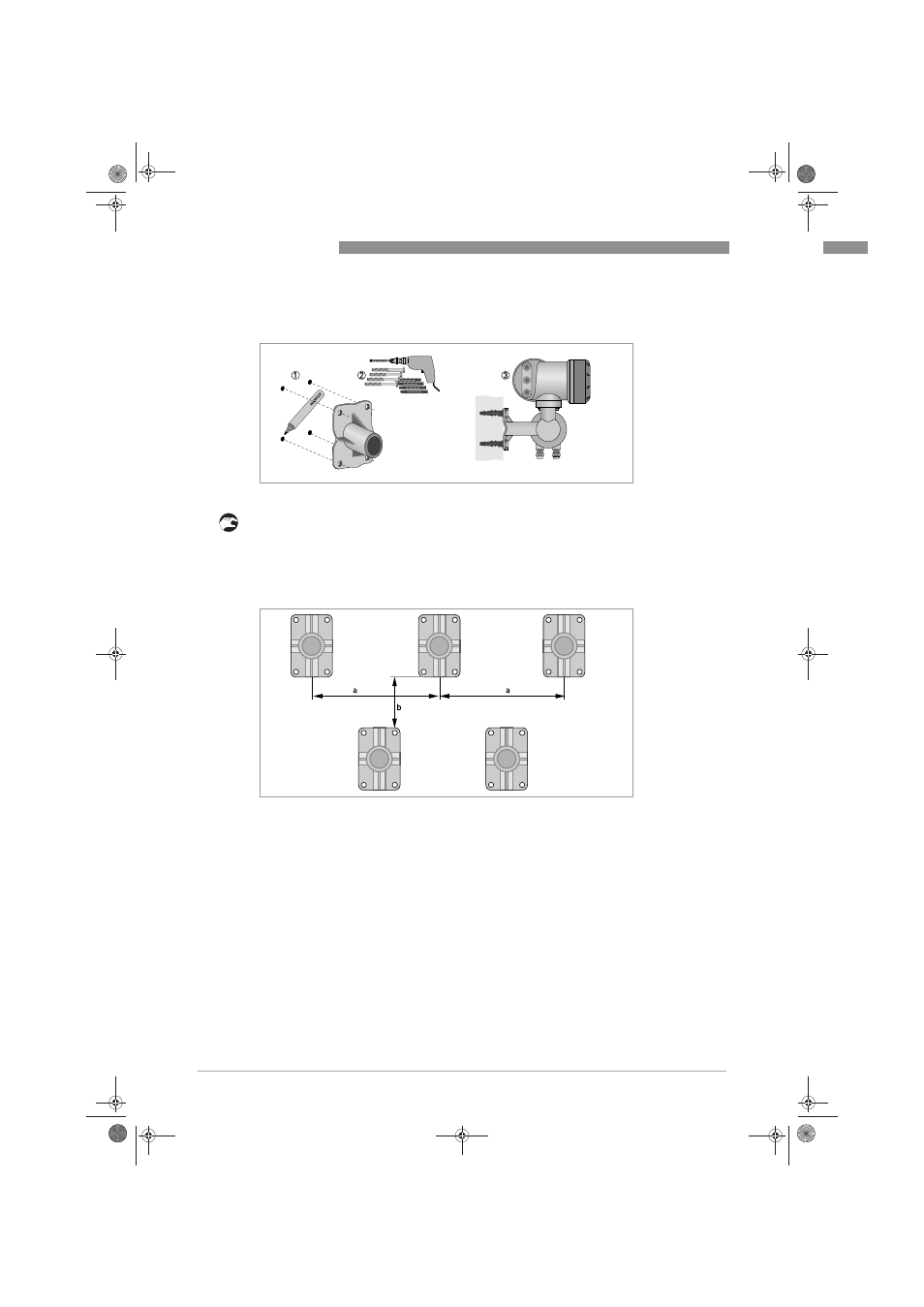

Figure 3-2: Wall mounting of the field housing
Mounting multiple devices next to each other
a ≥ 600 mm / 23.6"
b ≥ 250 mm / 9.8"
