DeviceNet Chapter 7. Network Settings
IM8002 Power Wave® Manager User Manual 7.5
Configuration Tab
Use the Configuration tab to review and/or edit options for the DeviceNet interface connected to this
Welding Power Source. Power Wave® Manager reads these options from the connected Welding Power
Source and displays them here. The available fields depend on the DeviceNet module. Table 7.1 explains
each of the fields in more detail.
NOTE | For more information on setting up the DeviceNet interface,
refer to the DeviceNet Interface Specification Document
(Y50031) included with the Power Wave® Utilities
installation.

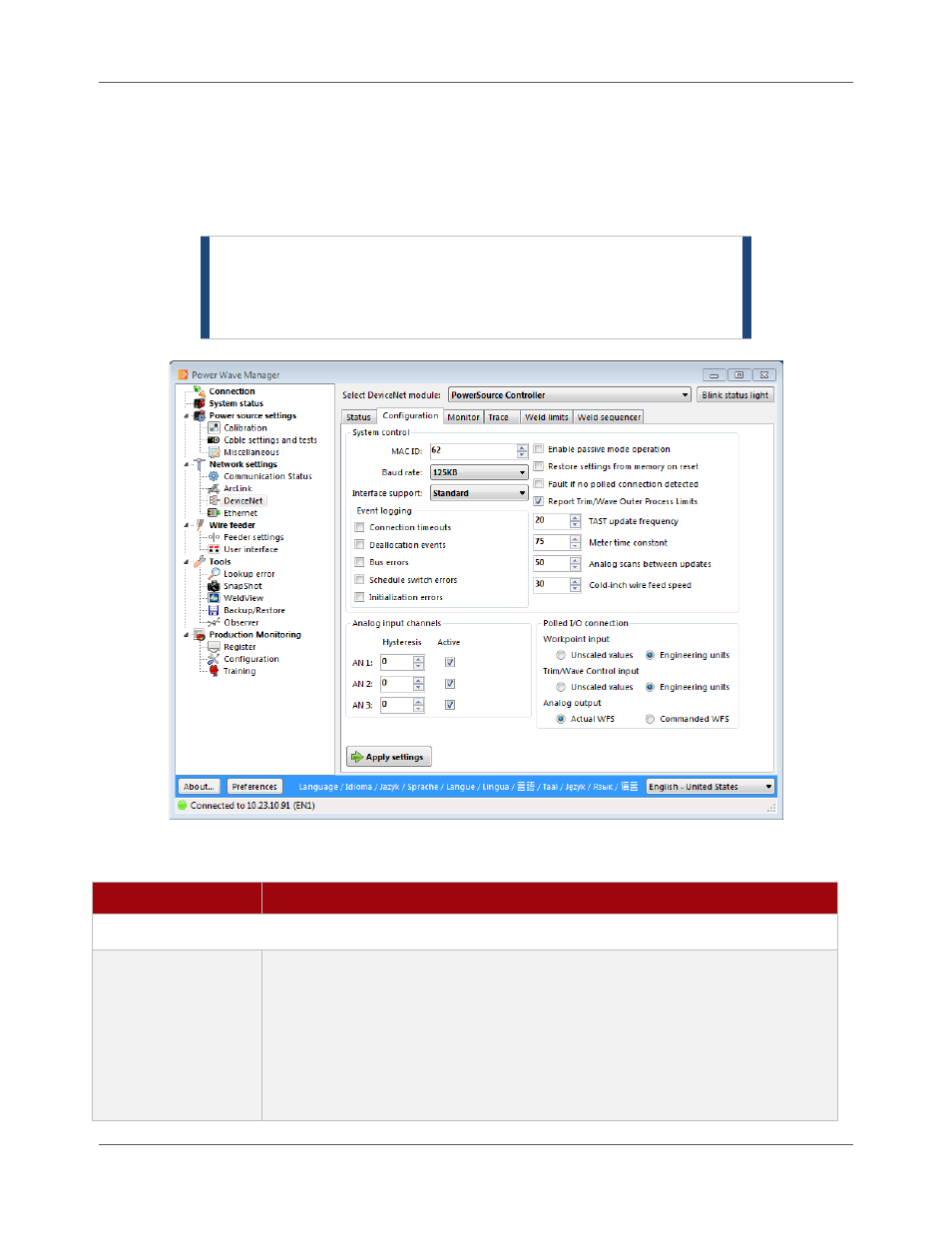

Figure 7.6 Configuration Tab
Table 7.1 Fields on the Configuration Tab
Field Description
System Control
MAC ID This field displays the current media access control (MAC) ID of the DeviceNet
interface installed on this Welding Power Source.
For the following power sources, the MAC ID is usually set by a DIP switch
located on the gateway board, but you can also set the MAC ID from Power
Wave® Manager: PW455, PW455M, ACDC1000, PW655, and Welding Power
Sources that use the K2436-1 Ethernet/DeviceNet Communication Interface.
For other Welding Power Sources that do not have a DIP Switch, you must use
