Yokogawa YVP110 User Manual
Page 16
<1. Notes on Handling>
1-5
IM 21B04C01-01E
SAFE AREA
HAZARDOUS AREA
F0103.ai
Terminator
(FISCO Model)
Ex i
Field Instruments
(Passive)
Supply Unit
(FISCO Model)
Terminator
Data
U
U
I
Note 5. Maintenance and Repair
The instrument modification or parts
replacement by other than authorized
representative of Yokogawa Electric
Corporation is prohibited and will void Factory
Mutual Intrinsically Safe and Non-incendive
Approval.
l

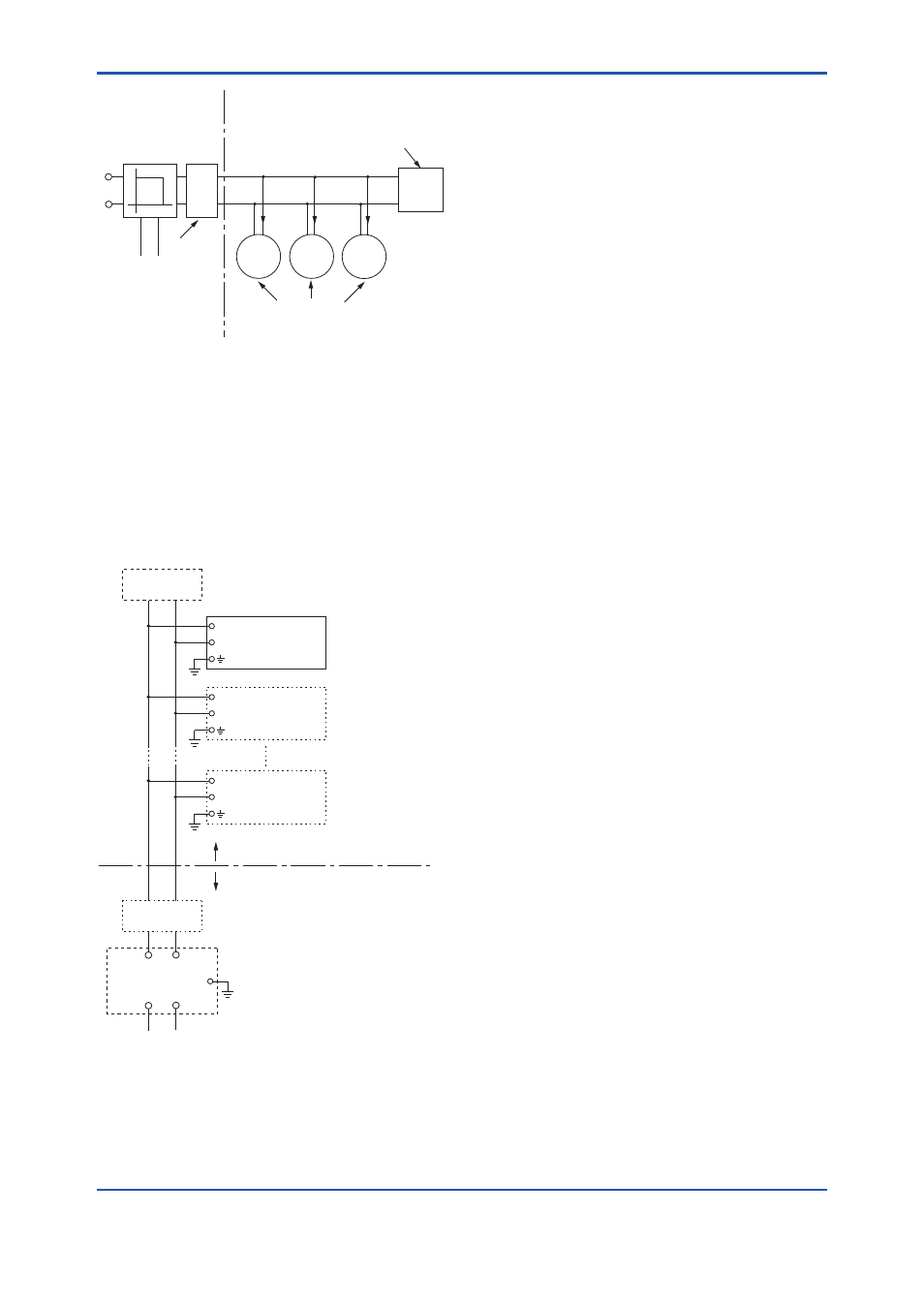

Installation Diagram (Nonincendive,
Division 2 Installation)
F0104.ai
Terminator
Valve Positioner
Terminator
+
−
Transmitter
+
−
Transmitter
+
−
Hazardous Location
Non-hazardous Location
FM Approved Associated
Nonincendive Field Wiring Apparatus
Vt or Voc
It or Isc
Ca
La
(Nonincendive)
Power Supply
*1: Dust-tight conduit seal must be used when
installed in Class II and Class III environments.
*2: Installation should be in accordance with the
National Electrical Code® (ANSI/NFPA 70)
Sections 504 and 505.
*3: The configuration of Associated Nonincendive
Field Wiring Apparatus must be FM Approved.
*4: Associated Nonincendive Field Wiring
Apparatus manufacturer’s installation
drawing must be followed when installing this
equipment.
*5: No revision to drawing without prior FM
Approvals.
*6: Terminator and supply unit must be FM
Approved.
*7: If use ordinary wirings, the general purpose
equipment must have nonincendive field wiring
terminal approved by FM Approvals.
*8: The nonincendive field wiring circuit concept
allows interconection of nonincendive field
wiring apparatus with associated nonincendive
field wiring apparatus, using any of the wiring
methods permitted for unclassified locations.
*9: Installation requirements;
Vmax ≥ Voc or Vt
Imax = see note 10.
Ca ≥ Ci + Ccable
La ≥ Li + Lcable
*10: For this current controlled circuit, the parameter
(Imax) is not required and need not be aligned
with parameter (Isc or It) of the barrier or
associated nonincendive field wiring apparatus.
Electrical Data:
Maximum Input Voltage Vmax: 32 V
Maximum Internal Capacitance Ci: 1.76 nF
Maximum Internal Inductance Li: 0 µH
B) FM Explosionproof Type
Caution for FM explosionproof type.
Note 1. Model YVP110 Valve Positioner with
optional code /FF1 are applicable for use in
hazardous locations.
• Applicable standard: FM3600, FM3615,
FM3810, ANSI/NEMA250
• Explosionproof for Class I, Division 1,
Groups A, B, C and D
• Dust-ignitionproof for Class II/III, Division 1,
Groups E, F and G
• Enclosure Rating: NEMA 4X
• Temperature Class: T6
• Ambient Temperature: –40 to 80°C
