Customer
Maintenance

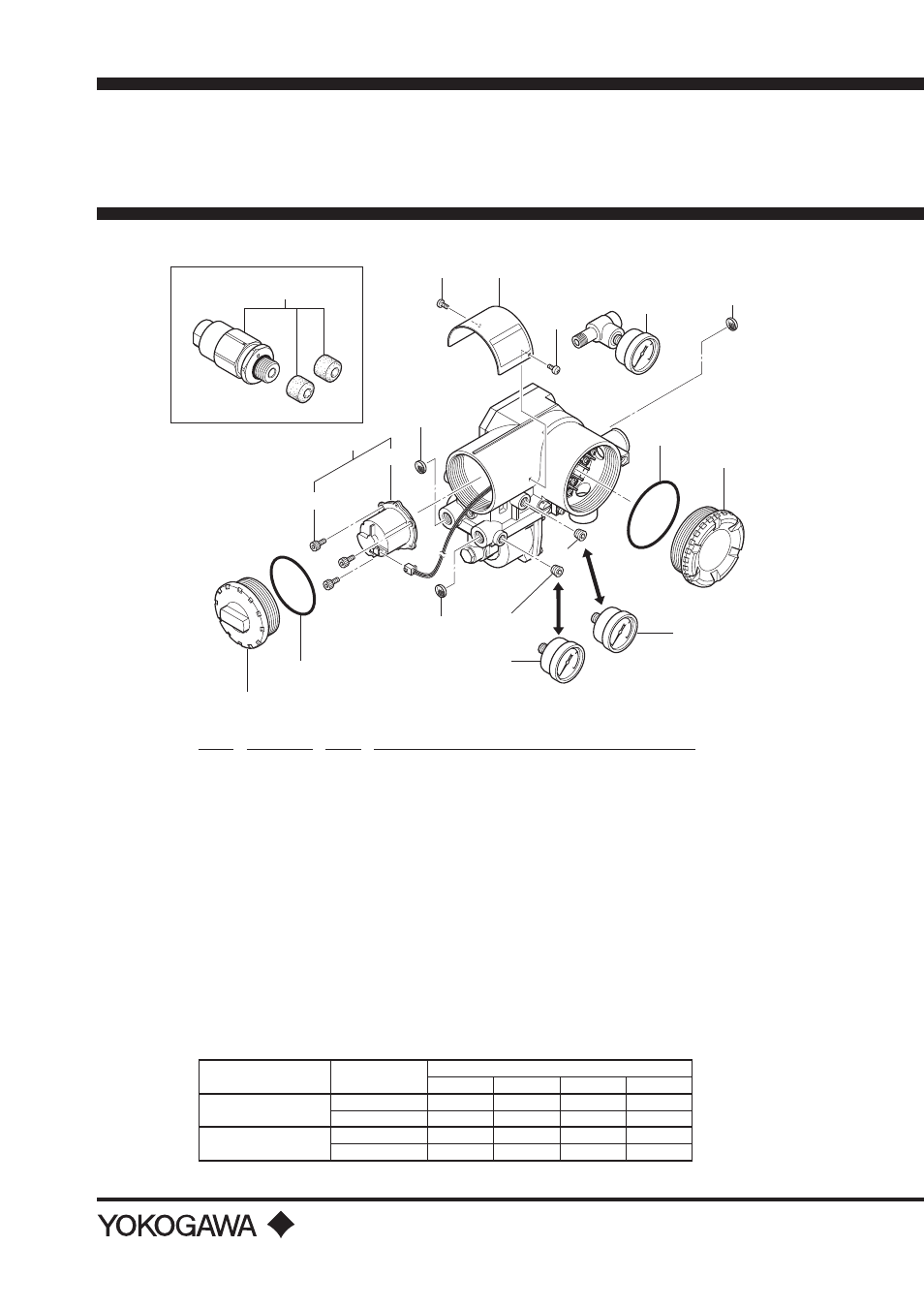

Parts List
3
4
6
5
9 8
9
2
1
11
11
12
12
10
10
10
12
13
7
Item Part No. Qty Description
1 F9341RA 1 Cover
2 F9341JP 1 O-Ring
3 — 1 I/P Cover
4 G9303AG 1 O-Ring
5 — 1 I/P Module
6 Y9408ZU 3 Bolt Hex. Socket
7 — 1 I/P Module Assembly
8 — 1 Name Plate
9 F9300AG 2 Screw
10 U0103FP 3 Screen (Single Acting Actuator)
4 Screen (Double Acting Actuator)
11 Below 2 Plug
G9612EJ For Connection code 1, 5, and 6
G9612EL For Connection code 3
12 See Table 1 2 Pressure Gauge (Single Acting Actuator)
3 Pressure Gauge (Double Acting Actuator)
13 G9601AM 1 Cable Gland Assy for TIIS Flameproof Type (Option code /G11)
Table 1. Pressure Gauge Part Number (item 12).
Applicable Actuator code Connection code
Option code
/GP /GM /GB /GE
1
(Single Acting Actuator)
1, 5, and 6 G9615ED G9615AR G9615EF —
3 — — — G9615EE
2
(Double Acting Actuator)
1, 5, and 6 G9615EG G9615AS G9615EH —
3 — — — G9615EJ
YVP110
Advanced Valve Positioner
CMPL 21B04C01-01E
5th Edition: Nov. 2008 (KP)
