HDXP Plus Series Switchers • Matrix Software 88
• Ties as Lines — Displays ties as lines.

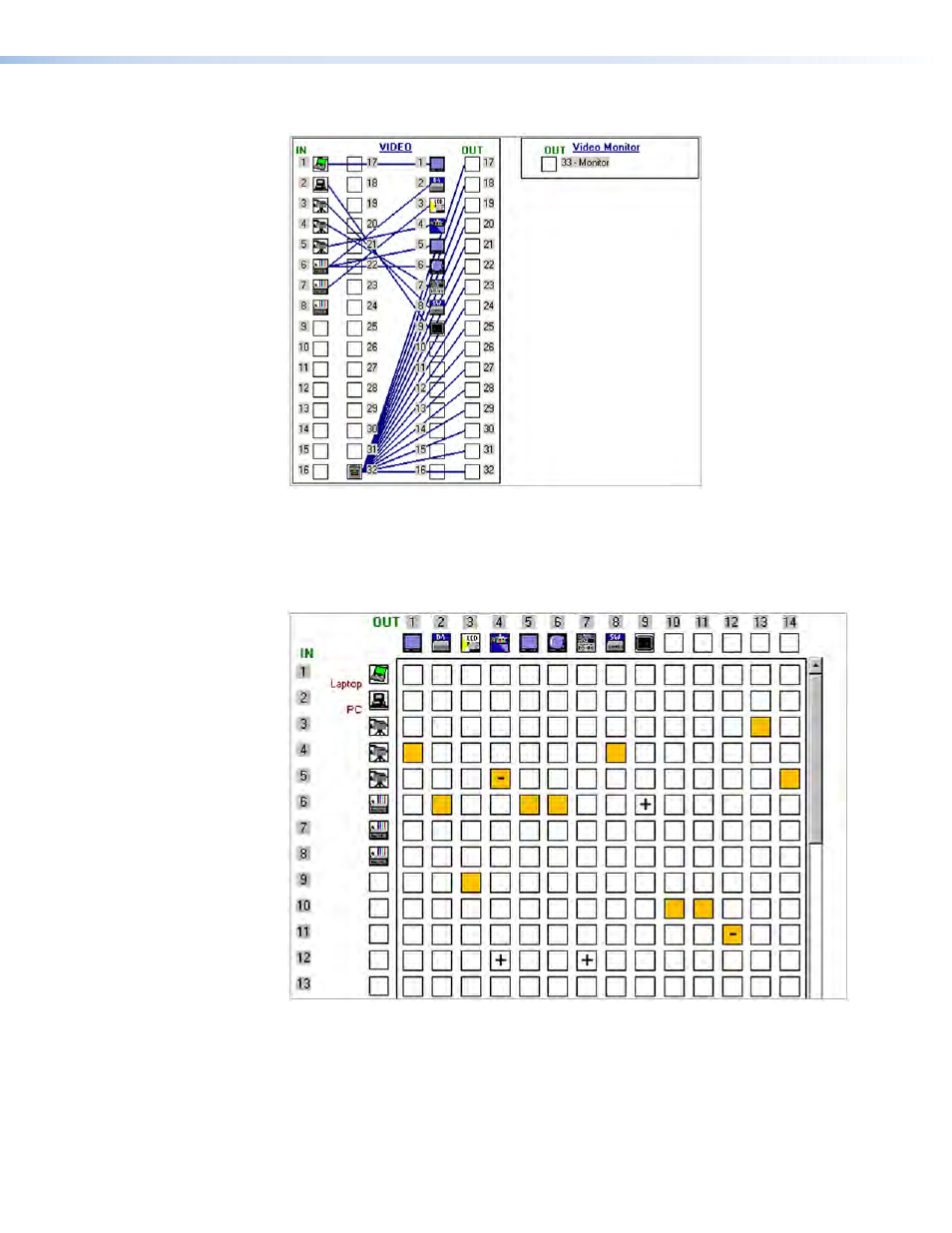

Figure 86. Ties Shown as Lines
• Ties as Crosspoints — Displays ties as a matrix of inputs and outputs. Ties that
have been made are indicated as amber boxes. Ties that will take effect when you
click the
Take button are indicated by a plus sign ( + ) in the crosspoint box. Ties that
will be broken when you click the Take button are indicated by a minus sign ( – ).
Figure 87. Ties Shown as Crosspoints
