HDXP Plus Series Switchers • Operation

31

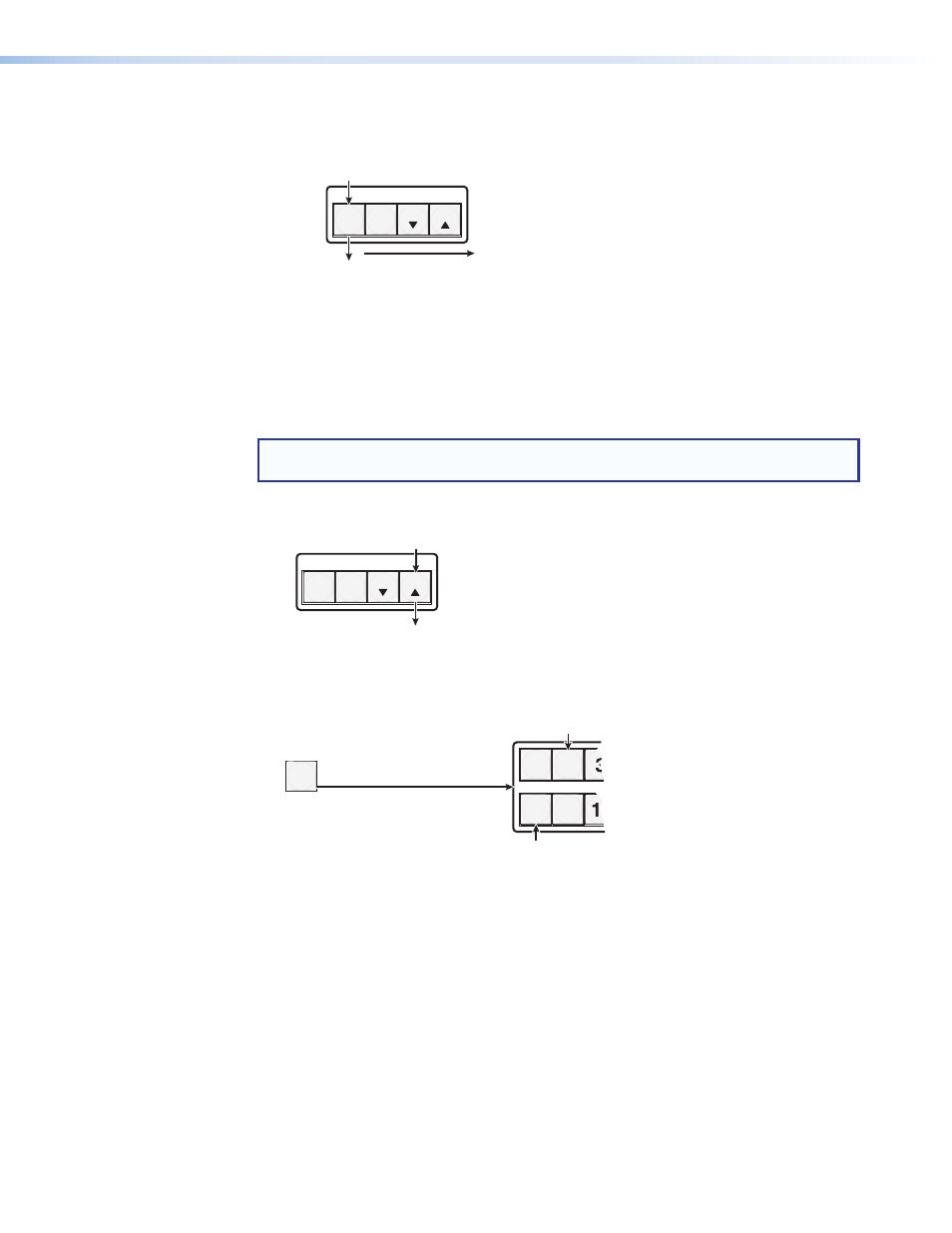

4.

Press and release the Enter button. The current configuration is now stored in the
selected memory location.

C O N T R O L

PRESET

ENTER

ESC

VIEW

The Enter and Preset buttons
become unlit or return to
background illumination.

Press the Enter button to
save the preset.

All

input buttons become unlit or

return to background illumination.

Figure 46.

Press the Enter Button

Recalling a preset

Follow these steps to recall a preset (set of ties) to be the current configuration. The steps
below show the front panel indications that result from your action.

NOTE: The illustrations for this procedure show the HDXP 3216. However, the

information applies to all HDXP models.

1.

Press and release the Esc

>

button.

CONTROL

PRESET

ENTER

ESC

VIEW

Press the Esc

>

to clear all selections.

The button blinks once.

Figure 47.

Clear All Selections

2.

Press and release the Preset button.

PRESET

1 2

17 18

17 18

1 2

Press and release the Preset button.
The Preset button lights.

All input buttons with

assigned presets light red.

Red

(Preset Assigned)

Unlit

(No Preset Assigned)

Inputs

Figure 48.

Entering Recall Preset Mode

In the example in figure 48, the Input 2 button lights red, because a preset has been
assigned to it. Input button 17 does not light, because no preset has been assigned
to it.
