HDXP Plus Series Switchers • Operation 22
Example 3: Removing a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
steps show the front panel indications that result from your action.
NOTE: This example assumes that you have performed examples 1 and 2.

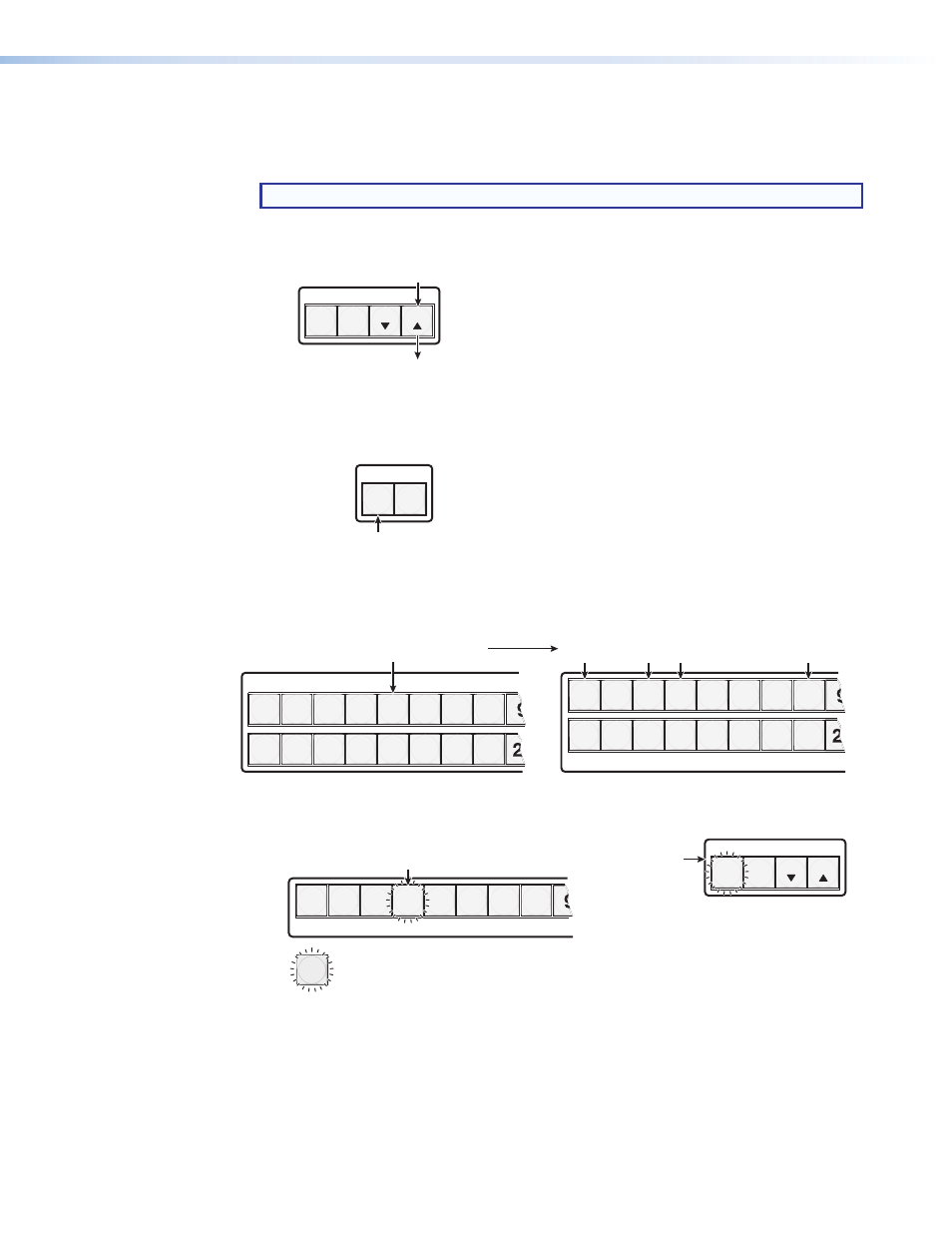

1. Press and release the Esc > button.
CONTROL
PRESET ENTER ESC VIEW
Press the Esc > to clear all selections.
The button blinks once.
Figure 24. Clearing All Selections
2. If necessary, place the HDXP in matrix switching mode by pressing and releasing the
Matrix button. The button lights steadily green.
I / O
MATRIX PREVIEW
Press the Matrix button to enter matrix mode.
The button lights
green when selected.
Figure 25. Selecting Matrix Mode
3. Press and release the input 5 button.
17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8
17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8
OUTPUT
INPUT
Press and release the Input 5 button.
The button lights green. The Output 1, Output 3, Output 4, and Output 8 buttons
light green to indicate the ties created in examples 1 and 2.
Figure 26. Selecting an Input
4. Press and release the Output 4 button.
C O N T R O L
PRESET ENTER
= Blinking button
ESC VIEW
1 2 3 4 5 6 7 8
OUTPUT
Press and release the Output 4 button.
The button blinks green to indicate the pending change:
output 4 will be untied.
The Enter button blinks
green to indicate the need to
confirm the change.
Figure 27. Deselecting the Output
