HDXP Plus Series Switchers • Matrix Software 72
4. The Extron Matrix Switcher Control Program window opens. The window displays the
current configuration of the attached matrix, with numbered boxes representing the
video inputs and outputs.
NOTE: Figures 73 and 74 show the HDXP 3232, which has 32 inputs and 32 outputs.
The window for the HDXP 3216 has 32 input boxes and 16 output boxes, while the
HDXP 1616 window has 16 input boxes and 16 output boxes.

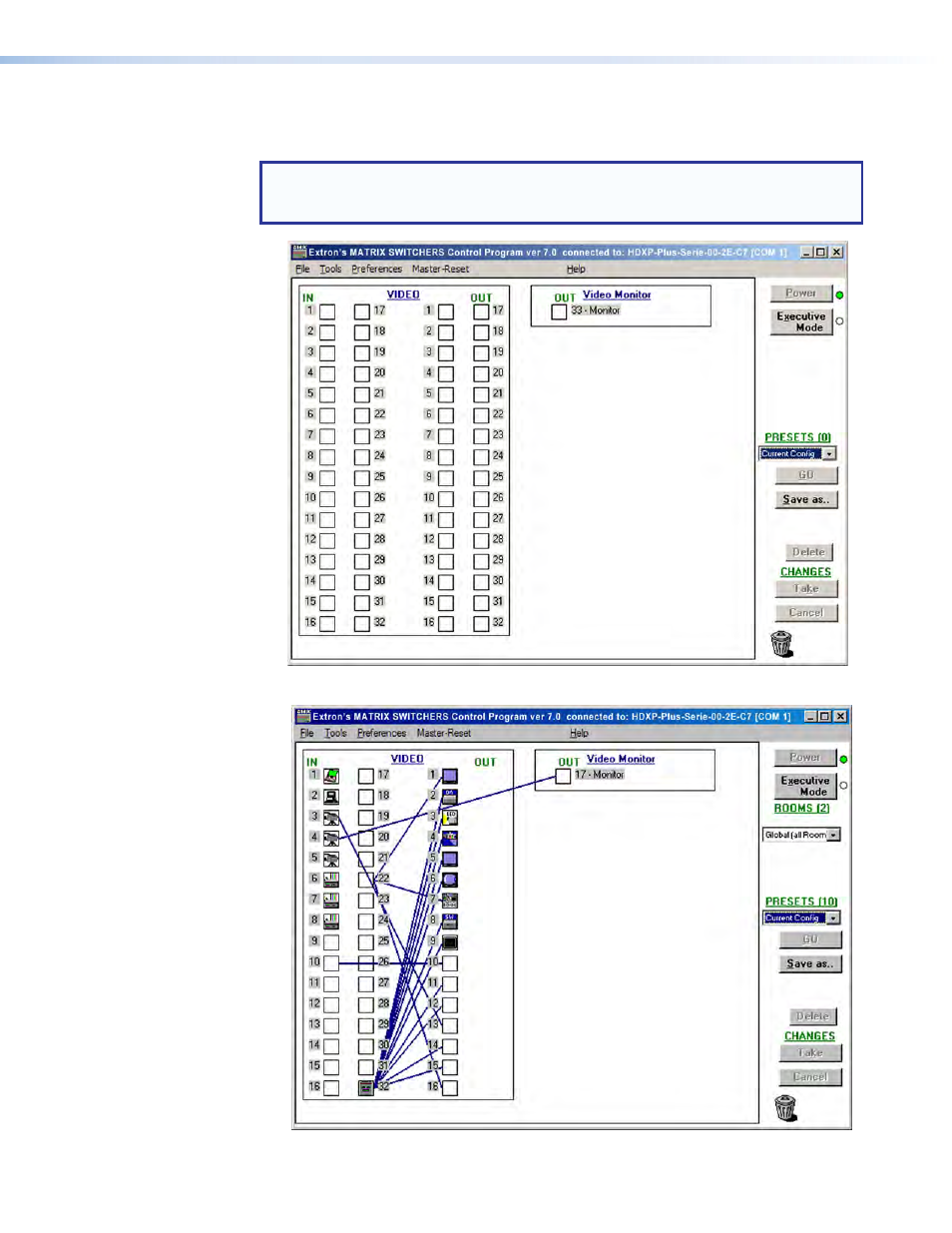

Figure 73. Extron Matrix Switcher Control Program Window (No Ties)
Figure 74. Sample Matrix Window with Ties and Rooms
