Soft system resets
The HDXPs have three soft resets available that restore various tiers of switcher settings
to their default settings.
•
Events (mode 3) reset — This function toggles the monitoring of events on or off (if
events monitoring was on, this function turns it off; if monitoring was on, the HDXP
turns it off).
•
IP settings (mode 4) reset — The IP settings reset performs the following functions:
•
Enables Arp program capability.
•
Resets the IP address to the factory default (192.168.254.254).
•
Resets the subnet mask to the factory default (255.255.0.0).
•
Resets the gateway address to its factory default (0.0.0.0).
•
Resets port mapping to the factory default (port 80).
•
Turns DHCP off.
•
Turns events off.
NOTE: An IP settings reset does not replace any user-installed firmware.
•
Absolute (mode 5) reset — Absolute reset restores the switcher to the default
factory conditions. This function is identical to the E
ZQQQ
} SIS command (see the
To perform a soft reset of the HDXP from the rear panel:
1.
Press and
hold in the Reset button until the front panel Matrix and Preview buttons
and the back panel Reset LED blink once (for events reset), twice (for system reset),
or three times (for absolute reset).
RESET
RESET
RESET
3
4
Press and
hold
the Reset button.
Release, then
immediately
press and release again.
9 seconds
Reset LED blinks
three times.
Reset LED blinks
four times.
= Blink three times,
3
= blink four times
4

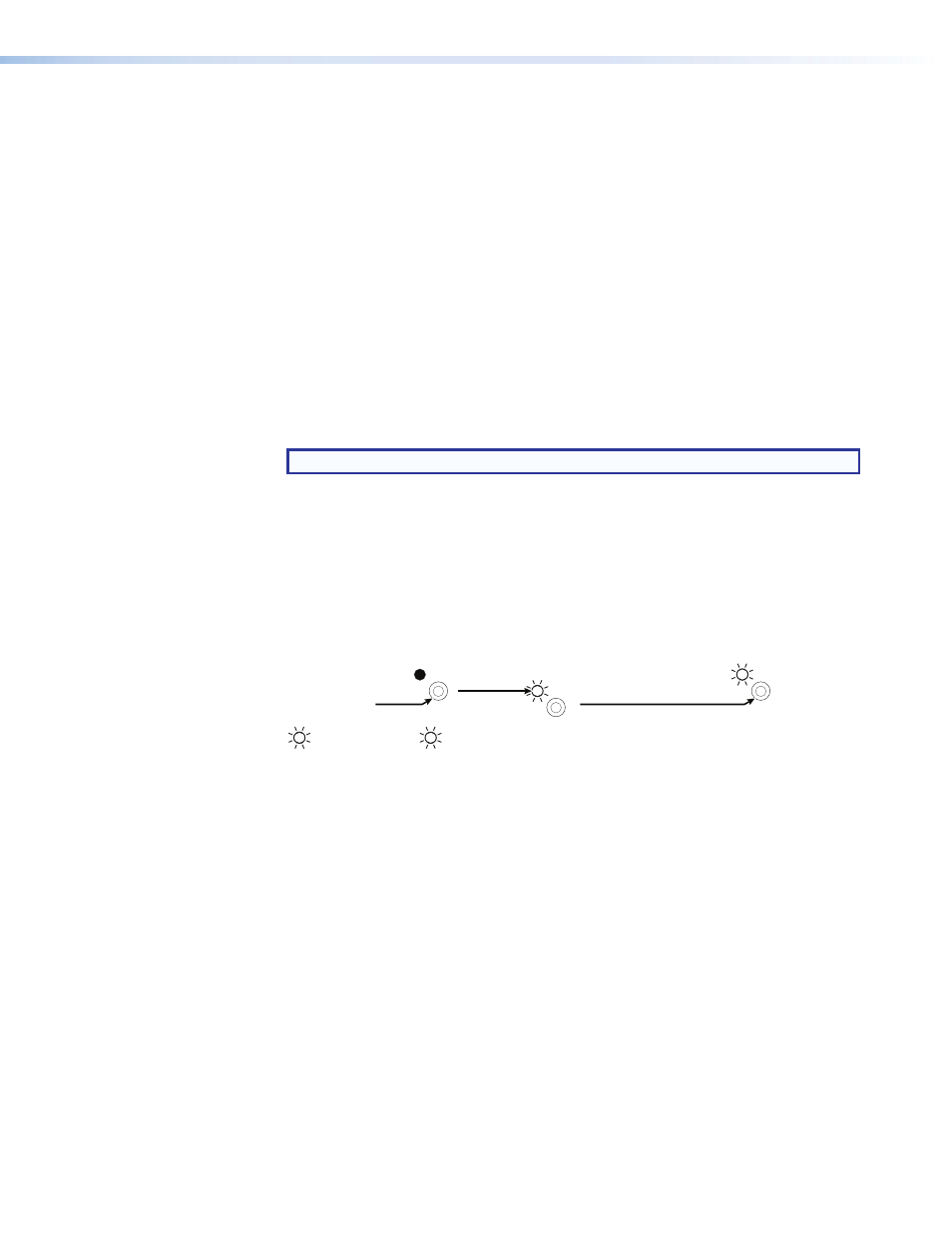

Figure 62.
Whole Switcher and Absolute Resets
2.
Release the Reset button, then immediately press and release the Reset button
again. No reset is performed if the second momentary press does not occur within
1 second.
