HDXP Plus Series Switchers • Operation 34
NOTE: The front panel times out after 30 seconds, and the View < and the
blinking output buttons become unlit or return to background lighting. If you
want to mute another output after a timeout, you must press the View
< button
again (repeat steps 2 and 3).
5. When finished muting, press and release the View < button to exit view-only mode, or
wait for the front panel to time out (approximately 30 seconds).
VIEW
All input and output buttons
become unlit or return to
background illumination.
Press the View button
to exit view-only mode.
The View button becomes
unlit or returns to
background illumination.

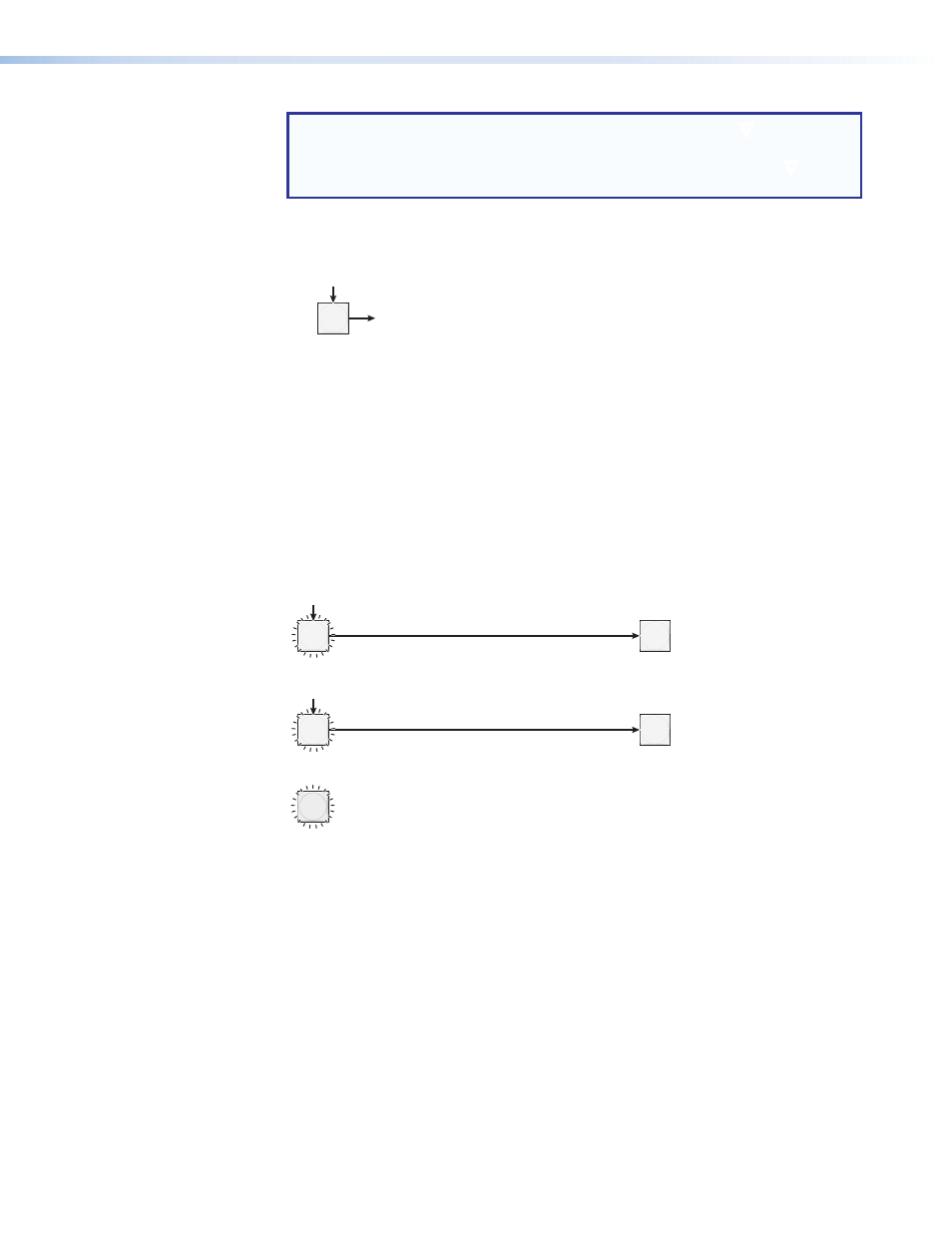

Figure 54. Exiting View-only Mode
Unmuting an output
1. Press and release the View < button to enter view-only mode. The View < button
lights red, and the buttons for any muted inputs begin blinking green.
2. One at a time, press and hold the button for each output that you want to unmute
until the button lights steadily (approximately 2 seconds).
In the following illustration, outputs 3 and 4 are unmuted.
3
4
3
4
Press and hold the Output 3 button.
The button lights green to indicate
that the outputs are not muted.
Press and hold the Output 4 button.
The button lights green to indicate
that the outputs are not muted.
Unmute outputs one at a time.
= Blinking button
2 seconds
2 seconds
Figure 55. Unmuting the Outputs
3. Press the View < button to exit view-only mode, or wait for the front panel to time out
after approximately 30 seconds.
