HDXP Plus Series Switchers • Operation
24

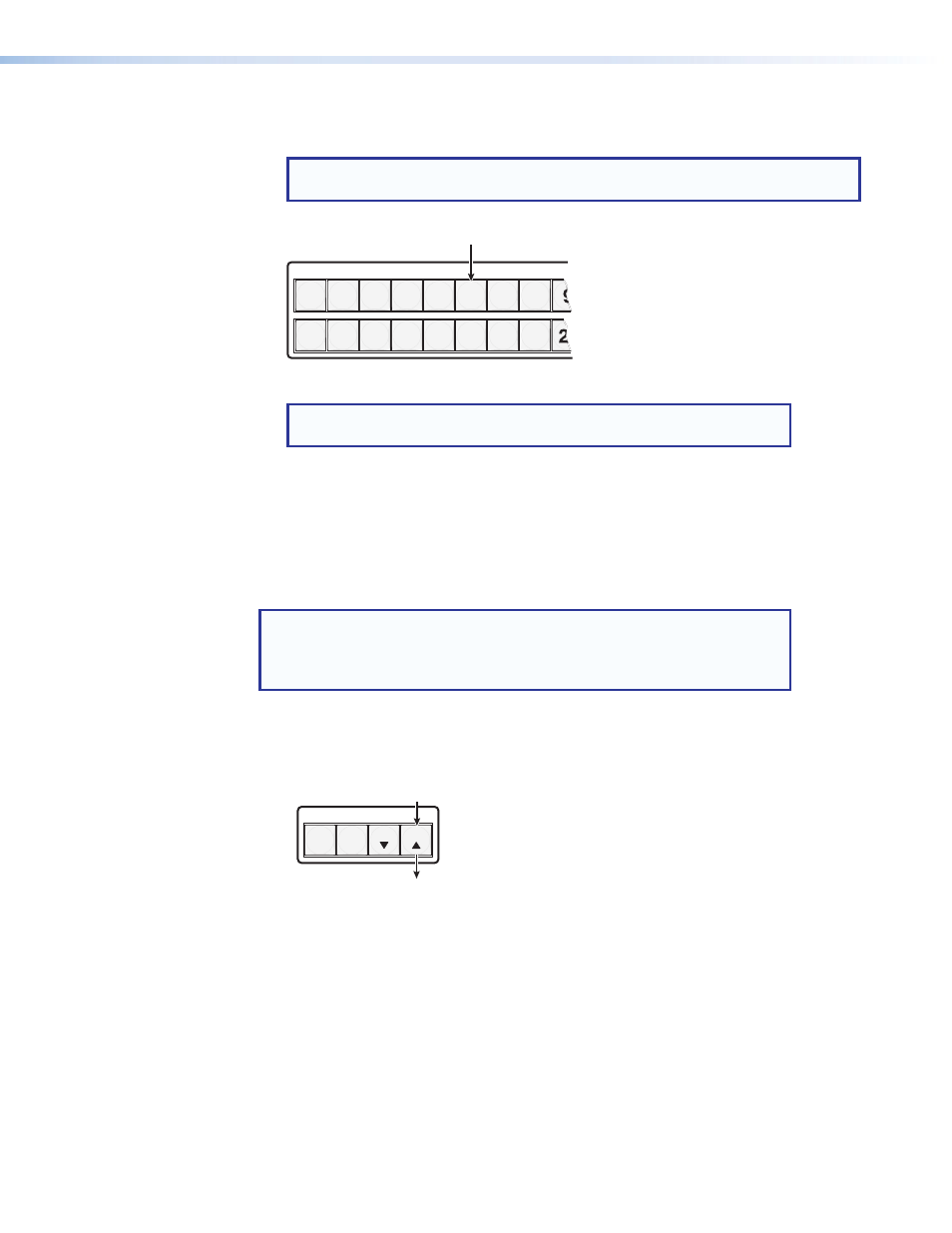

3.
Press the button for the input that you want to preview. The input button lights
red
when pressed, and the selected input is tied to the Preview output.
NOTE: Preview selection mode times out and returns to matrix mode after
30 seconds of non-use.
17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8
Press and release the desired input
button. The button lights
red.
INPUTS
Figure 31.
Selecting an Input to Preview
NOTE: Only one input at a time can be previewed. If another input
button was lit when you pressed Preview, it becomes unlit.
4.
Repeat steps
2 and 3 if you want to preview another input.
Viewing the Configuration
The current configuration can be viewed using the front panel buttons. The view-only
mode prevents inadvertent changes to the current configuration. View-only mode also
provides a way to mute outputs (see
NOTE: You cannot view configurations while the HDXP is in preview mode.
When you place it in view-only mode, the HDXP also switches to Matrix
mode. If you want to return the HDXP to preview mode, you must press
the Preview button again.
View the current configuration as follows:
1.
Press the Esc
>
button to clear any input button indications, output button
indications, or control button indications that may be on.
CONTROL
PRESET
ENTER
ESC
VIEW
Press the Esc
>
to clear all selections.
The button blinks once.
Figure 32.
Clearing All Selections
