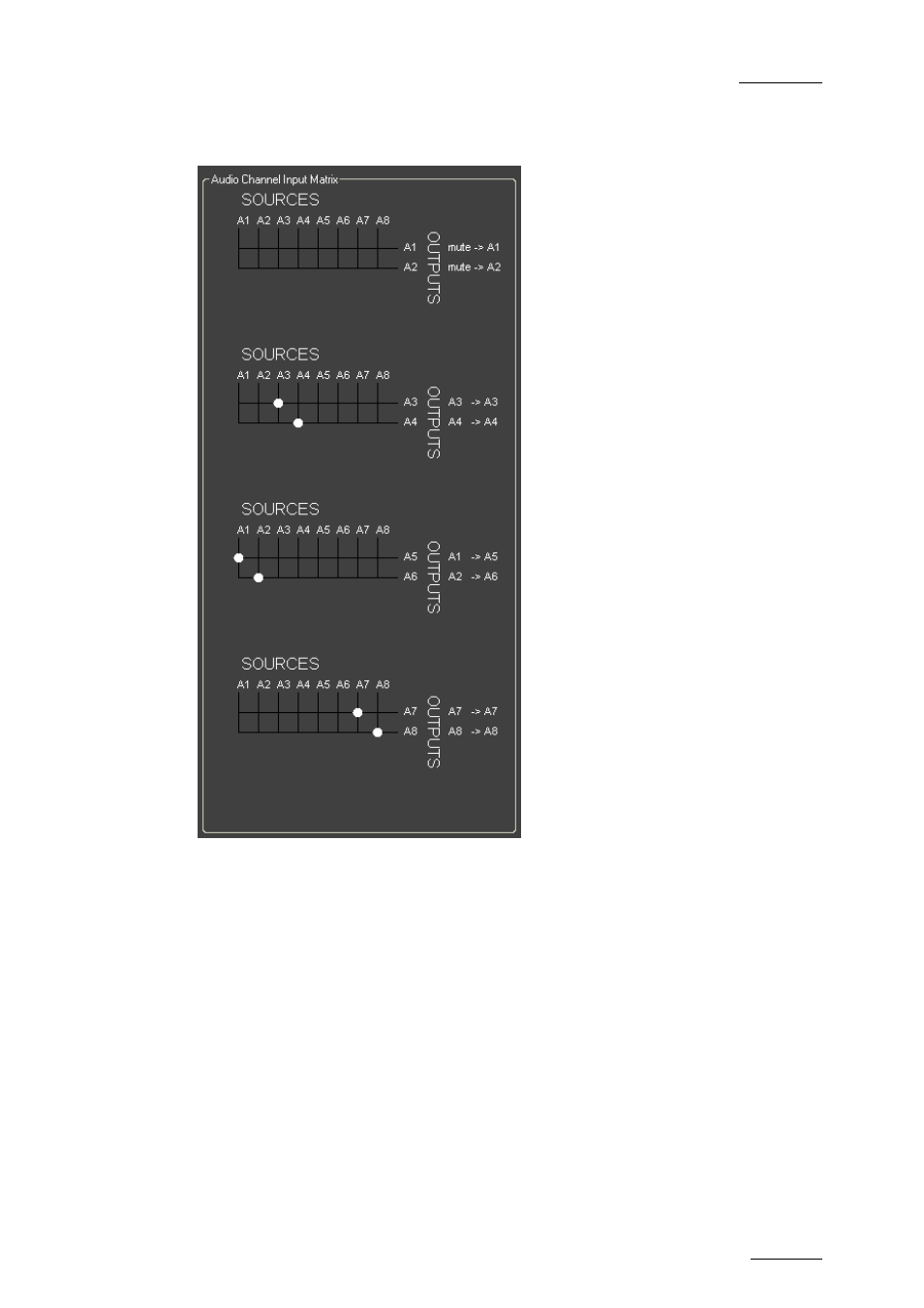

The following screenshot shows how you need to set up the audio channel input
matrix to get the result illustrated in the drawing above:
As you want to output the track G1
into the track G3, you will do the
following:
• On the G1 track, click on the
bullets to mute the channels a1
and a2.
• On the G3 track, click at the
intersection of the a1 source
channel and the a5 output channel
to route the a1 source to the a5
output.
• On the G3 track, click at the
intersection of the a2 source
channel and the a6 output channel
to route the a2 source to the a6
output.
