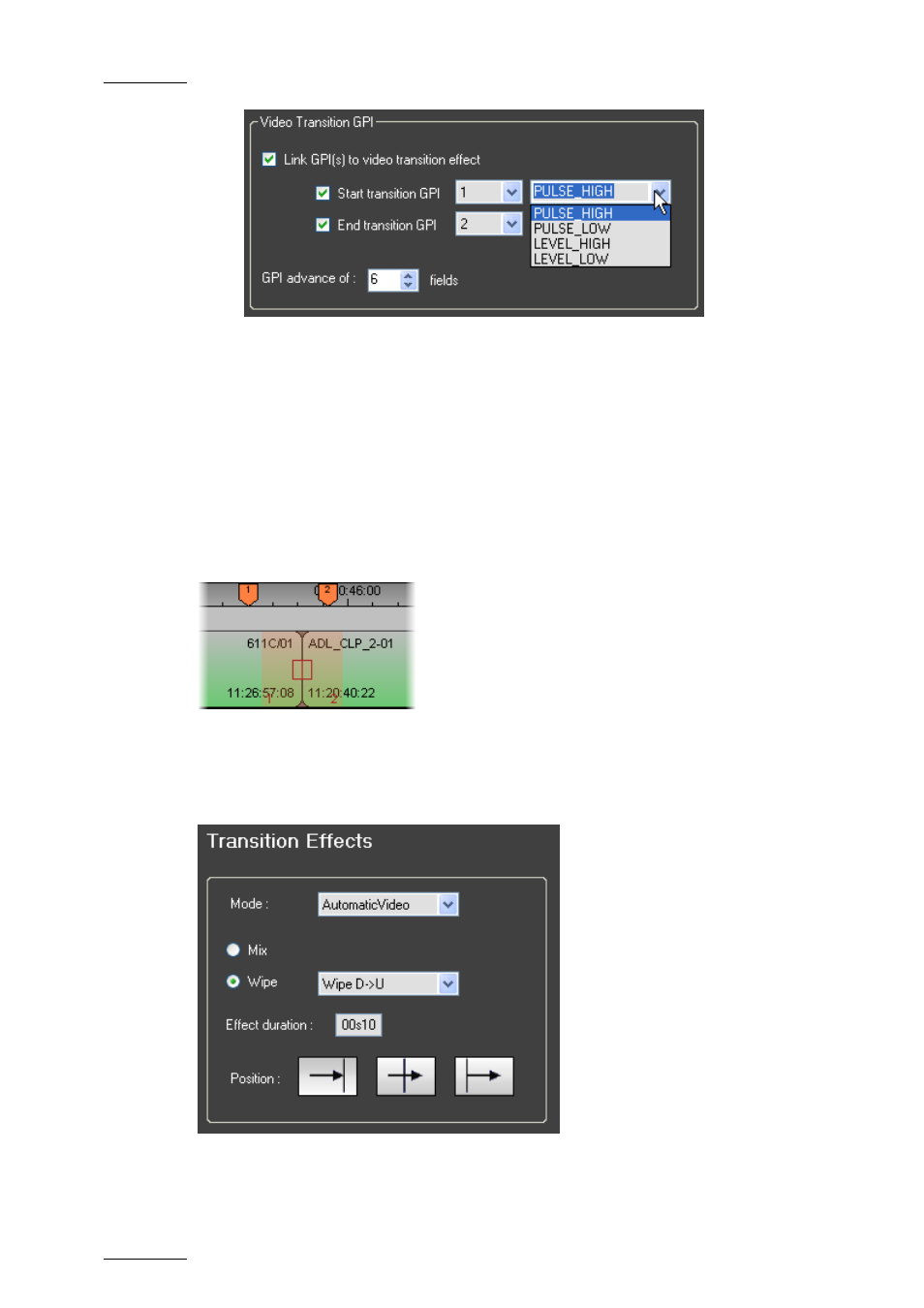

6. If you need to associate a GPI OUT to the end of the transition, apply steps
3 to 5 to the End Transition GPI.
7. If you want the GPI to be sent to the external device before the start and
the end of the transition effect, specify the number of fields for the advance
in the GPI advance spin box.
8. Click the Add or Modify button.
When the transition effect is added to the timeline, the Start transition and End
transition GPIs are displayed on the Timecode bar as orange markers. The GPI
number is mentioned on the marker and the marker position takes the advance into
account:
4.12.7 T
RANSITION
E
FFECT
S
ETTINGS
Transition Effect settings are available in the Tools > Settings menu, Timeline tab:
