IPDirector V.5.6 – User Manual – Part 7: Editing - IPEdit
EVS Broadcast Equipment – May 2009
Issue 5.6.A
159
H
OW TO
A
CCESS THE
S
WAP
/M
UTE
C
ONFIGURATION
W
INDOW
From the General Display of a Timeline

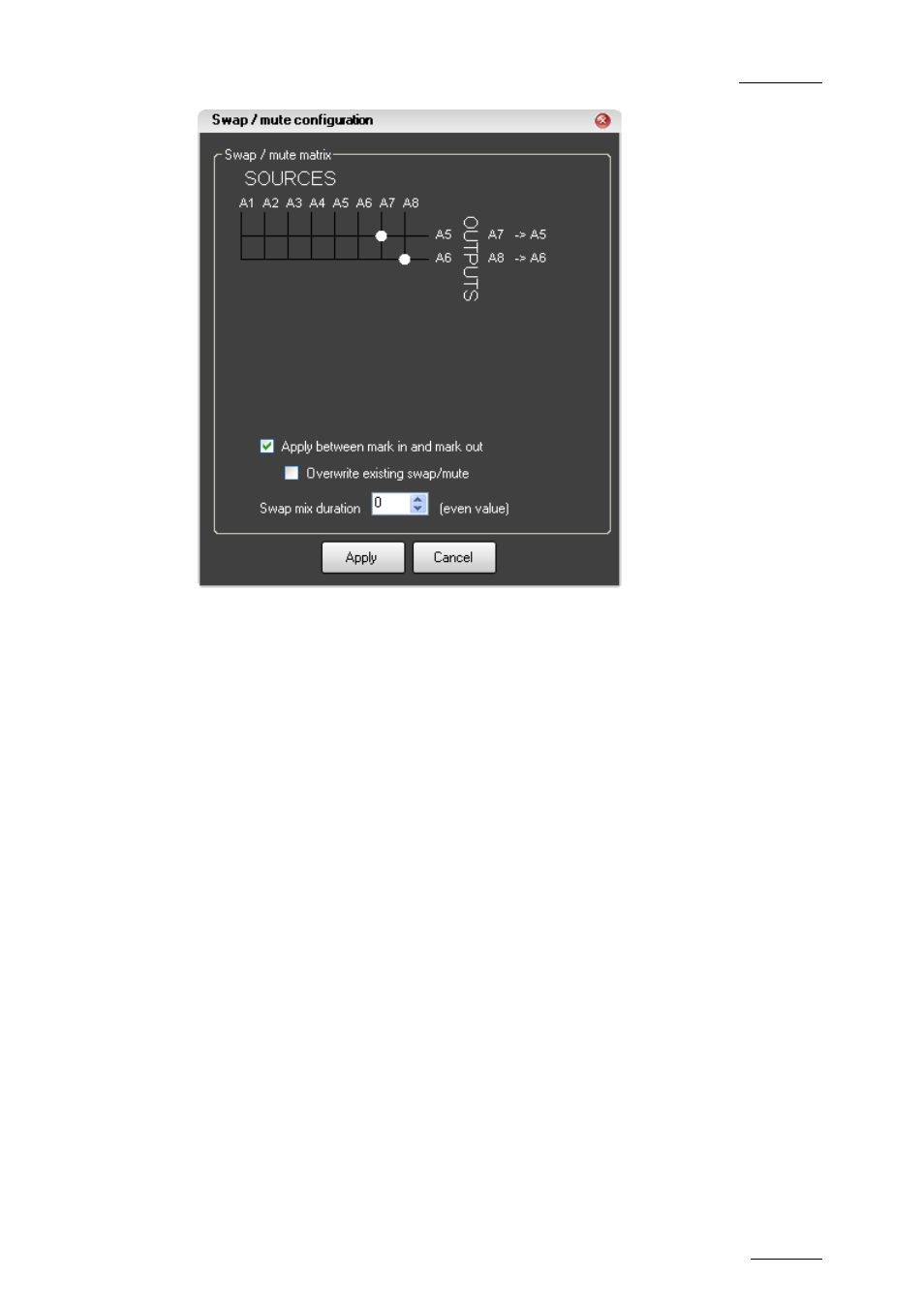

To access the Swap/Mute Configuration window, proceed as follows:
• Right-click the element in an audio track on which you want to define a swap
and Select Add Swap/Mute.
From the Swap/Mute Zoom Display of a Track
To access the Swap/Mute Configuration window, proceed as follows:
• After you have specified where you want to perform the swap, right-click on the
track where to define a swap and select Add Swap/Mute.
S
WAP
S
OURCES
/ O
UTPUTS
Description
The swap sources are the audio mono channels available in all the audio tracks of
the source media added to the timeline.
The swap outputs are the audio channels of the element as they have to be
played in the timeline.
Uses
In the Swap/Mute Configuration window of a given track, you can define the
following:
• which source channels will be sent to the audio channels of this track when the
timeline is played.
