• LEDs—Two LEDs on the faceplate display the CPU and application status.

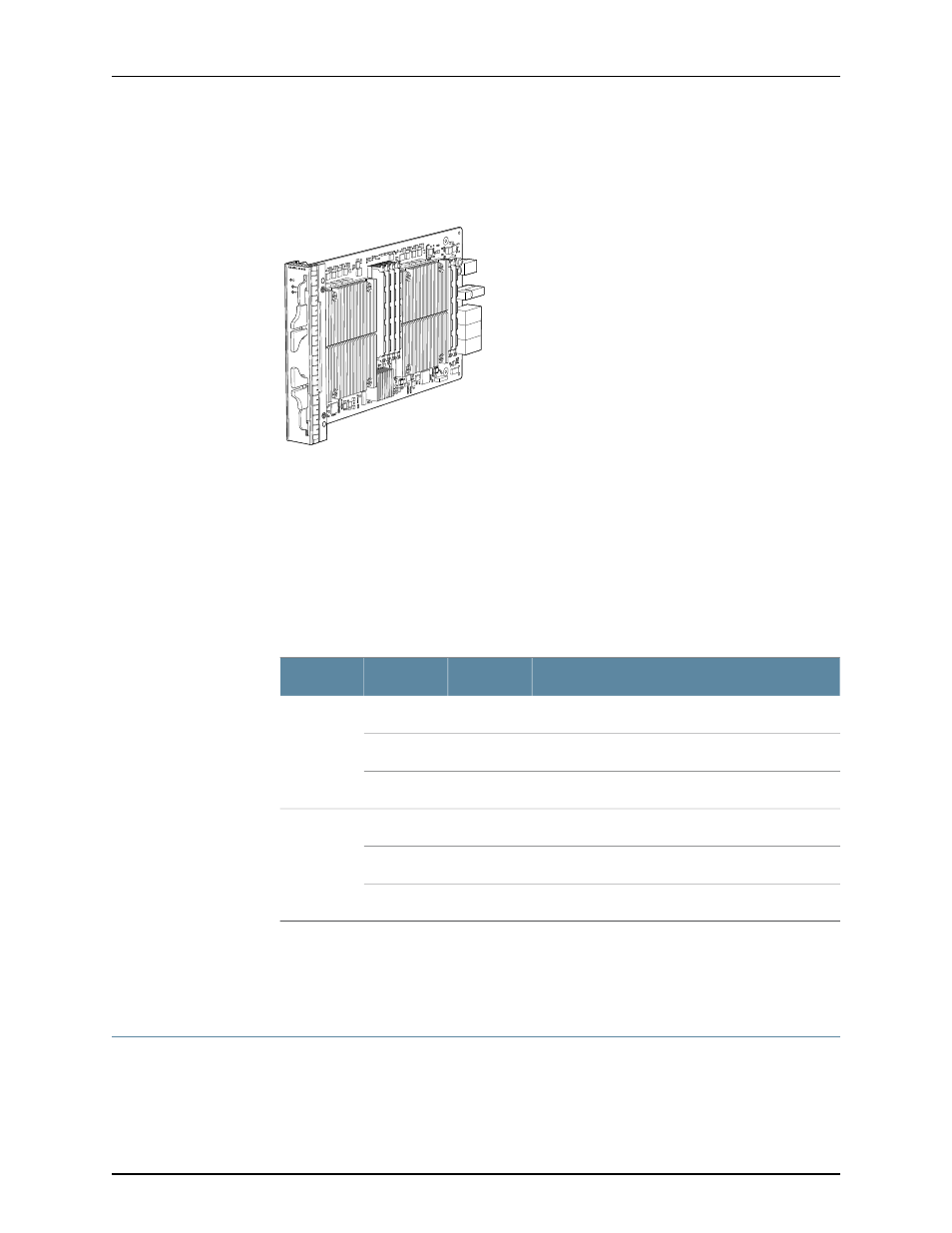

Figure 13: Application Services Modular Processing Card (AS MXC)
g006672
Related
Documentation
MX480 AS MXC LEDs on page 25 •
• Replacing an MX480 AS MXC on page 220
MX480 AS MXC LEDs
Two LEDs ( CPU and AP ) indicate the status of the AS MXC and are located on the AS
MXC. Table 5 on page 25 describes the functions of the AS MXC LEDs.
Table 5: AS MXC LEDs
Description State Color Label
AS MXC operates normally. On steadily Green CPU
AS MXC has an error or has failed. On steadily Red
AS MXC is offline. Off –
AS MXC applications operation is normal. On steadily Green AP
AS MXC applications operation has an error. On steadily Red
AS MXC applications are not activated. Off –
Related
Documentation
MX480 Application Services Modular Processing Card Description on page 24 •
• Replacing an MX480 AS MXC on page 220
MX480 Host Subsystem Overview
• MX480 Host Subsystem Description on page 26
• MX480 Host Subsystem LEDs on page 26
