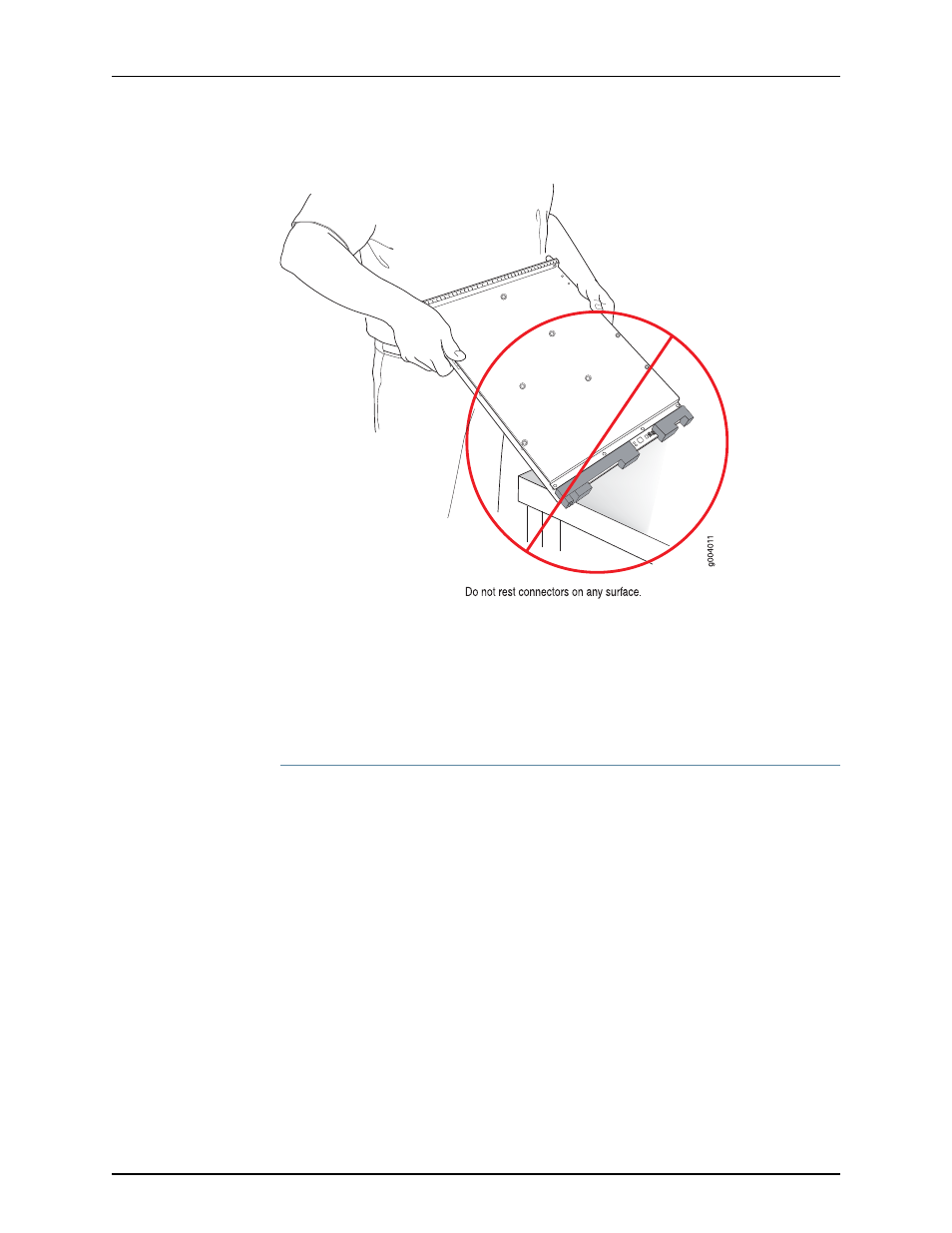

Figure 73: Do Not Rest the DPC on an Edge
If you must rest the DPC temporarily on an edge while changing its orientation between
vertical and horizontal, use your hand as a cushion between the edge and the surface.
Related
Documentation
MX480 DPC Terminology on page 139 •
• Storing an MX480 DPC on page 142
Storing an MX480 DPC
You must store a DPC as follows:
• In the router
• In the container in which a spare DPC is shipped
• Horizontally and sheet metal side down
When you store a DPC on a horizontal surface or in the shipping container, always place
it inside an antistatic bag. Because the DPC is heavy, and because antistatic bags are
fragile, inserting the DPC into the bag is easier with two people. To do this, one person
holds the DPC in the horizontal position with the faceplate facing the body, and the other
person slides the opening of the bag over the DPC connector edge.
If you must insert the DPC into a bag by yourself, first lay the DPC horizontally on a flat,
stable surface, sheet metal side down. Orient the DPC with the faceplate facing you.
Carefully insert the DPC connector edge into the opening of the bag, and pull the bag
toward you to cover the DPC.
