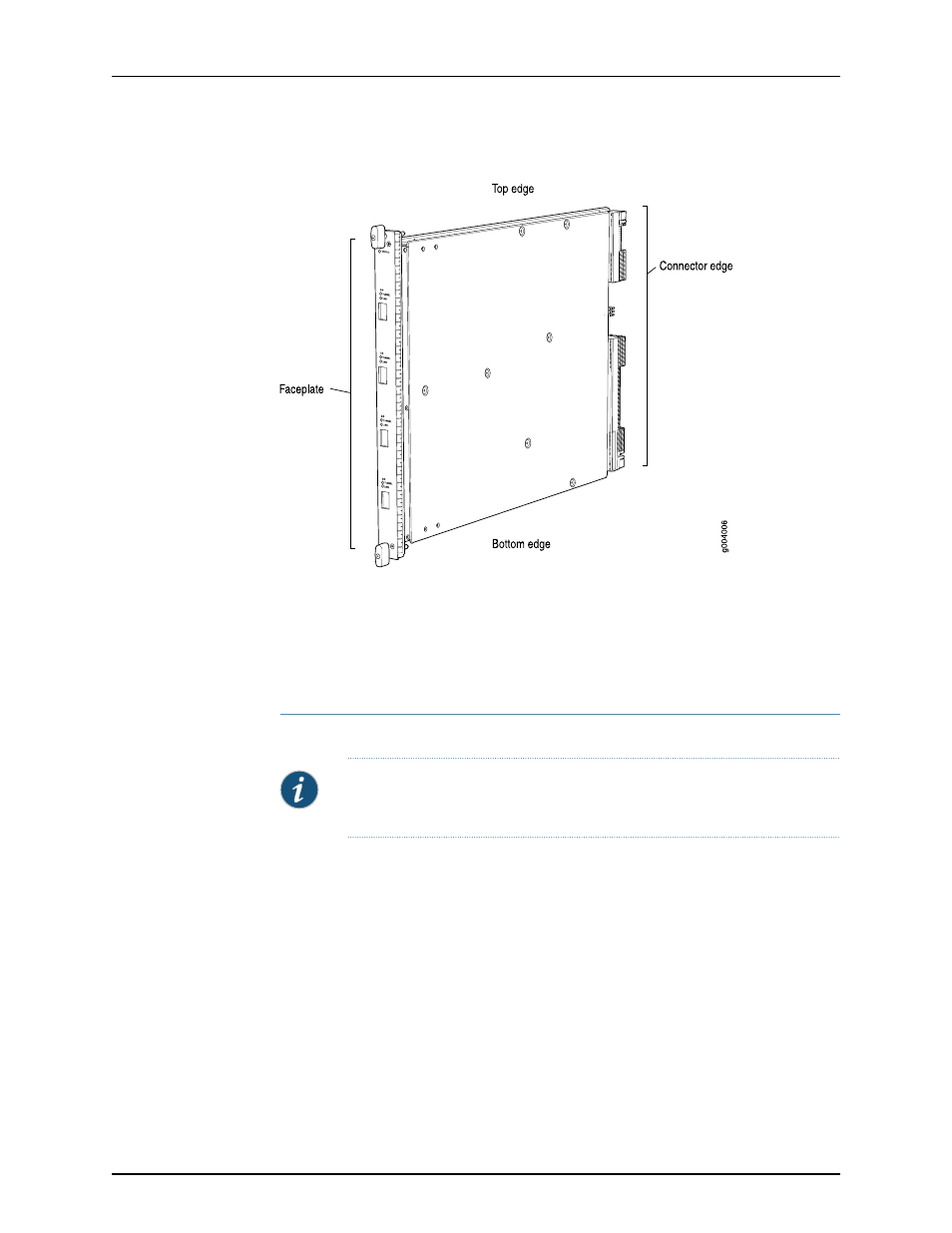

Figure 71: DPC Edges
Related
Documentation
Holding an MX480 DPC on page 140
•
•
Installing a Cable on an MX480 DPC, MPC, MIC, or PIC on page 224
•
Maintaining MX480 DPCs on page 130
Holding an MX480 DPC
When carrying a DPC, you can hold it either vertically or horizontally.
NOTE:
A DPC weighs 14.5 lb (6.6 kg). Be prepared to accept the full weight
of the DPC as you lift it.
To hold a DPC vertically:
1.
Orient the DPC so that the faceplate faces you. To verify orientation, confirm that the
text on the DPC is right-side up and the electromagnetic interference (EMI) strip is on
the right-hand side.
2.
Place one hand around the DPC faceplate about a quarter of the way down from the
top edge. To avoid deforming the EMI shielding strip, do not press hard on it.
3.
Place your other hand at the bottom edge of the DPC.
If the DPC is horizontal before you grasp it, place your left hand around the faceplate and
your right hand along the bottom edge.
