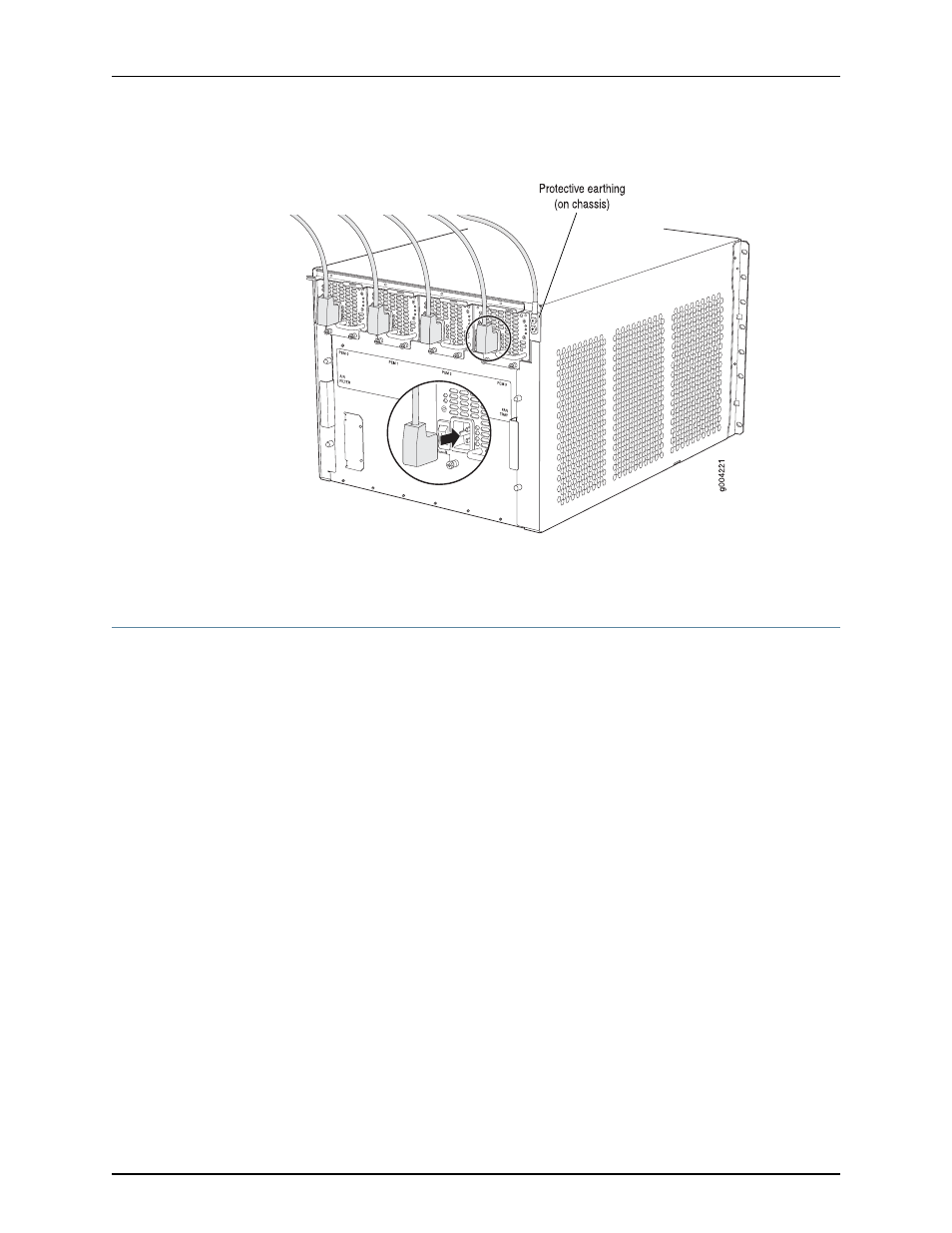

Figure 66: Connecting AC Power to the Router (110V)
Related
Documentation
Preventing Electrostatic Discharge Damage to an MX480 Router on page 248
•
Installing the MX480 AC High-Capacity Power Supplies
To install a high-capacity AC power supply:
1.
Move the AC input switch next to the appliance inlet on the power supply to the off (
O
)
position.
2.
Using both hands, slide the power supply straight into the chassis until the power
supply is fully seated in the chassis slot as shown in
. The power
supply faceplate should be flush with any adjacent power supply faceplate or blank
installed in the power supply slot.
3.
Tighten both captive screws at the bottom of the power supply.
4.
Attach the power cord to the power supply.
5.
Attach the power cord to the AC power source, and switch on the dedicated customer
site circuit breaker. Follow the instructions for your site.
6.
Move the AC input switch next to the appliance inlet on the power supply to the on
(
|
) position and observe the status LEDs on the power supply faceplate. If the power
supply is correctly installed and functioning normally, the
AC OK
and
DC OK
LEDs light
steadily and the
PS FAIL
LED is not lit.
