NOTE:

The wall-mounting kit is not shipped with the device and must be

ordered separately.

To install the device on a wall:

1.

Place the device on a flat and level surface with Juniper Networks logo embossed on
the top cover facing up. Ensure that rubber feet are attached to the bottom of the
chassis.

2.

Position a mounting bracket on each side of the chassis as shown in

Figure 20 on page 64

.

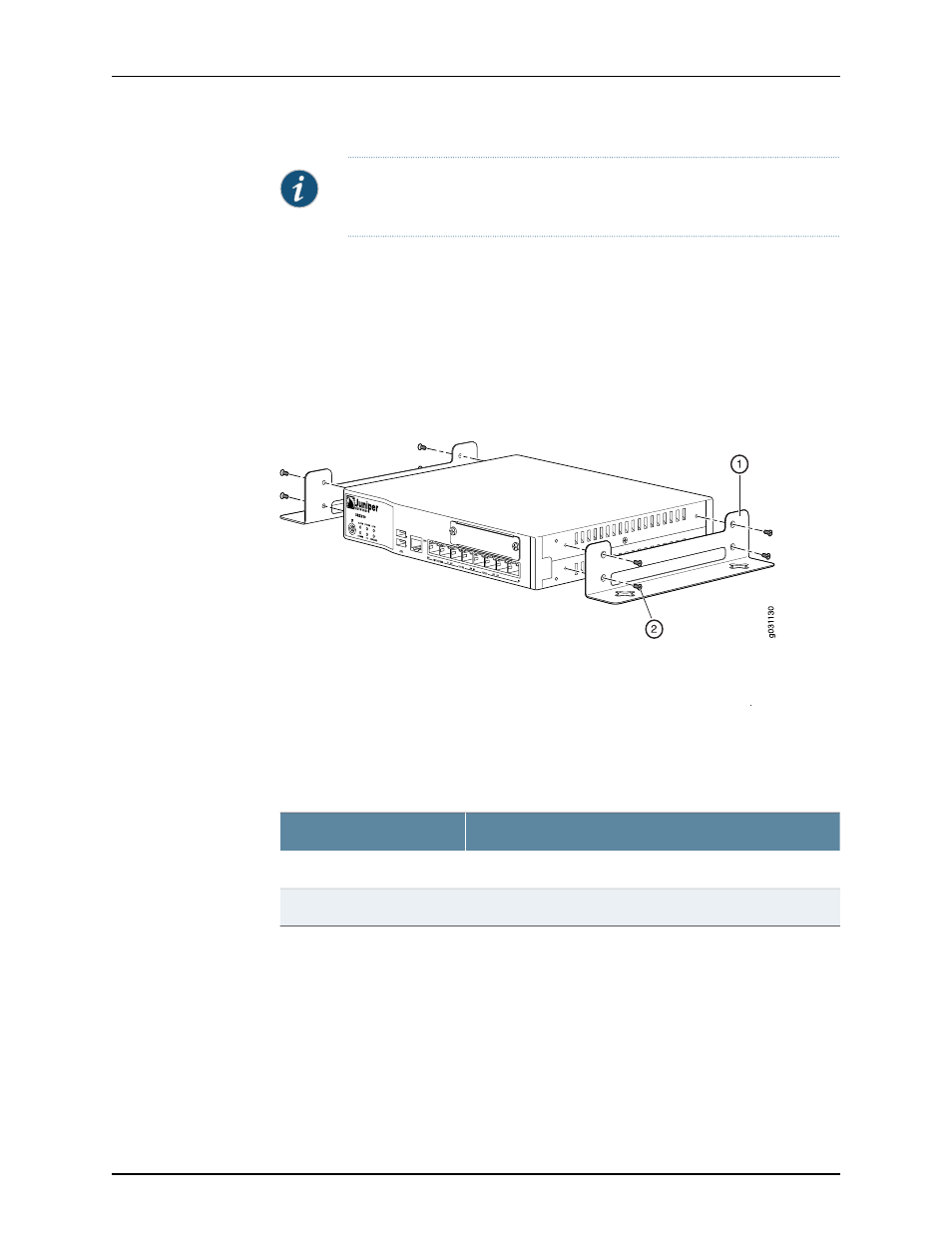

Figure 20: SRX210 Services Gateway Wall Installation — Attaching the
Mounting Brackets

Table 28 on page 64

lists the parts used for installing the SRX210 Services Gateway

on a wall. The numbers in

Figure 20 on page 64

correspond to the numbers in

Table 28 on page 64

.

Table 28: SRX210 Services Gateway Wall Installation Parts

Part

Numbers

Mounting brackets

1

Screws (mounting bracket)

2

3.

Use a number-1 Phillips screwdriver to install the screws that secure the mounting
brackets to the chassis.

4.

If you are using wall anchors to support the chassis, install two pairs of anchors on
the wall with the mounting brackets attached.

5.

Have one person grasp the sides of the device, lift it, and position it on the wall.
