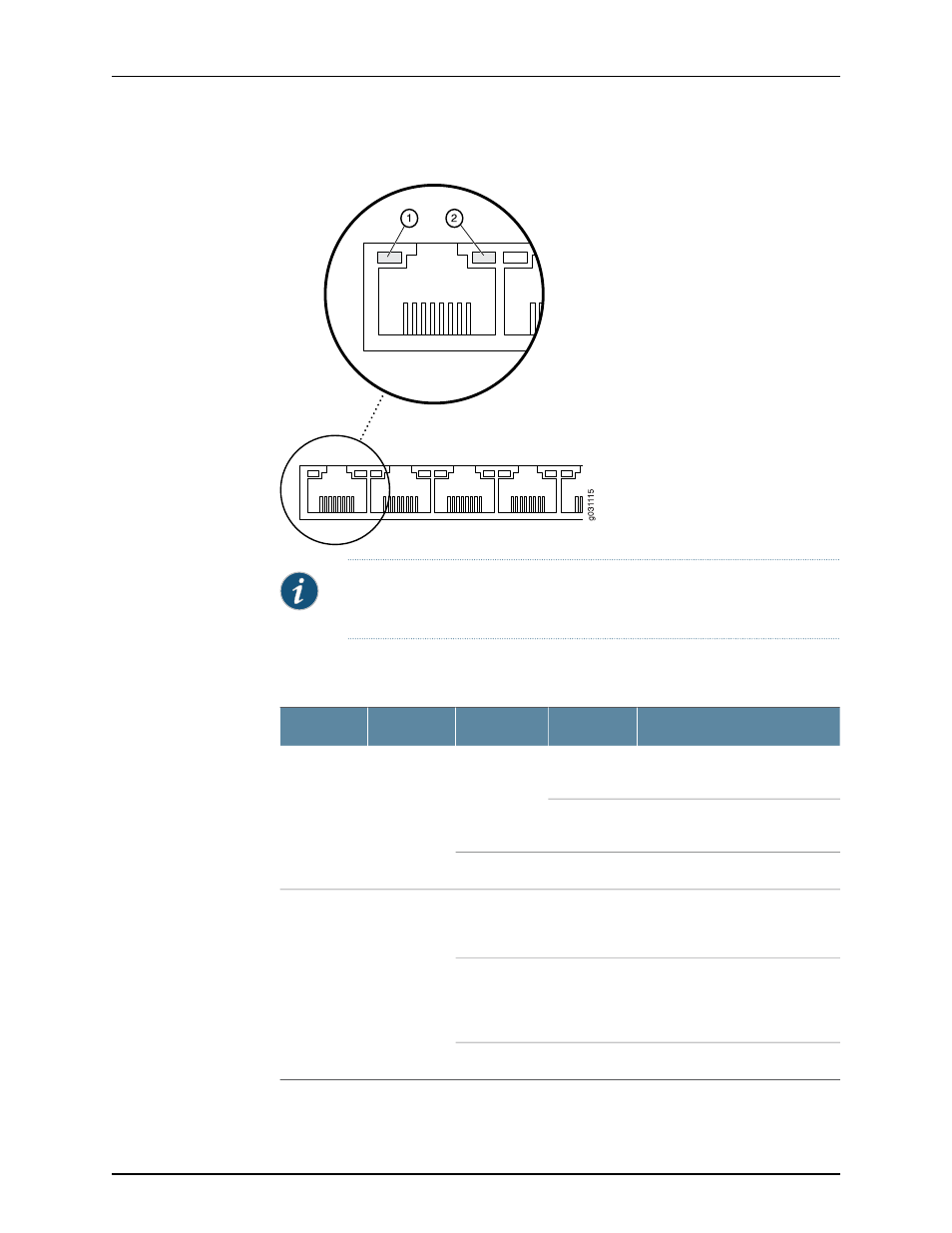

Figure 5: SRX210 Services Gateway Ethernet Port LEDs

NOTE:

The numbers in

Figure 5 on page 16

correspond to the numbers in

Table 10 on page 16

.

Table 10 on page 16

describes the built-in Ethernet port LEDs.

Table 10: SRX210 Services Gateway Built-In Ethernet Port LEDs

Description

State

Color

Function

Number

Link is active. Data
communication is taking place.

Blinking

Green

TX/RX/LINK
LED

1

Link is active. No data
communication is taking place.

Solid

Link is inactive.

Off

Unlit

Power over Ethernet is on and the
connected power device is
receiving power.

Solid

Green

PoE LED

2

PoE (Power over Ethernet) is on,
but the connected power device
is not receiving power (device
fault or not enough power).

Solid

Yellow

PoE is off.

Off

Unlit
