Table 6: SRX210 Services Gateway Front Panel Components (continued)
Component Number
Universal Serial Bus (USB) ports 5
Console port 6
Gigabit Ethernet ports and Fast Ethernet ports 7
For more information on the front panel components, see the following topics:
• SRX210 Services Gateway Built-In Interfaces on page 11
• SRX210 Services Gateway LEDs on page 13
• SRX210 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 17
SRX210 Services Gateway Back Panel
Figure 3 on page 10 illustrates the back panel of the SRX210 Services Gateway.

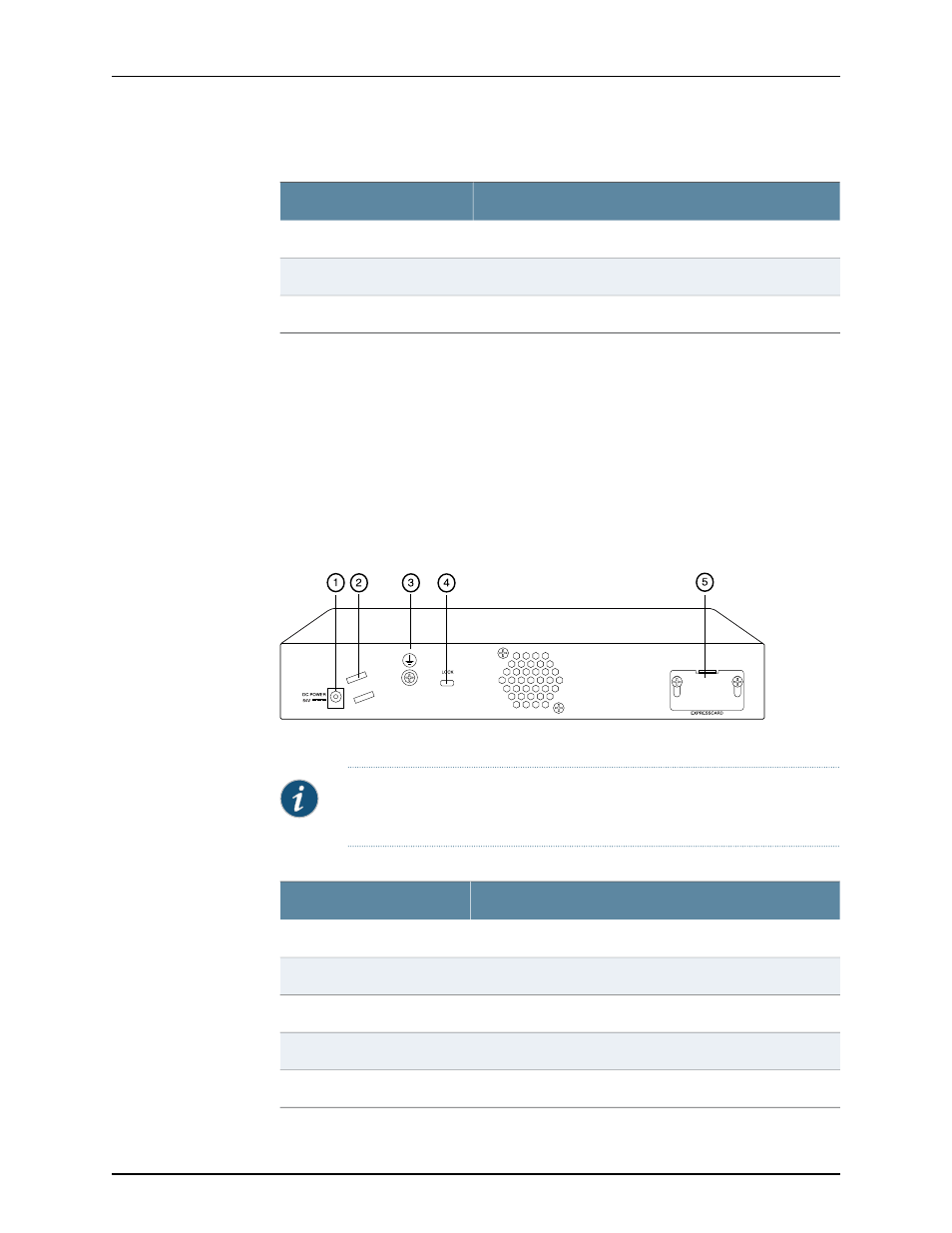

Figure 3: SRX210 Services Gateway Back Panel
g03
1
1
13
Table 7 on page 10 lists the back panel components of the SRX210 Services Gateway.
NOTE: The numbers in Figure 3 on page 10 correspond to the numbers in
Table 7 on page 10 .
Table 7: SRX210 Services Gateway Back Panel Components
Component Number
Power supply point 1
Cable tie holder 2
Grounding point 3
Lock 4
ExpressCard slot 5
