Front Panel LEDs
Figure 4 on page 14 shows the SRX210 Services Gateway front panel LEDs.
Table 9 on page 14 lists the LED indicators on the SRX210 Services Gateway front panel.

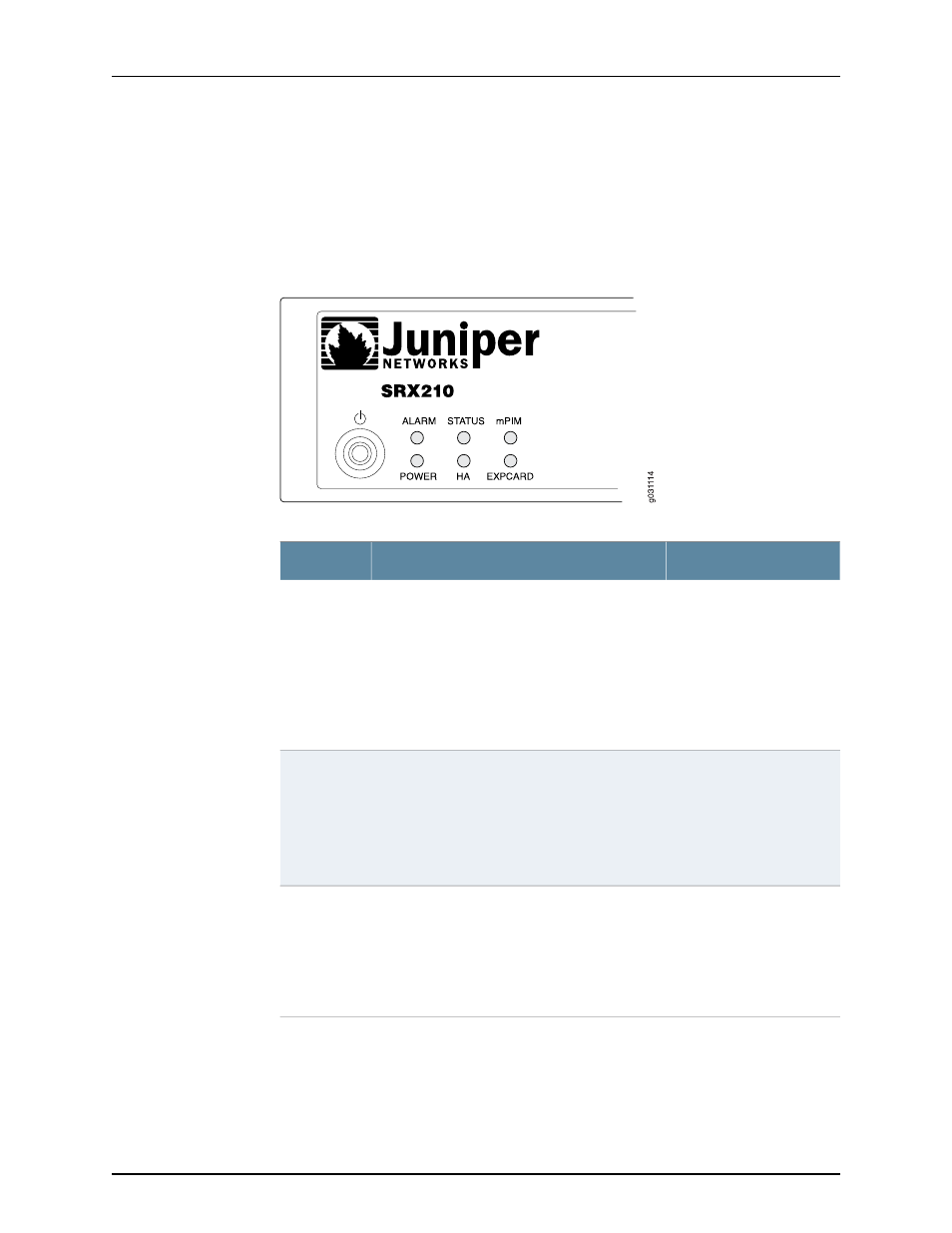

Figure 4: SRX210 Services Gateway Front Panel LEDs
Table 9: SRX210 Services Gateway Front Panel Components LEDs
Usage Description Component
The Alarm LED can be used
to gather information on
major or minor alarms or to
determine if the device is
functioning normally. The Alarm LED has the following indicator colors:
• Solid red indicates a major alarm.
• Solid amber indicates a minor alarm.
• Off indicates that the device is starting up.
NOTE: When the system is up and running, if the
Alarm LED is off, it indicates that no alarms are
present on the device.
Alarm LED
The Status LED can be used
to determine whether the
device is starting up, is
functioning normally, or has
failed. The Status LED has the following indicator colors:
• Solid green indicates that the device is
functioning normally.
• Solid amber indicates that the device is starting
up.
• Solid red indicates that the device has failed.
Status LED
The Mini-PIM LED can be
used to determine if the
Mini-PIM is present and
detected by the device. The Mini-PIM LED has the following indicator
colors:
• Solid green indicates that the Mini-PIM is
functioning normally.
• Off indicates that the Mini-PIM is not present
or not detected by the device.
Mini-PIM LED
