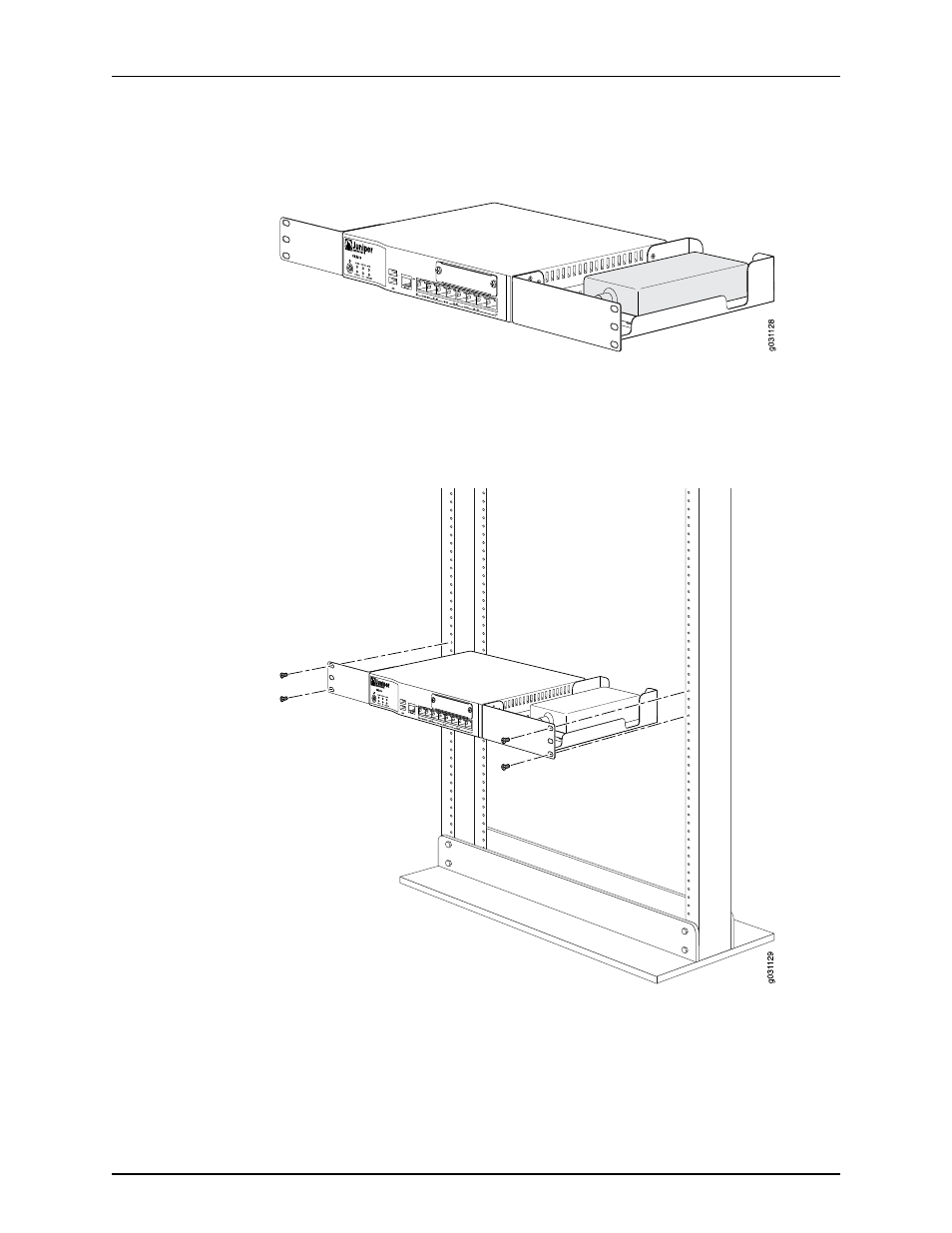

Figure 16: SRX210 Services Gateway Rack Installation — Positioning the
Power Supply Adapter Tray
4.
Have one person grasp the sides of the device, lift it, and position it in the rack.
5.
Align the bottom hole in each mounting bracket with a hole in each rack rail as shown
in
, making sure the chassis is level.
Figure 17: SRX210 Services Gateway Rack Installation — Hanging the
Services Gateway in a Rack
6.
Have a second person install a mounting screw into each of the two aligned holes.
Use a number-3 Phillips screwdriver to tighten the screws.
7.
Install the second screw in each mounting bracket.
8.
Verify that the mounting screws on one side of the rack are aligned with the mounting
screws on the opposite side and that the device is level.
