CHAPTER 2
SRX210 Services Gateway Hardware
Components and Specifications
This chapter includes the following topics:
• SRX210 Services Gateway Specifications on page 7
• SRX210 Services Gateway Front Panel and Back Panel Views (Low Memory, High
Memory, and PoE Versions) on page 9
• SRX210 Services Gateway Built-In Interfaces on page 11
• SRX210 Services Gateway LEDs on page 13
• SRX210 Services Gateway Boot Devices and Dual-Root Partitioning Scheme on page 17
• SRX210 Services Gateway Cooling System on page 18
• SRX210 Services Gateway Power Supply on page 19
SRX210 Services Gateway Specifications
The SRX210 Services Gateway chassis is a rigid sheet metal structure of 1 rack unit (U)
height that houses all the other hardware components.

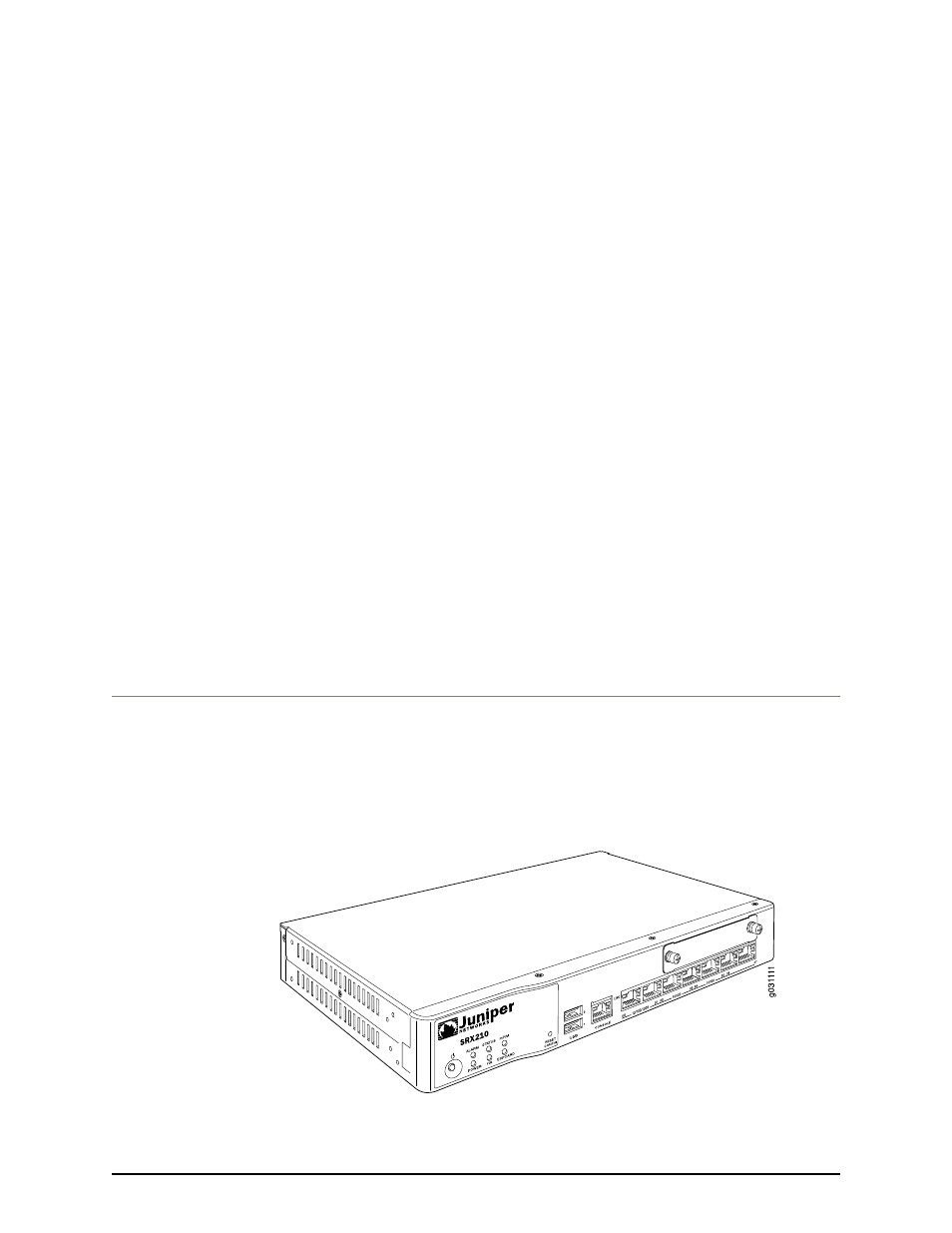

Figure 1 on page 7 shows the SRX210 Services Gateway chassis (for low memory, high
memory, and PoE models).
Figure 1: SRX210 Services Gateway
7 Copyright © 2013, Juniper Networks, Inc.
