Hitachi Command Control Interface (CCI) User and Reference Guide 77
RAID Manager
Read(Instance request)
Getting LBA
Write with LBA
(to get configuration)
Command device
Actual allocation
Getting configuration
Table
0
1
HOST RAID

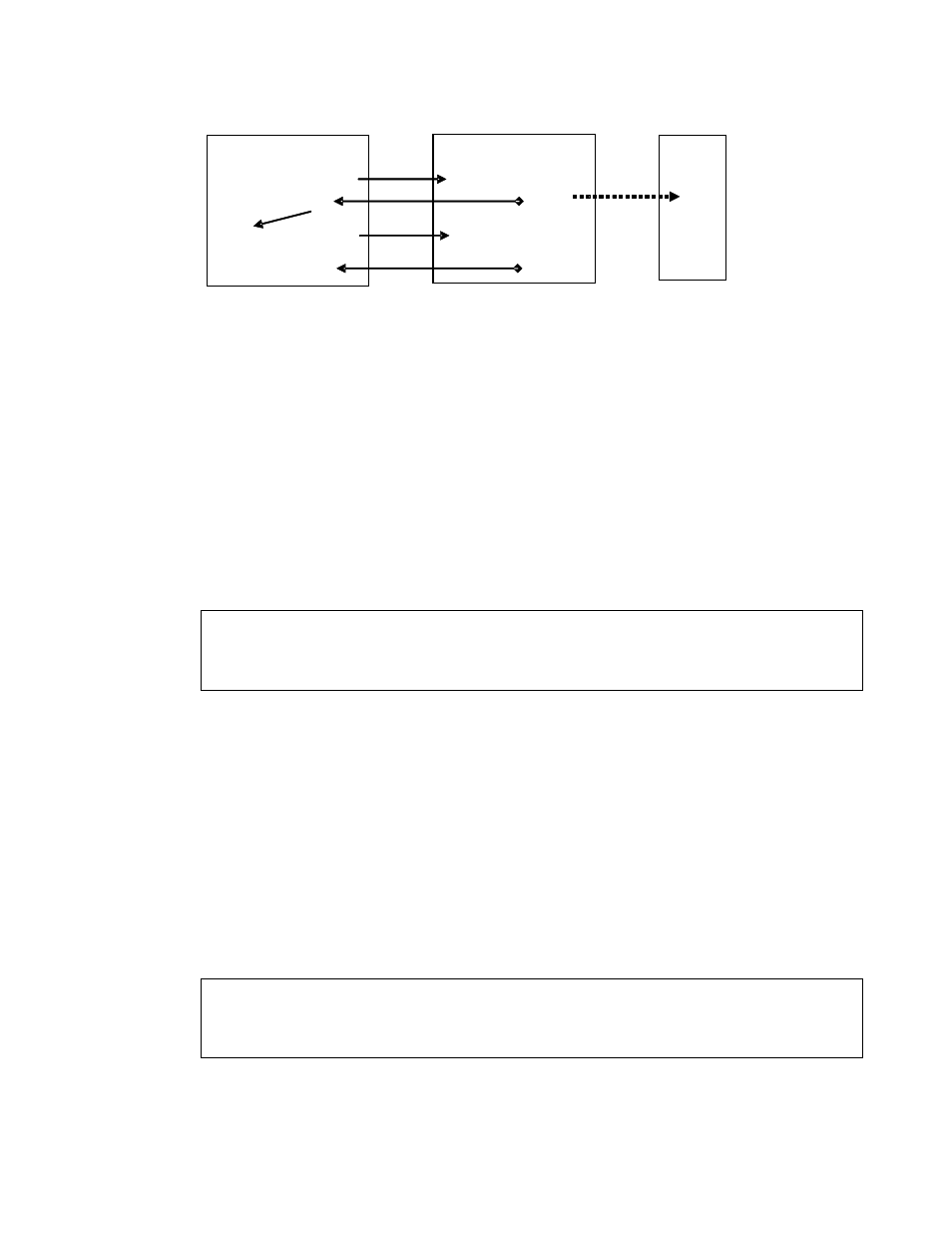

Figure 2.40 Hitachi TrueCopy Remote Configuration Example
Example of CCI commands with HOSTA:
„
Designate a group name (Oradb) and a local host P-VOL a case.
# paircreate -g Oradb -f never -vl
This command creates pairs for all LUs assigned to group Oradb in the configuration
definition file (two pairs for the configuration in Figure 2.40.
„
Designate a volume name (oradev1) and a local host P-VOL a case.
# paircreate -g Oradb -d oradev1 -f never -vl
This command creates pairs for all LUs designated as oradev1 in the configuration
definition file (CL1-A,T1,L1 and CL1-D,T2,L1 for the configuration in Figure 2.40).
„
Designate a group name and display pair status.
# pairdisplay -g Oradb
Group PairVol(L/R) (P,T#,L#), Seq#, LDEV#..P/S, Status, Fence, Seq#, P-LDEV# M
oradb oradev1(L) (CL1-A, 1,1) 30053 18...P-VOL COPY NEVER, 30054 19 -
oradb oradev1(R) (CL1-D, 2,1) 30054 19...S-VOL COPY NEVER, ----- 18 -
oradb oradev2(L) (CL1-A, 1,2) 30053 20...P-VOL COPY NEVER, 30054 21 -
oradb oradev2(R) (CL1-D, 2,2) 30054 21...S-VOL COPY NEVER , ----- 20 -
Example of CCI commands with HOSTB:
„
Designate a group name and a remote host P-VOL a case.
# paircreate -g Oradb -f never -vr
This command creates pairs for all LU designated as Oradb in the configuration
definition file (two pairs for the configuration in Figure 2.40).
„
Designate a volume name (oradev1) and a remote host P-VOL a case.
# paircreate -g Oradb -d oradev1 -f never -vr
This command creates pairs for all LUs designated as oradev1 in the configuration
definition file (CL1-A,T1,L1 and CL1-D,T2,L1 for the configuration in Figure 2.40).
„
Designate a group name and display pair status.
# pairdisplay -g Oradb
Group PairVol(L/R) (P,T#,L#), Seq#,LDEV#..P/S, Status, Fence, Seq#,P-LDEV# M
oradb oradev1(L) (CL1-D, 2,1) 30054 19...S-VOL COPY NEVER, ----- 18 -
oradb oradev1(R) (CL1-A, 1,1) 30053 18...P-VOL COPY NEVER, 30054 19 -
oradb oradev2(L) (CL1-D, 2,2) 30054 21...S-VOL COPY NEVER, ----- 20 -
oradb oradev2(R) (CL1-A, 1,2) 30053 20...P-VOL COPY NEVER, 30054 21 -
