Hitachi Command Control Interface (CCI) User and Reference Guide 307
4.18 LDM Volume Discovery and Flushing for Windows
Windows systems support the Logical Disk Manager (LDM) (such as VxVM), and a logical drive
letter is typically associated with an LDM volume (“\Device\HarddiskVolumeX”). Therefore,
the user will not be able to know the relationship between LDM volumes and the physical
volumes of the RAID storage system. The user makes the CCI configuration file, and then
needs to know the relationship that is illustrated in Figure 4.76.
ORB ORA
Group in CCI configuration file
Mounted point
G: F: E:
Volume{guid}
Volume{guid}
Volume{guid}
PhysicalDriveY
\Device\HarddiskDmVolumes
\...\VolumeX or
\...\StripeX
\Device\HarddiskX\DR??
\Device\
HarddiskVolumeX
\Device\
HarddiskVolumeY
Mirrored Volume
Drive
Letter
LDM
Volumes
Physical
Volumes

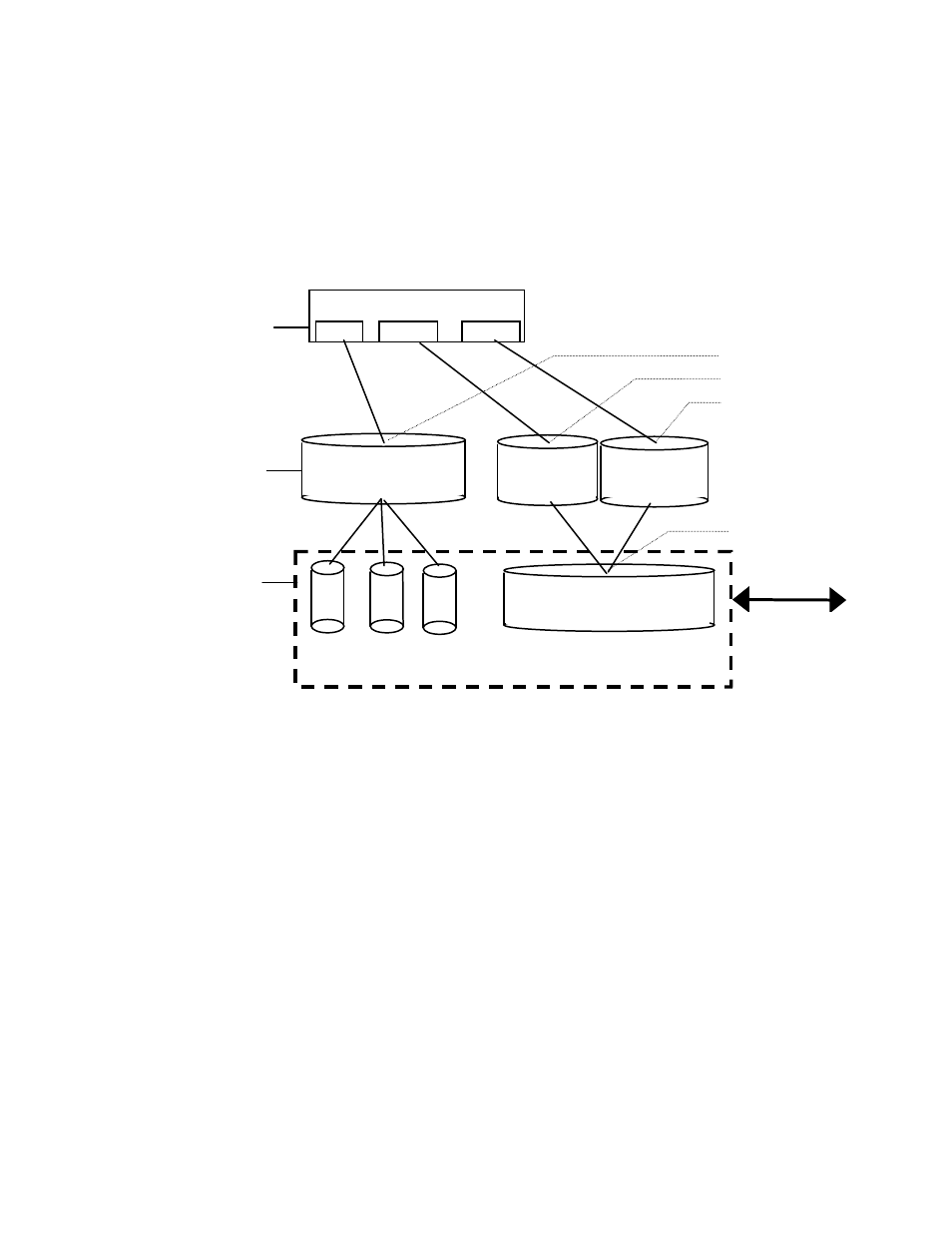

Figure 4.76 LDM Volume Configuration
