Hitachi Command Control Interface (CCI) User and Reference Guide 53
HUB
ESCON ®
ESCON ®
unitID =0
unitID =1 Command
device
Ser# 30015
ESCON ® /
Fibre-channel
Command
device
Ser#30014
HORCM
(CCI)
Server
unitID0 = Ser# 30014
unitID1 = Ser# 30015
HORCM
(CCI)
Server
unitID0 = Ser# 30014
unitID1 = Ser# 30015

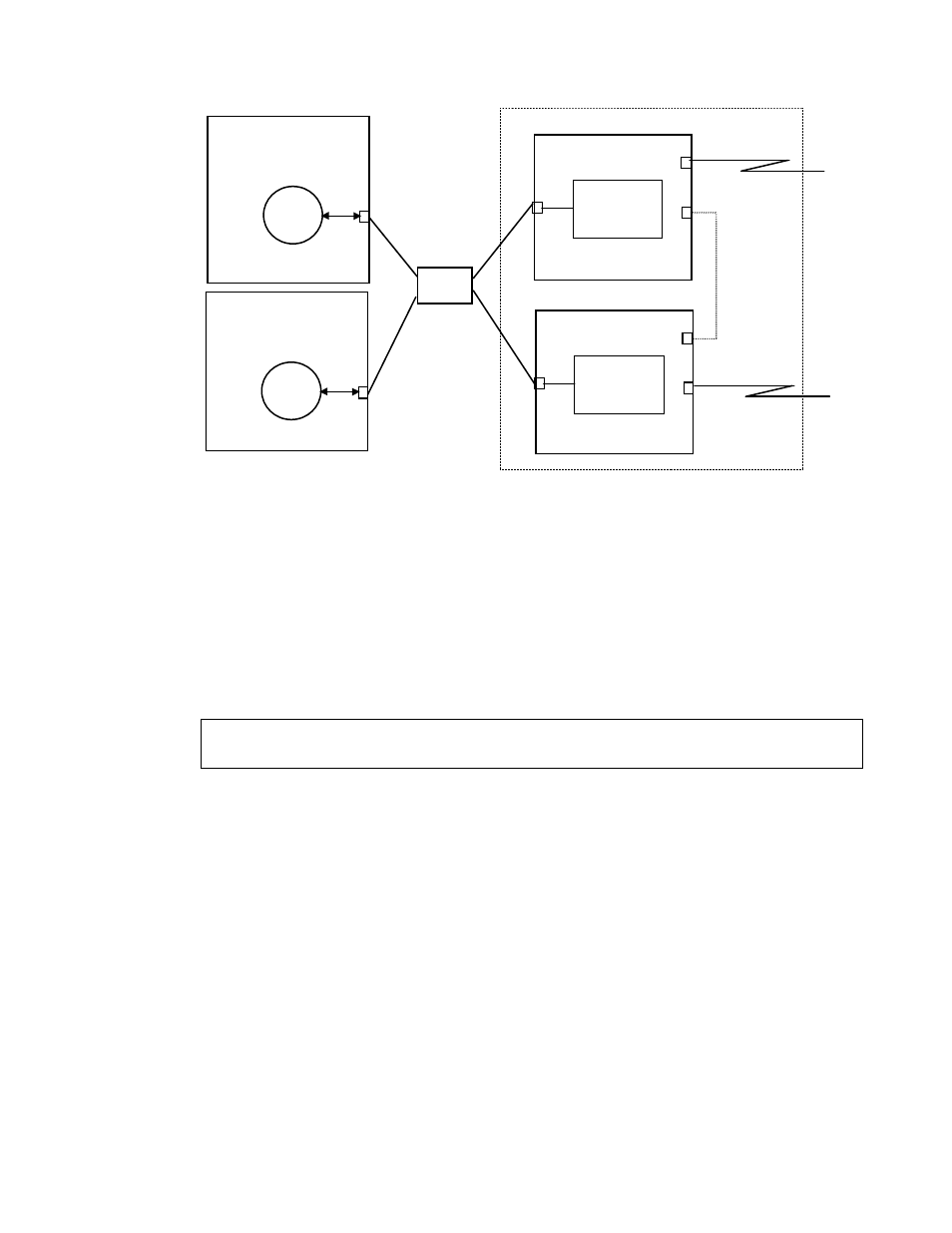

Figure 2.26 Configuration and Unit IDs for Multiple Storage Systems
dev_name for Windows
In Windows SAN environment,” Volume{guid}” is changed on every re-boot under
MSCS/Windows 2003/2008, if Windows finds the same signature on the command device
connected with Multi-Path. Therefore, the user must find NEW “Volume{guid}” and change
“Volume{guid}” described in the CCI configuration file. CCI supports the following naming
format specifying Serial#/LDEV#/Port# as notation of the command device for only Windows.
\\.\CMD-Ser#-ldev#-Port#
HORCM_CMD
#dev_name dev_name dev_name
\\.\CMD-30095-250-CL1-A
To allow more flexibility, CCI allows the following format.
„
For minimum specification. Specifies to use any command device for Serial#30095
\\.\CMD-30095
If Windows has two different array models that share the same serial number, fully
define the serial number, ldev#, port and host group for the CMDDEV.
„
For under Multi Path Driver. Specifies to use any port as the command device for
Serial#30095, LDEV#250
\\.\CMD-30095-250
„
For full specification. Specifies the command device for Serial#30095, LDEV#250
connected to Port CL1-A, Host group#1
\\.\CMD-30095-250-CL1-A-1
„
Other examples
\\.\CMD-30095-250-CL1-A
\\.\CMD-30095-250-CL1
